Description

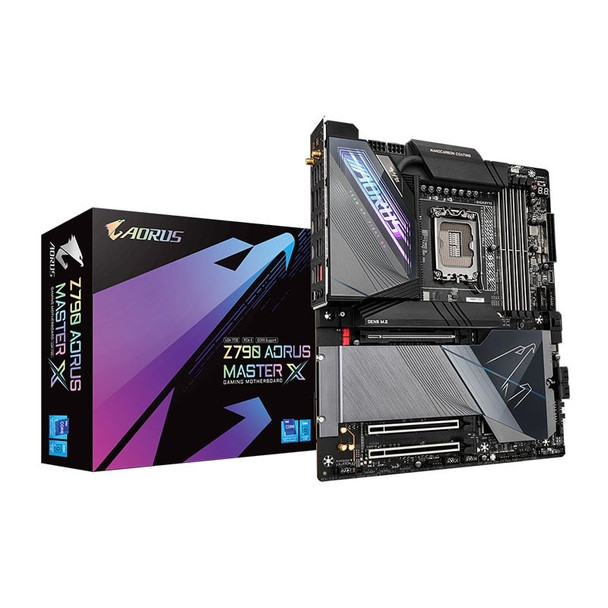

Gigabyte Z790 AORUS MASTER X DDR5 LGA 1700 E-ATX Motherboard Z790 AORUS MASTER X
| · Digital direct 20+1+2 phases VRM solution |
| · Dual Channel DDR5:4*DIMMs with XMP 3.0 memory module support |
| · PCIe UD Slot X: PCIe 5.0 x16 slot with 10X strength for graphics card |
| · EZ-Latch Click:M.2 heatsinks with screwless design |
| · EZ-Latch Plus:PCIe 5.0 x16 slot & M.2 slots with quick release design |
X Gen Designed for Next Gen
X marks the next generation! Introducing the AORUS Z790 X Gen Motherboards, the most powerful platforms ever built for the next generation of Intel Core processors. With the leading performance in DDR5 memory, the upgraded DIY-friendly innovations, and the all-new BIOS redesigned as user-centered, the AORUS Z790 X Gen Motherboards are built to fully unleash the next-gen power.
OVERVIEW
1. 20*+1+2 Twin Digital VRM Design
- 8-Layer PCB
- Low Loss PCB
- 2X Copper PCB
- Premium Choke and Capacitor
*Power stage maximum current capacity is based on VCORE Phase.
2. Intel Core™ 13th Processors Support
3. UD Power Connector
- 24 pin ATX with UD Solid Pin
- 8+8 pin CPU with UD Solid Pin
- Stainless-steel shielding design
4. 4 x DIMMs, Dual Channel DDR5 with Memory UD Slot
5. 5 x M.2 Slots
- 1 x Gen 5 M.2 UD Slot
- 4 x Gen 4 M.2 Slots
6. Full-length PCIe slots
- 1 x PCIe 5.0 x16 with PCIe UD Slot X
- 1 x PCIe 4.0 x16 with PCIe UD Slot
7. Full-length PCIe slots
- 1 x PCIe 5.0 x16 with PCIe UD Slot X
- 1 x PCIe 4.0 x16 with PCIe UD Slot
8. 5 x M.2 Slots
- 1 x Gen 5 M.2 UD Slot
- 4 x Gen 4 M.2 Slots
9. Full-length PCIe slots
- 1 x PCIe 5.0 x16 with PCIe UD Slot X
- 1 x PCIe 4.0 x16 with PCIe UD Slot
10. UD Power Connector
- 24 pin ATX with UD Solid Pin
- 8+8 pin CPU with UD Solid Pin
- Stainless-steel shielding design
Memory
Xceed in DDR5 performance
AORUS is committed to enabling the unparalleled next-gen performance. That is why every Z790 AORUS MASTER X motherboard is engineered with industry-leading technologies to achieve the best-in-class DDR5 performance on the market.
DDR5 Overclocking Up to 8266 MT/s
*Memory overclocking and XMP support may vary. Please refer to the qualified vendor list (QVL) for details and note that product features may vary by model.
BIOS Engineering
Feature-rich BIOS functions that enable easy access to the best-in-class DDR5 performance.
- DDR5 XMP Booster one click to auto boost your DDR5 module by the highest profile
- DDR5 Auto Booster one click to boost native DDR5-5600 to 6000
- High Bandwidth one click to increase DDR5 bandwidth
- Low Latency one click to shorten DDR5 latency
- XMP 3.0 User Profile optimizes memory settings and achieve the best performance for the system
Hardware Craftsmanship
- Maximize DDR5 performance with our advanced technology for an unparalleled gaming experience.
- Shielded Memory Routing
- Isolated Memory Routing
- 8-layer Server-grade PCB
- Back Drilling Technology
Robust VRM Design
Xtraordinary power delivery
The Z790 AORUS MASTER X motherboard is equipped with the all-digital power design to achieve peak performance of the next-gen processor while providing the best stability under heavy workloads.
Digital Direct VRM Design
Ensures stable high-power delivery for advanced overclocking.
20 VCORE Phases 105A SPS to unleash full potential of multi-cores CPU performance
1 VCCGT Phase 105A SPS for CPU integrated GPU performance
2 VCCAUX Phases provide stable power for CPU integrated PCIe & Memory controller
Efficient Overall Thermal
Xpress your cool
Every Z790 AORUS MASTER X motherboard is armored with the most advanced, full metal thermal design. These solid heatsinks are forged to keep your system cool while running fast.
VRM Thermal Armor Fins-Array
These solid heatsinks are forged to keep your system cool.
- 10x more surface area
- 10% lower temperature
M.2 Thermal Guard XTREME
with M.2 Thermal Guard Backplate
* Test results are for reference only and may vary in different circumstances.
- 50X more heat dissipation surface than conventional heatsink
- 50°C cooling down temperature when Running Gen 5 SSD at full speed
Small Vents, Big Cooling Power
* Test results are for reference only and may vary in different circumstances.
Up To 7°C lower temperature
M.2 Thermal Guard Ext.
with M.2 Thermal Guard Backplate
4x M.2 slots coverage
Smart Fan6
Cool. Quiet. Customized.
DIY-friendly Innovations
Xpeditious building process
Building your own PC is meant to be joyful and effortless. Now we introduce a variety of innovations to make the Z790 AORUS MASTER X motherboard the most DIY-friendly ever.
PCB Crafting
Xtra layers for excellent players
As the very foundation of the motherboard, the PCB plays a subtle yet critical role in the capabilities. No gamers should overlook the details lie within the PCB layers.
8-Layer PCB
Enables dense integration, signal quality, power integrity, and low EMI for high-performance systems.
2X Copper Enhancement
Enhances system performance with improved heat dissipation, power handling, and seamless overclocking support.
56% Lower Dissipation Factor
Elevate signal integrity in high-frequency circuits with our pioneering technology, setting a new standard for high-speed electronic design.
Ultra Durable™
Xpect everything UD
GIGABYTE Ultra Durable™ Technology represents our highest standards to provide a platform for gamers that is not only powerful but also durable and reliable. The Z790 AORUS MASTER X motherboard is built to last longer and stand stronger.
Connectivity
Xtensively versatile
The Z790 AORUS MASTER X motherboard offers a wide range of versatilities from the cutting-edge Wi-Fi 7 support with a redesigned antenna, to an array of USB ports.
Seamless Connectivity
- Wi-Fi 7
- Ultra-high Gain Antenna
- 10GbE LAN
True High-Fidelity Music
Audiophile Grade Capacitors
Audiophile Grade Capacitors
Intuitive Customization
Xplore infinite utilities
The Z790 AORUS MASTER X motherboard is the embodiment of our relentless pursuit of BIOS optimization. And thanks to our new partnership from the community, we now make the next-gen performance more accessible in even more intuitive ways.
