Description

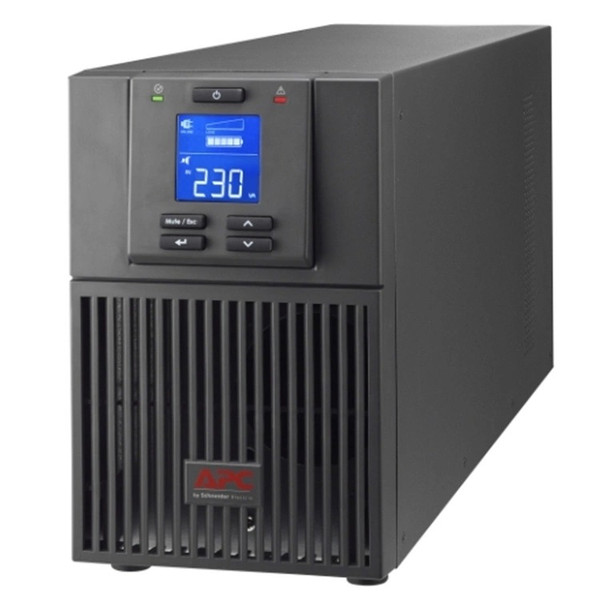

APC Easy UPS 1 Phase Online
For IT professionals in small to medium businesses, Easy UPS Online provides basic power protection in unstable power conditions, ensuring consistent and reliable connectivity at the most critical moments.
APC Easy UPS Online is a versatile, highquality, cost competitive UPS developed to handle a wide voltage range and inconsistent power conditions, delivering the quality millions of IT professionals around the world trust.
That's Certainty in a Connected World.
Extended Runtime Models Available
Add external battery packs to scale runtime from minutes to hours, fulfilling the needs of long runtime applications
ECO Mode / Green Mode
Energy saving mode allows input voltage regulation range to be be set/modified through the LCD display
Generator Compatible
Ensures clean, uninterrupted power to the loads during an extended power outage
High Power Factor
More real output power in watts: 0.8 PF for 1, 2 & 3 kVA, unity PF for 6 & 10 kVA
Environmentally Robust
Conformal coated
Intelligent Battery Management
Maximizes battery performance through intelligent precision temperature compensated charging
Overvoltage Cutoff Device Protection
Under special application with high voltage condition, OVCD protection will prevent the damage of UPS components and extend UPS lifespan
Input Power Factor Correction
Minimizes installation costs by enabling the use of smaller generators and cabling
Excellent Power Quality and Performance
True Double Conversion provides tight voltage, frequency regulation and zero transfer time for reactive loads
Wide Input Voltage Range
60% Load: 110-300VAC (applicable to 6 & 10 kVA models) Allows for unstable power environments and minimizes transfer to battery
USB Port / Serial Port
Provides management of the UPS via USB/serial communication
Flash Upgradeable Firmware
Allows for field updates of firmware via communication ports
LCD/LED Display
Intuitive interface provides detailed and accurate information about UPS status withability to configure locally
Power Conditioning
Protects connected loads from surges, spikes, lightning and other power disturbances
Built-in Automatic Bypass
Ensures seamless power to the load even in the event of catastrophic UPS failure
Emergency Power Off (EPO)
Immediately remove power to all connected equipment in the event of emergency (applicable to standard & extended runtime 6 & 10 kVA models)
Safety Agency Approved
Tested and approved to work with the connected service provider equipment and within the specified environment
230 V
220 V
240 V
230 V
220 V
240 V
800 W
1000 VA
IEC 60320 C14
3 IEC 60320 C13
1.50 m
1
1 IEC 60320 C13 to Schuko power cable
1 IEC 60320 C13 to C14 power cable
1 USB cable
1 RS-232 configuration cable
User manual
4 min
0
0
No
Black (RAL 7010)
22.3 cm
14.5 cm
28.8 cm
9.3 kg
Front
Floor
No preference
Not rack-mountable
Yes
Vertical
110 - 285 V half load
160 - 280 V full load
40 - 70 Hz auto-sensing
1000 VA
800 W
50/60 Hz +/- 3 Hz sync to mains
3%
Double conversion online
Sine wave
88% (full load)
Configurable for 220 : 230 or 240 nominal output voltage
Internal bypass (automatic and manual)
3 : 1
