APC

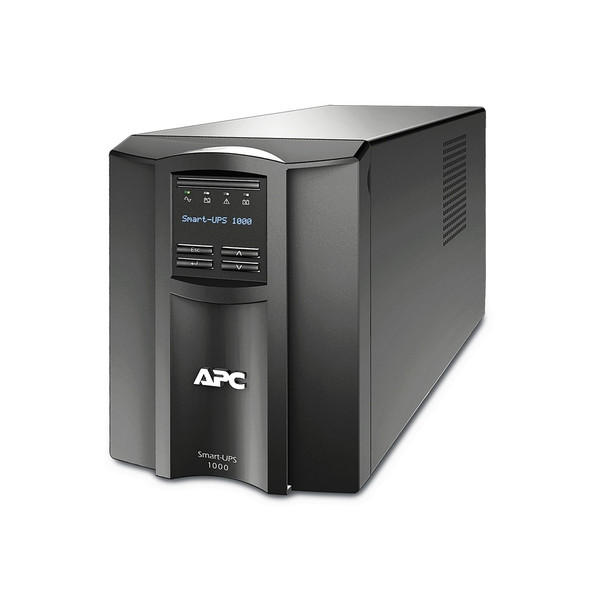

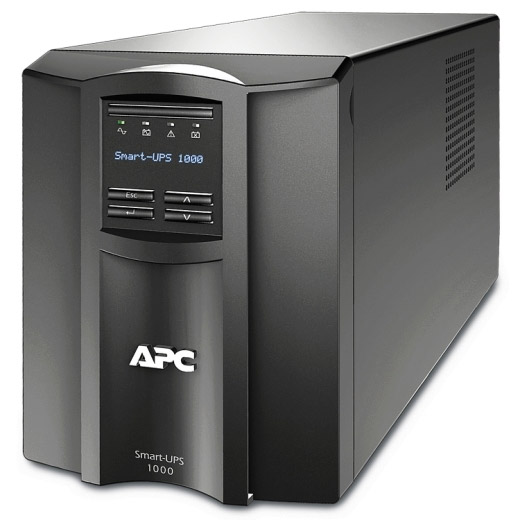

APC SMT1000IC Smart-UPS 1000VA/700W Sinewave UPS with SmartConnect


(No reviews yet) Write a Review
SKU:
UPSAPCSM1000
MPN:
SMT1000IC
Auckland Stock:
0
$1,489.00

online great rate loans from $500 with

Out of stock

Description

APC SMT1000IC Smart-UPS 1000VA/700W Sinewave UPS with SmartConnect

Intelligent and efficient network power protection from entry level to scaleable runtime. Ideal UPS for servers, point-of-sale, routers, switches, hubs and other network devices.

Includes: Cat 5 ethernet cable, CD with software, Documentation CD, Installation guide, USB cable

Cold-start capable

Provides temporary battery power when the utility power is out.

Energy meter

Provides actual kilowatt hours of usage for energy conscious users.

Green mode

Patent-pending operating mode that bypasses unused electrical components in good power conditions to achieve very high operating efficiency without sacrificing any protection.

High online efficiency

Reduces utility costs, generates less heat.

Intuitive LCD interface

Provides clear and accurate information in multiple languages with the ability to configure the UPS locally with easy to use navigation keys.

Predictive replace battery date

Dynamically provides the month and year when battery replacement is recommended to aide in long term maintenance planning.

Pure sine wave output on battery

Simulates utility power to provide the highest degree of compatibility for active PFC (power factor corrected) servers and sensitive electronics.

Single switched outlet group

Single outlet group that may be controlled separately from the UPS for discrete reboot of hung devices, sequenced on/off and non-critical load shedding.

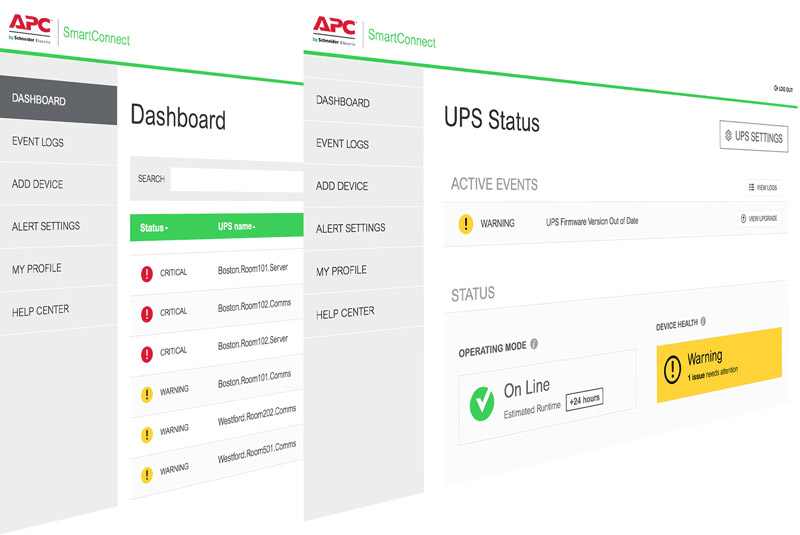

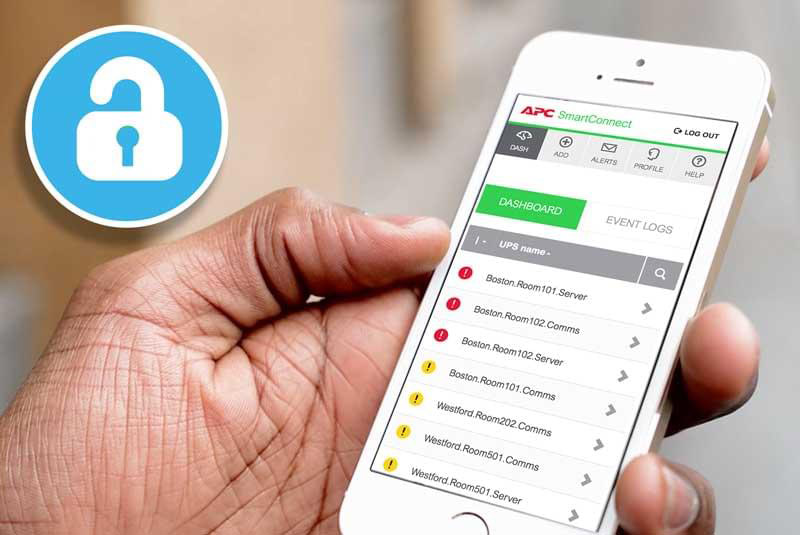

SmartConnect

Innovative, easy to use remote monitoring feature that provides automatic notifications, firmware updates, and advanced support services.

SmartSlot

Customize UPS capabilities with management cards.

Temperature-compensated battery charging

Prolongs battery life by regulating the charge voltage according to battery temperature.

Output

Output power capacity

700Watts / 1.0kVA

Max Configurable Power (Watts)

700Watts / 1.0kVA

Nominal Output Voltage

230V

Output Voltage Note

Configurable for 220 : 230 or 240 nominal output voltage

Output Voltage Distortion

Less than 5%

Output Frequency (sync to mains)

50/60Hz +/- 3 Hz

Other Output Voltages

220, 240

Topology

Line Interactive

Waveform type

Sine wave

Output Connections

(8) IEC 320 C13 (Battery Backup)
(2) IEC Jumpers (Battery Backup)

Transfer Time

6ms typical : 10ms maximum

Input

Nominal Input Voltage

230V

Input frequency

50/60 Hz +/- 3 Hz (auto sensing)

Input Connections

IEC-320 C14

Input voltage range for main operations

160 - 286V

Input voltage adjustable range for mains operation

151 - 302V

Other Input Voltages

220, 240

Batteries & Runtime

Battery type

Maintenance-free sealed Lead-Acid battery with suspended electrolyte : leakproof

Typical recharge time

3hour(s)

Replacement Battery

APC Replacement Battery Cartridge #6

Expected Battery Life (years)

3 - 5

RBC Quantity

1

Runtime

Full load (700 Watts) - 5.8 min
Half load (350 Watts) - 19.1 min

Communications & Management

Interface Port(s)

SmartSlot, USB

Control panel

Multi-function LCD status and control console

Audible Alarm

Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm

Emergency Power Off (EPO)

Optional

Available SmartSlot™ Interface Quantity

1

Surge Protection and Filtering

Surge energy rating

459Joules

Filtering

Full time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : meets UL 1449

Physical

Maximum Height

219MM, 21.9CM

Maximum Width

171MM, 17.1CM
