Description

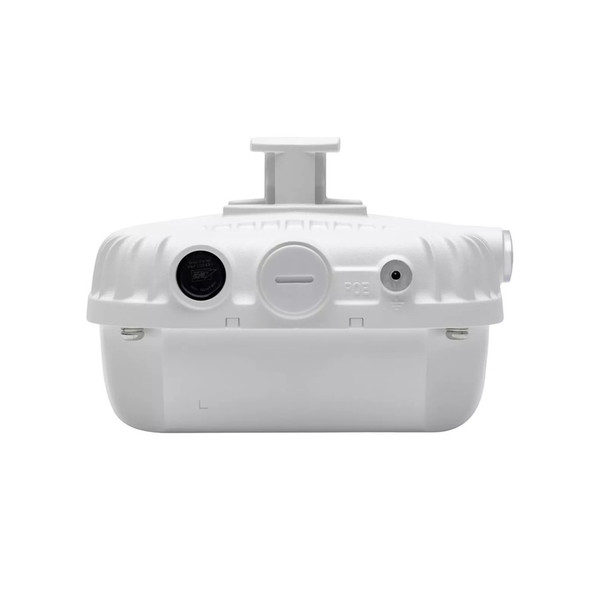

Aruba JX966A AP-365 (RW) Ourdoor Wireless Access Point
Aruba AP-365 (RW) 802.11n/ac Dual 2x2:2 Radio Integrated Omni Antenna Outdoor AP
Aruba 360 Series Outdoor Access Points provide cost-effective wireless connectivity to mobile and IoT devices in a wide range of outdoor and warehouse environments. The Aruba 360 Series can withstand exposure to high and low temperature extremes and wind speeds up to 165 mph It can tolerate persistent moisture, precipitation, dust, and salt sprays for extended periods of time. All electrical interfaces include industrial-strength surge protection. With a maximum aggregate data rate of 1.2 Gbps (1.167 Gbps), the Aruba 360 Series comes with multi-user MIMO (MU-MIMO), 4 spatial streams (4SS), and optional 160MHz channel bandwidth (VHT160) to quickly add performance and capacity to existing or wireless networks.
- Deliver gigabit speed Wi-Fi to outdoor and extreme environments.
- Provide up to 1.2 Gbps maximum of wireless throughput.
- Provide visibility into over 3,000 applications with no added hardware.
- IoT-ready with integrated Bluetooth Low Energy radio.
Simple and Secure Access
- Aruba 360 Series Outdoor Access Points include a built-in Policy Enforcement Firewall for Layer 7, deep packet inspection and role-based policy enforcement for each new client on the network.
- The Aruba 360 Series includes a hardware-based Trusted Platform Module for storage of credentials, keys, and booting with enhanced security.
- Utilizes Aruba ClearPass Policy Manager for centralized policy management.
IoT-ready
- Aruba 360 Series Outdoor Access Points include an integrated Aruba Bluetooth Low Energy beacon to provide enhanced IoT connectivity options.
- The built-in BLE beacon enables Meridian location and mobile engagement services. Select third-party Bluetooth infrastructure is also supported.
Extreme Weather Resiliency
- Aruba 360 Series Outdoor Access Points are able to survive in harsh outdoor environments, withstanding exposure to high and low temperature extremes.
- The Aruba 360 Series can also withstand wind speeds of up to 165 mph and tolerate persistent moisture, precipitation, and dust and salt sprays for extended periods of time.
- All electrical interfaces include industrial-strength surge protection.
General
Device Type
Wireless access point
Ruggedized Design
Outdoor
Width
6.5 in
Depth
6.5 in
Height
4.3 in
Weight
28.22 oz
Networking
Form Factor
External
Connectivity Technology
Wireless
Line Coding Format
CCK, 64 QAM, 256 QAM, BPSK, QPSK, 16 QAM
Data Link Protocol
IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac
Spread Spectrum Method
OFDM, DSSS
Frequency Band
2.4 GHz, 5 GHz
Performance
Maximum data rate (2.4 GHz): 400 Mbps | Maximum data rate (5 GHz): 866 Mbps | Aggregate throughput: 1.27 Gbps
Status Indicators
Power, system
Features
Auto-uplink (auto MDI/MDI-X), DFS support, reset button, 2T2R MIMO technology, Adaptive Radio Management (ARM), Maximum Ratio Combining (MRC), Low Density Parity Check (LDPC), Transmit Beam-forming (TxBF) ready, Cyclic Delay Diversity (CDD), Space Time Blocking Code (STBC), Advanced Cellular Coexistence (ACC), ClientMatch, MU-MIMO technology, Aruba Beacons Bluetooth Low-Energy (BLE) technology, packet aggregation A-MPDU, packet aggregation A-MSDU
Compliant Standards
IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.3az, IEEE 802.11ac
Antenna
Antenna
Internal
Antenna Qty
2
Directivity
Omni-directional
Expansion / Connectivity
Interfaces
1 x 1000Base-T - RJ-45 | 1 x console
Miscellaneous
Compliant Standards
EN 60950, IEC 60950, UL 60950, CB, FCC, IEC 60068-2-27, IEC 60068-2-6, EN 60601-1-2, cTUVus, IP67, IEC 60068-2-64, IP66, EN 300 328, EN 301 489, EN 60601-1-1, LVD 72/23/EEC, CE/EMC, EN 301 893, R&TTE Directive 1995/5/EC
Power
Power Consumption Operational
12.5 Watt
Environmental Parameters
Min Operating Temperature
-40 °F
Max Operating Temperature
131 °F
Humidity Range Operating
5 - 95% (non-condensing)
