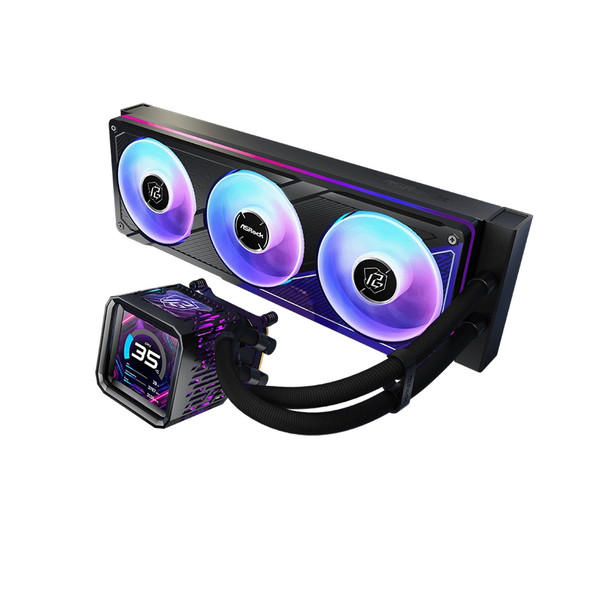

ASROCK Phantom Gaming 360 LCD AIO PG360 Liquid CPU Cooler

ASROCK Phantom Gaming 360 LCD AIO PG360 Liquid CPU Cooler 90-APGA36-BAAGA5

PRODUCT BRIEF:
3.4” Full-Color LCD Display
3-Phase 6-Slot Pump
Dual-inlet Cooling Path
360° Halo ARGB Fan
High-performance FDB Fans
RGB Lighting Ecosystem
0dB Silent Cooling
IIR+EPDM Tubing
Effortless Installation
High Conductivity Thermal Grease
Reliable 6-Year Warranty

The Phantom Gaming AIO liquid cooler embodies the explosive spirit of performance and style. With a 3.4" LCD display, vivid ARGB lighting, and performance-optimized cooling design, it unleashes raw power and dynamic visual energy to elevate every build.

FAST MYSTERIOUS UNBEATABLE
Phantom Gaming is designed by gamers and for gamers! Underneath its relentless appearance lie plentiful gaming oriented features and excellent gaming capabilities. It’s all about bringing a new gaming experience to gamers!

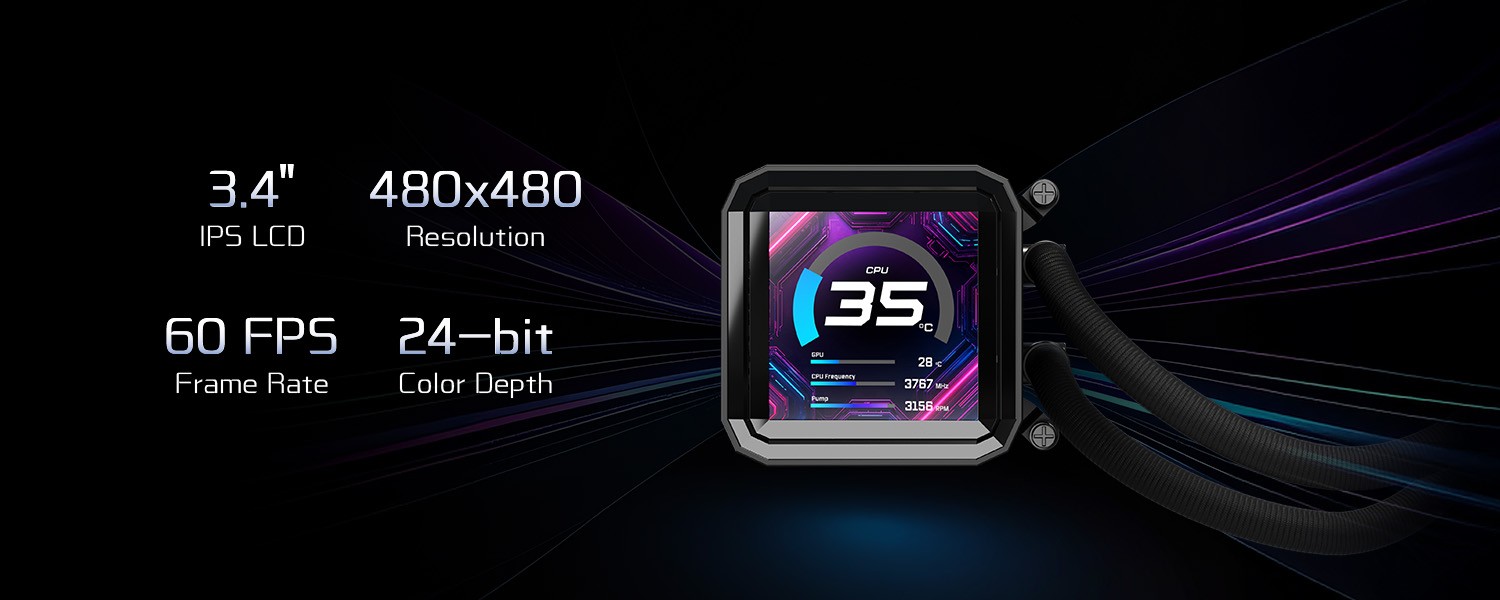

A 3.4" full-coverage LCD brings your system stats and custom visuals to life in vibrant detail.

Combines real-time monitoring with customizable visuals, letting users display system stats, preferred images, or animations — all through an intuitive interface with multi-language support.

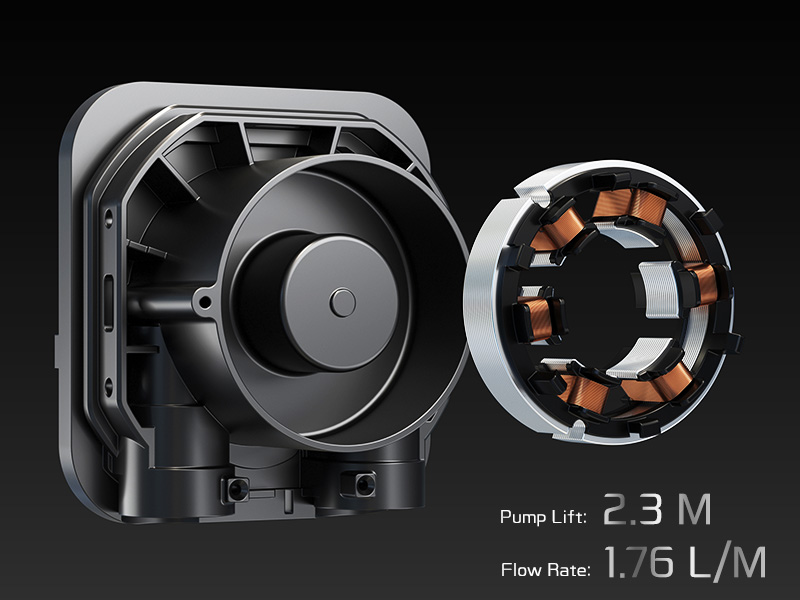

Precision-engineered structure and automotive-grade components, powered by a 3-phase, 6-slot, 4-pole motor for stronger flow, extended durability, and peak cooling performance for unwavering CPU stability.

Next-Gen Cooling System
Continuous Magnetic Field:
Continuous rotating magnetic field for higher energy conversion efficiency.
Next-Gen Cooling System
Low Torque Ripple:
Low torque ripple ensures smooth and stable operation.
Next-Gen Cooling System
Balanced Current Load:
Balanced current distribution minimizes copper loss.
Next-Gen Cooling System
Reduced Core Loss:
Reduced core loss improves overall operating efficiency.
Next-Gen Cooling System
Lower Thermal Output:
Lower thermal output maintains efficiency during prolonged operation.
Next-Gen Cooling System
Simplified Motor Architecture:
No starting capacitors or coils required, improving reliability.

The dual-side inlet cooling path design shortens coolant flow distance while ensuring balanced distribution across the high-density micro-fin array. By delivering coolant directly to the CPU hot spot from multiple directions, the design helps keep temperatures more even and improves overall thermal efficiency.

A 32mm-thick radiator maximizes heat dissipation and cooling efficiency, while 7mm reinforced tubing increases coolant volume for superior thermal performance.

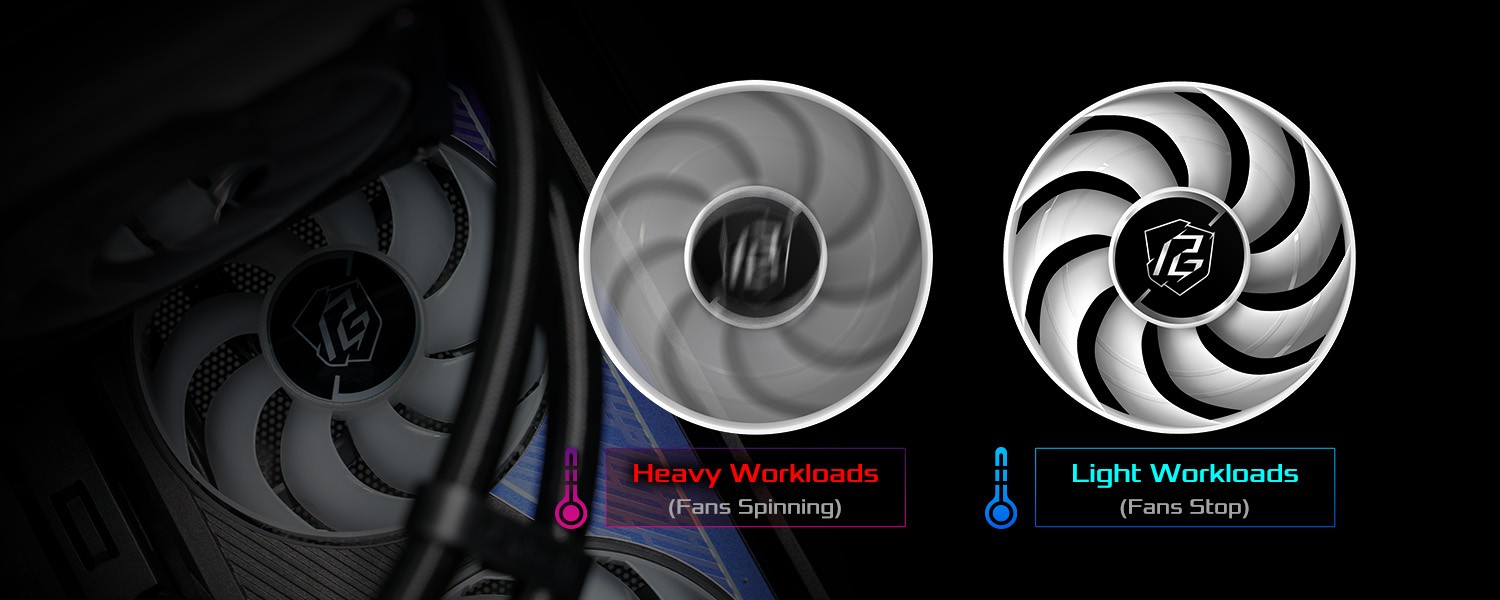

Fan stops completely under low load for absolute silence and extended lifespan.

• Model Number
  90-APGA36-BAAGA5
• Compatibility
  AMD: AM5, AM4
  Intel: LGA1851, 1700
• Water Block
  Dimension:(L)100.4 x (W)86 x (H)107.6 mm
  Material (Cold Plate):Copper
  LEDs :ARGB
• Radiator
  Dimension:(L)397 x (W)120 x (H)32 mm
  Material:Aluminum
• Pump
  Speed:1200 - 3100 ± 10% RPM
  Current/ Voltage:0.38A/ 12V
  Connector:PWM (4-Pin)
• VRM Fan
  Dimension:(L)70 x (W)70 x (H)25 mm
  Speed:(Max.) 3000 ± 10% RPM
  Connector:PWM (4-Pin)
  Current/ Voltage:0.12A/ 12V
• Radiator Fan
  Dimension:(L)362 x (W)123 x (H)28 mm
  Speed:0 - 2400 ± 10% RPM
  Air Flow:(Max.) 61.28 CFM
  Air Pressure:(Max.) 3.11 mmH20
  Noise:(Max.) 31.4 dB(A)
  Connector:PWM (4-Pin)
  Current/ Voltage:0.84A/ 12V
  Bearing:Fluid Dynamic Bearing
  LEDs :ARGB Gen1
• Screen
  Type:IPS LCD
  Size:3.4"
  Resolution:480 x 480
  Display Colors:24-bit
  Brightness:250 cd/m²
  Refresh Rate:60 Hz
  Frames Per Second (FPS):60 FPS
  Connector:USB Type-C to Motherboard 9-Pin
• Tubing
  Material:IIR + EPDM
  Length:450mm

• Warranty
  AIO Cooler Module:6 years
  Display Module:2 years
