Description

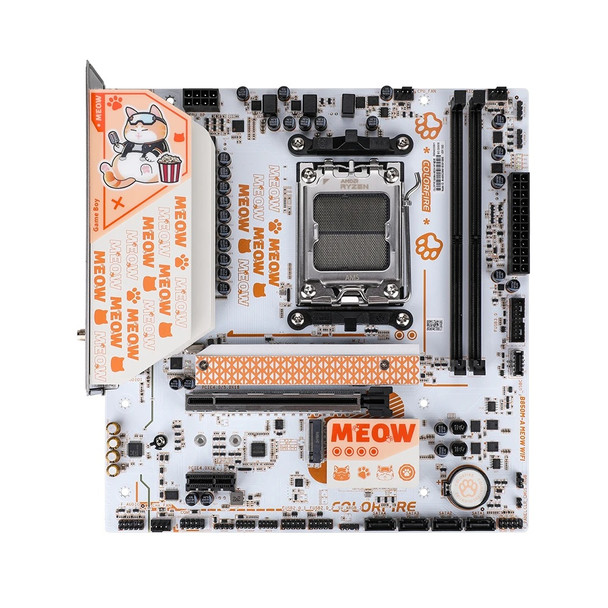

Colorful B850M-A MEOW WIFI ORANGE AM5 mATX Motherboard
Feature Highlights:
COLORFIRE series exclusive customized cute pet "orange cat" motherboard
COLORFIRE series customized frost heat dissipation armor, with full-coverage condenser to enhance heat dissipation
Adopt 7+2+1 phase enhanced power supply design, F.C.C ferrite inductor (Dr MOS 60A)
Provide 1 PCIe 5.0 x4 M.2 SSD and 1 PCIe 4.0 x4 M.2 SSD slot
Provide 2 USB 3.2 Gen 1 5Gbps Type-A high-speed rear interface
Equipped with Realtek 2.5G high-speed wired network card and WIFI 6E wireless network card, Bluetooth 5.3
Support iGame Center lighting control software, which can adjust the lighting effects of radiator, cooling fan and memory synchronously
I/O backplane supports one-click BIOS upgrade function
Six major protection technologies, more stable product operation
200 processes strictly tested, quality guaranteed
PCB atomization process fully upgraded
| Model | COLORFIRE B850M-A MEOW WIFI ORANGE |
|---|---|
| Product Series | COLORFIRE series |
| Chipset | AMD B850 |
| Processor | Supports AMD Ryzen 7000/8000/9000 series processors that fit the AMD AM5 slot of the motherboard (*Please visit the Colorful official website www.colorful.cn for the latest processor support list) |
| Memory | 2 DDR5 memory sockets are provided, which can support up to 96 GB of memory (a single socket can support up to 48 GB of memory) - Support DDR5-7200 (OC)/7000 (OC)/6800 (OC)/6600 (OC)/6400 (OC)/6200 (OC)/6000 (OC)/5800 (OC)/5600 (OC)/5400 (OC)/5200 (OC)/5000 (OC)/4800MHz memory - Support Extreme Memory Profile (XMP) memory technology - Support EXtended Profiles for Overclocking (EXPO) memory technology - Supports dual channel memory technology (* Please visit www.colorful.cn for the latest memory compatibility list) |
| SATA Ports | 2 M.2 slots and 4 SATA 6Gb/s hard disk interfaces, and supports creating RAID 0, RAID 1, RAID 10 RAID with SATA or M.2 NVMe hard disk devices - M.2_1 slot: supports 2242/2260/2280 M.2 SSD (PCIe 5.0/4.0 x4, CPU channel) - M.2_2 slot: supports 2242/2260/2280 M.2 SSD (PCIe 4.0 x4, PCH channel) (* Is it supported PCIe 5.0 is related to the CPU used with the motherboard) |
| Board I/O | Rear I/O : -4×USB 2.0 interfaces -2×USB 3.2 Gen 1 5Gbps Type-A interfaces -1×DP 1.2 interface, supporting up to 4K 60Hz resolution -1×HDMI 2.0 interface, supporting up to 4K 60Hz resolution -1×2.5G network interface -2×Wi-Fi 6E antenna interfaces -1 BIOS update button -3×Audio interfaces (audio input/audio output/microphone) Onboard device interface: -2×USB 2.0 pins can be expanded to 4 USB 2.0 Type-A interfaces -1×USB 3.2 Gen 1 pin can be expanded to 2 USB 3.2 Gen 1 5Gbps Type-A interfaces -1×USB 3.2 Gen 1 Type-C slot can be expanded to 1 USB 3.2 Gen 1 Type-C Interface -1×CPU fan pin -1 system fan pin -1×Water cooling pump pin -3×5V 3-pin ARGB pins -1×Front audio pin -1×Front panel pin -1×Speaker pin -1×Serial port pin -1×Clear CMOS jumper -1×BIOS burner pin -1×RGB lighting effect control jumper |
| Expansion Slots | 1 PCIe 5.0 x16 slot 1 PCIe 4.0 x1 slot |
| BIOS | 256M UEFI, support multiple languages |
| Power Management | Support S3/S4 wake-up, network S5 wake-up, support USB wake-up, support timing boot, call boot |
| Hardware Monitor | CPU fan speed is controllable, system fan speed is controllable, CPU temperature monitoring, system temperature monitoring, and each group of voltage monitoring |
| LAN | RTL8125BG 2.5Gbit network card, MediaTek MT7902-D Wi-Fi 6E wireless network card, Bluetooth 5.3 |
| Audio | Realtek ALC897 high fidelity decoding chip, Support up to 7.1 channels |
| Configuration | M-ATX 230mm x 220mm |
