Description

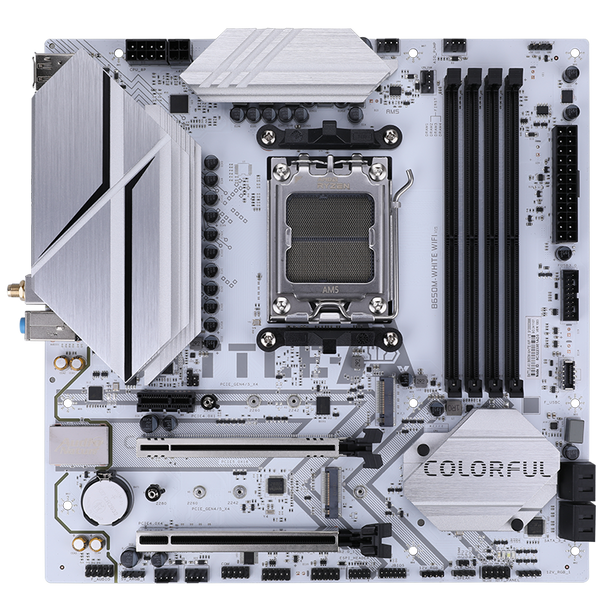

Colorful BATTLE-AX B650M-WHITE WIFI V15 AM5 mATX Motherboard
Feature Highlights:
Tomahawk series exclusive customized white motherboard
Tomahawk series customized frost cooling armor, with full-cover condenser to enhance heat dissipation
Adopt 10+2+1 phase enhanced power supply design, F.C.C ferrite inductor (Dr MOS 55A)
Provide 2 PCIe 5.0 x4 M.2 SSD slots
Provide 1 USB 3.2 Gen 1 5Gbps Type-C and 1 USB 3.2 Gen 2 10Gbps Type-A high-speed rear interface
Equipped with Realtek 2.5G high-speed wired network card and AX200 WiFi 6 wireless network card, support Bluetooth 5.2
Support iGame Center lighting control software, can synchronously adjust the lighting effects of radiator, cooling fan and memory
I/O backplane supports one-click BIOS upgrade function
Six major protection technologies, product operation is more stable
200 processes are strictly tested, quality is guaranteed
PCB atomization process is fully upgraded
| Model | BATTLE-AX B650M-WHITE WIFI V15 |
|---|---|
| Product Series | BATTLE-AX series |
| Chipset | AMD B650 |
| Processor | Supports AMD Ryzen 7000/8000/9000 series processors that fit the AMD AM5 slot of the motherboard (* Please visit www.colorful.cn for the latest memory compatibility list) |
| Memory | 4 DDR5 memory sockets are provided, which can support up to 192 GB of memory (a single socket can support up to 48 GB of memory) - Support DDR5-6800 (OC)/6600 (OC)/6400 (OC)/6200 (OC)/6000 (OC)/5800 (OC)/5600 (OC)/5400 (OC)/5200 (OC)/5000 (OC)/4800MHz memory - Support Extreme Memory Profile (XMP) memory technology - Support EXtended Profiles for Overclocking (EXPO) memory technology - Supports dual channel memory technology (* Please visit www.colorful.cn for the latest memory compatibility list) |
| SATA Ports | 2 M.2 slots and 4 SATA 6Gb/s hard disk interfaces, and supports creating RAID 0, RAID 1, RAID 10 RAID with SATA or M.2 NVMe hard disk devices - M.2_1 slot: supports 2242/2260/2280 M.2 SSD (PCIe 5.0/4.0 x4, CPU channel) - M.2_2 slot: supports 2242/2260/2280 M.2 SSD (PCIe 5.0/4.0 x4, CPU channel) (* Is it supported PCIe 5.0 is related to the CPU used with the motherboard) |
| Board I/O | Rear I/O : -4×USB 2.0 interfaces -2×USB 3.2 Gen 1 Type-A interfaces -1×USB 3.2 Gen 2 Type-A interface -1×USB 3.2 Gen 1 Type-C interface -1×DP 1.2 interface, supporting up to 4K 60Hz resolution -1×HDMI 1.4 interface, Supports up to 4K 30Hz resolution -1×2.5G network interface -2×Wi-Fi 6 antenna interfaces -3×Audio interfaces (audio input/audio output/microphone) -1×BIOS update button On board: -1×CPU fan pin -3×System fan pins -1×water cooling pump pin -2×USB 2.0 pins expandable 4 USB 2.0 Type-A interfaces -1×USB 3.2 Gen 1 pin expandable 2 USB 3.2 Gen 1 Type-A interfaces -1×USB 3.2 Gen 1 Type-C slot expandable 1 USB 3.2 Gen 1 Type-C interface -2×5V 3-pin ARGB pins -2×12V 4-pin RGB pins -1×Front audio pin -1×Front panel pin -1×Speaker pin -1×Clear CMOS jumper -1×COM port pin -1×BIOS burner pin -1×POST card pin |
| Expansion Slots | 1×PCIe 5.0 x16 slot 1×PCIe x16 slot (supports PCIe 4.0 x4 specifications) 1×PCIe 4.0 x1 slot |
| BIOS | 128M UEFI, support multiple languages |
| Power Management | Support S3/S4 wake-up, network S5 wake-up, support USB wake-up, support timing boot, call boot |
| Hardware Monitor | CPU fan speed is controllable, system fan speed is controllable, CPU temperature monitoring, system temperature monitoring, and each group of voltage monitoring |
| LAN | RTL8125BG 2.5Gbit LAN, AX200 WiFi 6 wireless network card, Bluetooth 5.2 |
| Audio | Realtek ALC897 high fidelity decoding chip, Support up to 5.1 channels |
| Configuration | M-ATX 245mm x 245 mm |
