Description
Features:
– High-Performance Wi-Fi 7 Router – Dual-band Wi-Fi 7 with up to 3.6 Gbps aggregate speed for gaming and streaming.
– Powerful Broadcom CPU – 2 GHz quad-core processor ensures stable performance under heavy traffic.
– 4-Stream Dual-Band Connectivity – Delivers 2882 Mbps (5 GHz) + 688 Mbps (2.4 GHz) for low-latency connections.
– Enhanced Wired Gaming Setup – Equipped with 5× Gigabit Ethernet ports for consoles, PCs, and TVs.
– Smart Management & Security – Supports VPN server and client, with app and cloud-based control.
Specification:
Model Version: WR3600 1.0
CPU: 2.0 GHz Quad-Core, ARM Cortex-A7
Flash / ROM: 128 MB (1 Gbit) NAND
RAM: 512 MB (4 Gbit) DDR3L
5 GHz Wi-Fi Speed: 2882 Mbps
2.4 GHz Wi-Fi Speed: 688 Mbps
5 GHz Wi-Fi Streams: 2T2R (2×2 MIMO)
2.4 GHz Wi-Fi Streams: 2T2R (2×2 MIMO)
Wi-Fi Antennas: 4 × Fixed
FEM / PA & LNA (5 GHz): 2 × External
FEM / PA & LNA (2.4 GHz): 2 × Internal

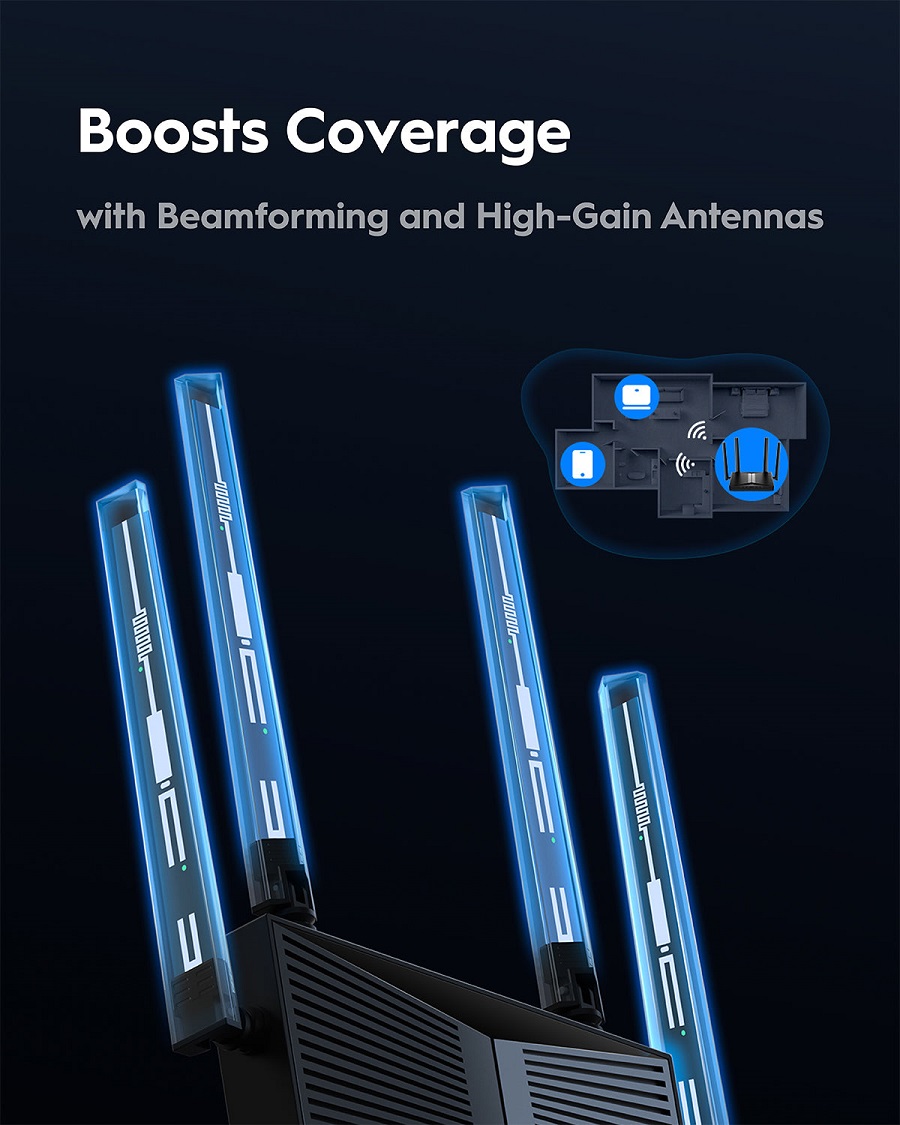

Beamforming: True
Max Wi-Fi Range: 220 m
Wall Performance: Two wooden walls (< 10 cm / 4″); One concrete wall (< 20 cm / 7″) or two concrete walls (< 10 cm / 4″)
Ethernet Ports: 5 × Gigabit RJ45
Ethernet Configuration: 1 × WAN, 4 × LAN
LED Indicators: Power, Internet, WAN, LAN, 2.4 GHz Wi-Fi, 5 GHz Wi-Fi
Buttons: WPS, Reset
Power Method: DC
Power Input: 12V ⎓ 1A
Power Adapter Input: 100–240V~, 50/60Hz
Power Adapter Output: 12V ⎓ 1A
Max Power Consumption: 9 W
Operating Temperature: 0 ℃ ~ 40 ℃
Storage Temperature: -40 ℃ ~ 70 ℃
Operating Humidity: 10% ~ 90% (non-condensing)
Storage Humidity: 5% ~ 95% (non-condensing)
Certifications: FCC, CE
Installation: Desktop, Wall-mount
Device Dimensions: 183.3 × 109 × 38 mm
Antenna Length (Each): 175 mm
Product Weight: 333.5 g
Package included:
1 * WR3600
1 * Power Adapter
1 * Ethernet Cable
1 * Installation Guide
