Description
Features:
– Next-Gen Wi-Fi 7 Performance – Dual-band Wi-Fi 7 with up to 3.6 Gbps total speed for ultra-fast home networking.
– 4-Stream Dual-Band Connectivity – Delivers 2882 Mbps (5GHz) + 688 Mbps (2.4GHz) for smooth multi-device usage.

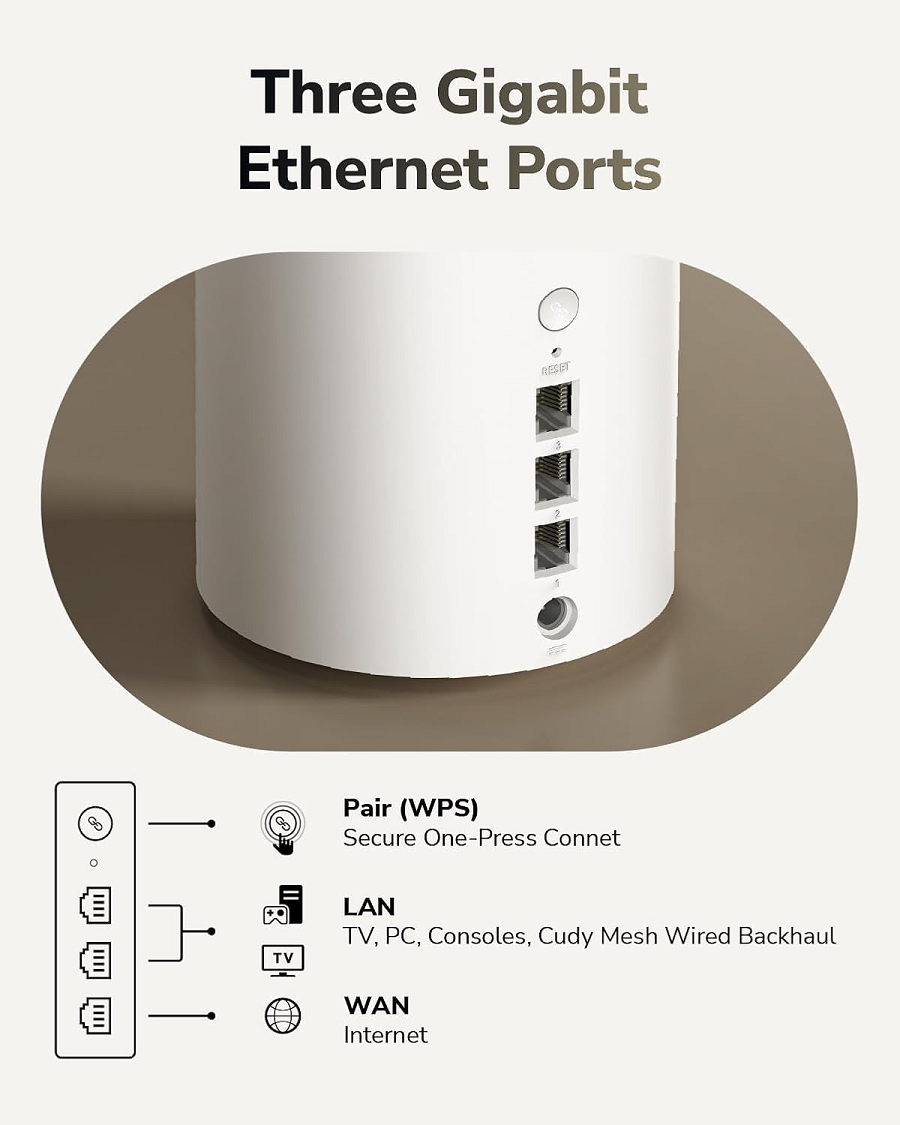

– Gigabit Wired Performance – Equipped with 3× Gigabit Ethernet ports for high-speed wired connections.

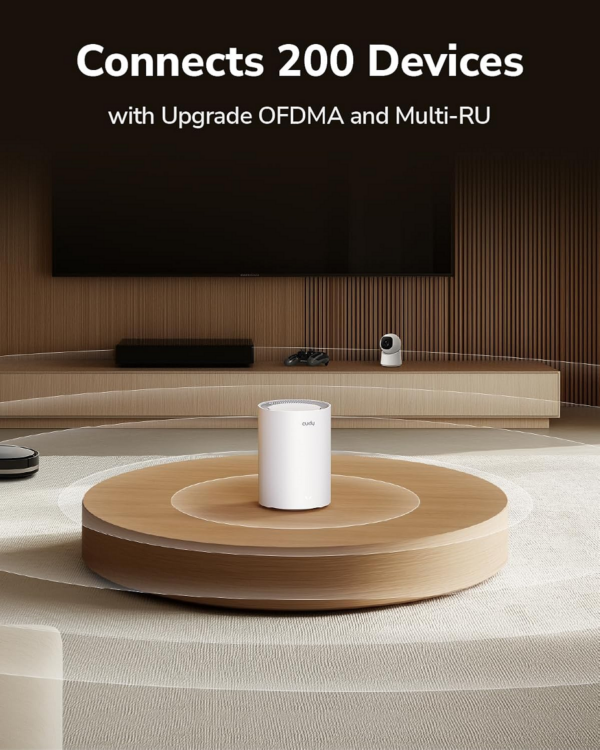

– Built for Large Homes – Supports up to 200 connected devices, ideal for smart homes and heavy traffic.

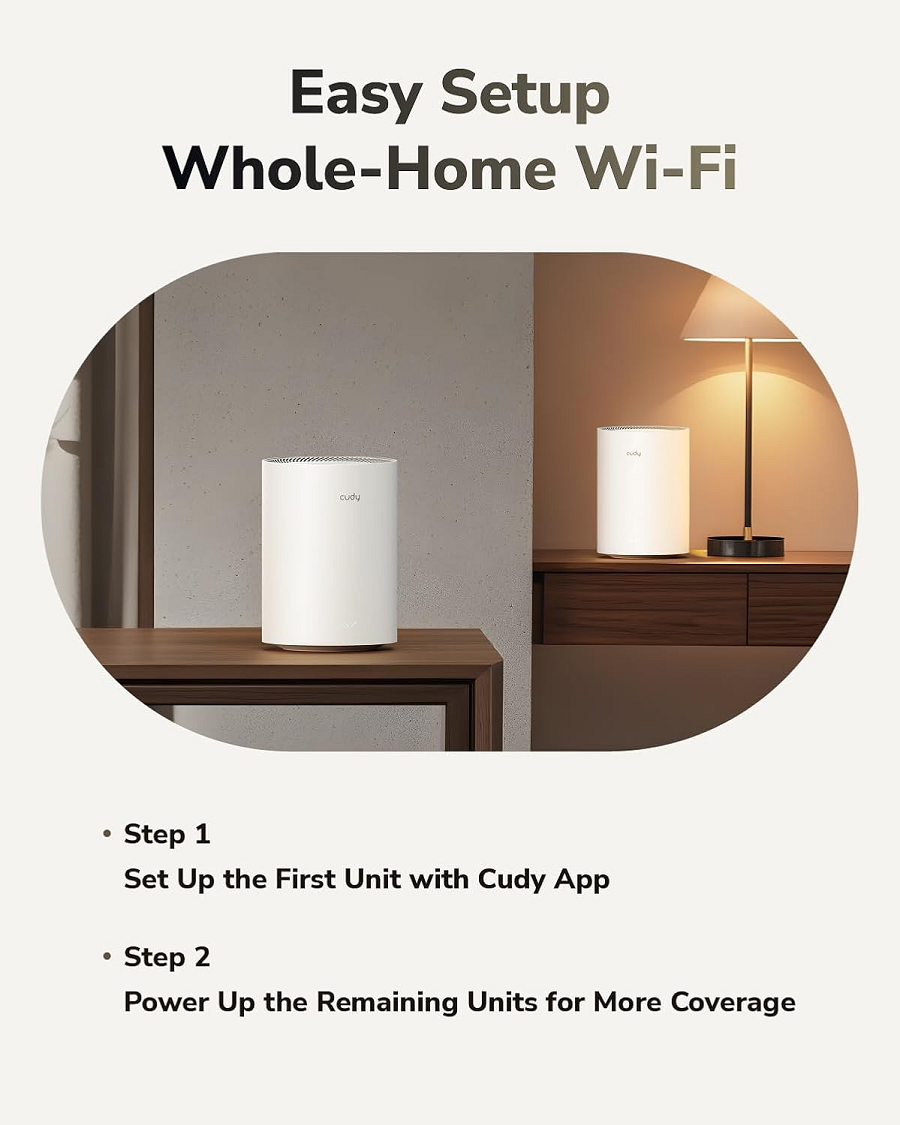

– Advanced Cudy Ecosystem – Features Cudy Mesh, VPN server & client, plus app and cloud management.
Specification:
Model Version: M3600 1.0
CPU: 2.0 GHz Quad-Core, ARM Cortex-A7
Flash / ROM: 128 MB (1 Gbit) NAND
RAM: 512 MB (4 Gbit) DDR3L
5 GHz Wi-Fi Speed: 2882 Mbps
2.4 GHz Wi-Fi Speed: 688 Mbps
5 GHz Wi-Fi Streams: 2T2R (2×2 MIMO)
2.4 GHz Wi-Fi Streams: 2T2R (2×2 MIMO)
Wi-Fi Antennas: 4 × Internal
FEM / PA & LNA (5 GHz): 2 × External
FEM / PA & LNA (2.4 GHz): 2 × Internal
Beamforming: True
Max Wi-Fi Range: 220 m

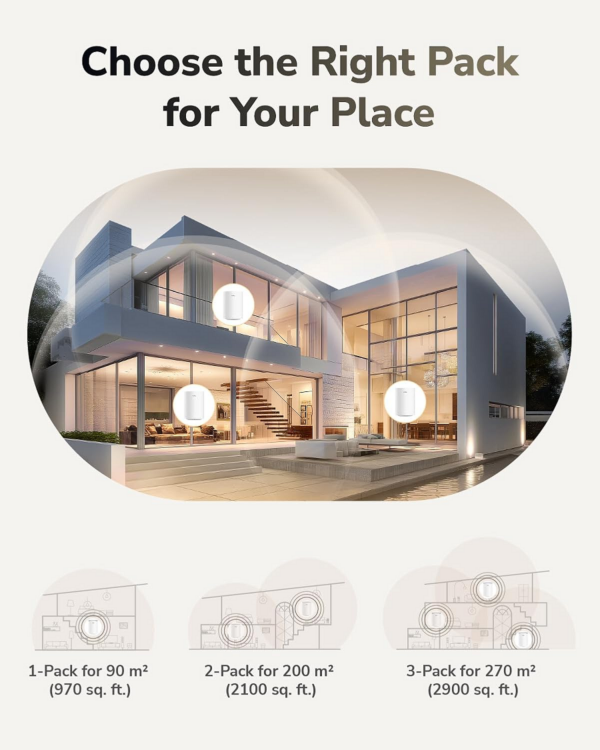

Indoor Coverage (2-Pack): 200 m²
Indoor Coverage (3-Pack): 270 m²
Ethernet Ports: 3 × Gigabit RJ45
WAN Port: 1
LAN Ports: 2
LED Indicators: System, Ethernet Speed / Link / Activity
Buttons: WPS, Reset
Power Input: 12V ⎓ 1A
Power Adapter Input: 100–240V~, 50/60Hz
Power Adapter Output: 12V ⎓ 1A
Max Power Consumption: 9 W
Operating Temperature: 0 ℃ ~ 40 ℃
Storage Temperature: -40 ℃ ~ 70 ℃
Operating Humidity: 10% ~ 90% (non-condensing)
Storage Humidity: 5% ~ 95% (non-condensing)
Certifications: FCC, CE
Installation: Desktop
Dimensions: 110 × 154.5 mm (4.33 × 6.08 in)
Product Weight: 357.6 g (12.61 oz.)
Package included:
1 * M3600
1 * Power Adapter
1 * Ethernet Cable
1 * Installation Guide
