Description

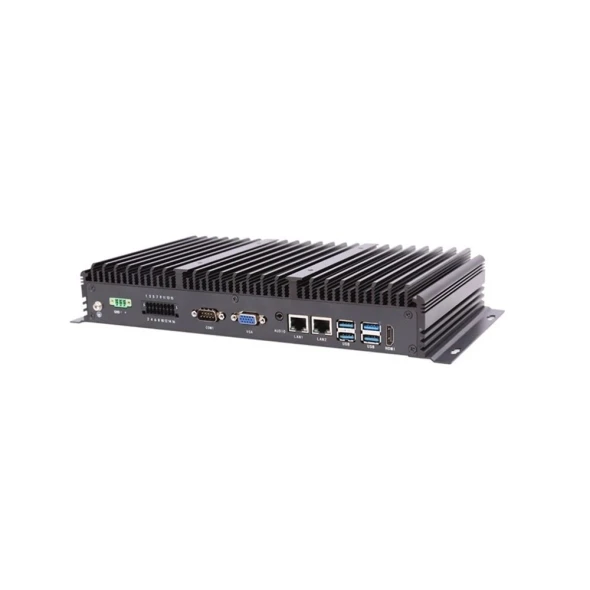

Embedded Industrial PC UPC-309EW i5-1235U 16GB 256GB Windows 10 IOT LTSC 2021 14x USB ports (10x USB 2.0 + 4x USB 3.0) 3x RS232 2x GbLAN 1x HDMI (incl Audio) built-in WiFi
Processor | CPU | Intel® i5-1235U Quad Core, 1.70-4.40 GHz 4M Cache, TDP 15W |
Cooling System | Fanless | |
Memory | 1x 16GB DDR4 SO-DIMM Sockets | |
Storage | 1x 256GB SSD | |
I/O ports | 14x USB-A Ports (4x USB 3.0 + 10x USB 2.0) | |
3x RS232, support 5V/12V, DB9 | ||
1xHDMI (1920*1200 @30Hz) | ||
1xVGA (1920*1200 @30Hz) | ||
Audio: 1x Line-out | ||
WIFI: Intel 8260AC, 2x2 Antenna, 2.4/5 GHz, 867Mbps Max Speed, WiFi 5 | ||
Network(LAN) | 2x Intel i211 10/100/1000Mbps Ethernet | |
Power Supply | Input Voltage | 12V DC (3 Pin Phoenix Connector) , optional 9V-36V DC |
Control SW | 1x Power SW, AT/ATX optional | |
OS Support | OS Support | Microsoft Windows 10 IOT |
Environment | Operating Temperature | 0℃～50℃ (extend temperature optional) |
Storage Temperature | -10℃～60℃ (extend temperature optional) | |
Mechanical | Dimensions | (W*D*H): 300x160x50mm |
Weight | N.W. 3.18KG | |
Color | Black | |
Material | High Strength Aluminum Alloy Front Panel | |
Certification | CE / UL / RoHS | |
Custom Service | Custom Service | Custom BIOS, System Encryption, Custom LOGO |
