Description

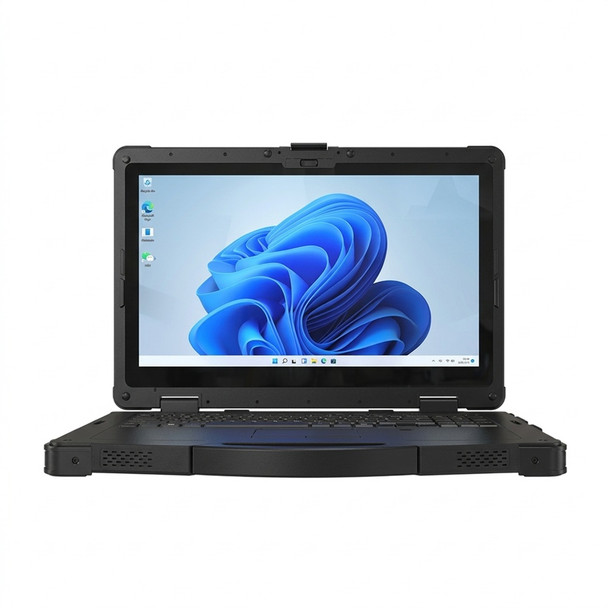

Emdoor EM-14M Touch Rugged AI Laptop U7-155H 32GB 1TB W11P
Basic parameters | |
| Dimension | 363.2 x 287.4 x 42.1mm |
| Weight | 2.97kg |
| Material | ABS+PC |
| Device Color | Black |
| LCD | 14 inch 16:9, 1920×1080, 1000 nits |
| Touch Panel | Optional 10-point capacitive screen,Hardness above 7H, Scratch-resistant，supports glove touch |
| Camera | Front 5.0MP |
| I/O | USB3.2 *1, USB3.0 *1，USB2.0 *1 TYPE-C, Supports Thunderbolt 4 ∮3.5mm Standard Earphone Jack *1 HDMI 2.0a mini *1 SIM card *1，TF card *1 RJ45*1 10M/100M/1000M self-adaptive， RJ45*1 10M/100M/1000Mself-adaptive(USB2.0), supports Gigabit Ethernet protocol RS232 *1, 9 fully functional lines DC19V/3.78A ∮5.5mm power interface *1 Anti-theft Lock Slot *1 Right-side Cooling Vent *1 Left-side expansion slot, optional M.2-2280 PCIe interface *1, supports SSD; Optional: M.2 E-KEY interface *1 for custom modules Optional: 12PIN Pogo Pin (USB & Charging) *1 |
| Power Adapter | AC100~240V, 19V/3.78A 71.82W output ANZ Standard |
| Data Collection | Fingerprint, built in, used for power-on login |
| US Layout Keyboard with Backlight | |
| Optional NFC | |
Battery | |
| Small Battery | Built-in Polymer Lithium-ion Battery, Non-removable 1300mah/11.1V (14.4WH) 1.5H (Default 50% volume, 200 lumens brightness, playing 1080P HD video) |
| Big Battery | Removable Li-polyment Battery, Hot-swappable 4850mah/11.55V（56WH） 8H (1080P video playing with system in balanced mode, 320nits screen brightness, 70db volume at 10cm, and WiFi/BT turned off) |
Performance parameter | |
| CPU | Intel® Core™ Ultra 7 processor 155H |
| OS | Windows 11 / 10 |
| Memory | RAM 32GB DDR5(4800MHz) ROM 1TB SSD |
Network connections | |
| WIFI | Wi-Fi 6 802.11a,b,d,e,g,h,i,k,n,r,u,v,w,ac,ax |
| Bluetooth | BT5.1(BLE) class 1 Transmission distance: 10m |
| 4G | 4G Optional M.2 European Standard LTE-FDD: B1/3/5/7/8/20/28 LTE-TDD: B38/40/41 |
| 5G | 5G Optional M.2 5G NR NSA n1/2/3/5/7/8/12/13/14/18/20/25/26/28/29/30/38/ 40/41/48/66/70/ 71/75/76/77/78/79/ SA n1/2/3/5/7/8/12/13/14/18/20/25/26/28/29/30/38/ 40/41/48/ 66/70/71/75/76/77/78/79 LTE LTE-FDD B1/2/3/4/5/7/8/12/13/14/17/18/19/20/25/26/ 28/29/30/32/66/71 LTE-TDD B34/38/39/40/41/42/43/48 LAA B46 UMTS WCDMA B1/2/4/5/8/19 |
| GNSS | Supports single GPS or single Glonass, default GPS |
Reliability | |
| Working Temperature | -20 °C ~ 60 °C |
| Storage Temperature | -30 °C ~ 70 °C |
| Humidity | 95% Non-Condensing |
| Rugged Feature | IP65 certified, MIL-STD-810H certified |
| Drop Height | 1.2m drop |
