Description

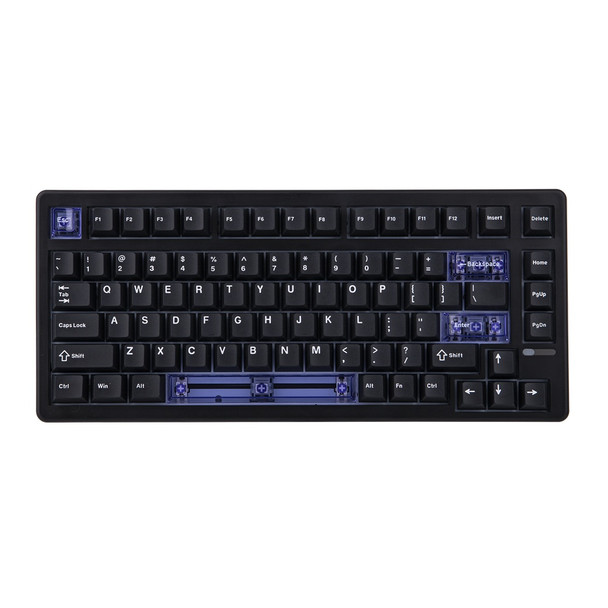

Epomaker HE80 Wired Mechanical Keyboard Black MagneX Switch
The HE80 Hall Effect keyboard combines adjustable 0.02mm actuation and creamy gasket-mount design with ultra-low latency, delivering precise, quiet keystrokes for competitive gaming and ergonomic comfort.
- 75% Compact Layout with 82 Keys
- Gaming Keyboard with Hall Effect Switch
- 8K Polling & 32K Scan Rate (0.125ms Ultra-Low Latency)
- Per-key Programmable RGB Backlight
- Creamy Gasket-Mount Design with 4 Layers of Sound Dampening Materials
75% Functional Layout
Maximize desk space for optimized desk space usage and enhanced typing comfort.
0.02mm Fast Trigger with Zero Dead Zone
Glide through complex patterns with unmatched fluidity and precision, as this hall effect keyboard handles complex maneuvers with rapid speed and accuracy.
8000 Polling & 32000 Scan Rate
Featuring top-tier chips and well-tuned magnetic switch, the HE80 magnetic keyboard promises 8000hz polling with 32000 Scan Rate.
Snap Key (SOCD) & Dynamic Keystroke (DKS)
SOCD prioritizes your latest key press of opposite directions, ensures your movement in gaming is executed in-time without your character freeze on the spot.
Adjustable Actuation and End Travel
Every millisecond counts in professional gaming, with programmable actuation and release travel.
Double-Shot PBT Keycaps
Crafted with double-shot molding, the legends and characters on HE80 keyboard remain vibrant and clear against daily wear.
Programmable RGB Backlight
Offering dozens of pre-saved light effects and per-key customizable light patterns, the HE80 RGB keyboard offers personalization and stunning typing joy.
Online EPOMAKER Driver
Customize key functions, actuation travel, macro or backlight across devices, OS system and space, with the chrome-based web software of HE80 that saves you the hassle of download.
Technical Specifications
Brand
EPOMAKER
Model
HE80 Wired Hall Effect Keyboard
Layout
75% Layout, US QWERTY
Number of Keys
82 Keys
Battery
No Battery
Connectivity
Wired Only (USB A to USB C)
Front Height
2.2cm
Typing Angle
6, 8.5 and 11.5 degree
Case Material
Plastic
Plate Material
FR4 Plate
Flex-Cut
No Flex-Cut
Stabilizers
Plate-Mount Stabilizer
Mounting Structure
Gasket-Mount
Sound Dampening
4 Layers of Paddings, including Latex Sandwich Foam, IXPE Switch Pad, Bottom Silicone and Bottom Foam
Keycaps Profile
Cherry Profile
Keycaps Material
PBT Keycap and Extra PC Transparent Keycap
Keycaps Manufacturing Technique
Double-Shot
Hot swappable
Yes, with other south-facing magnetic switch
RGB
Yes, per-key south-facing RGB backlight
Polling Rate
8000hz polling in wired mode
Scan Rate
32,000 scanning and 128,000 per-key scanning
Latency
0.125ms
Anti-Ghosting
Yes, HE80 supports N-Key Rollover
Compatibility
Mac/WIN/Android/Linux/PS4/PS5/Switch
Keyboard Dimensions
33.2*14.6*4.2cm
Keyboard Weight
0.83kg
Switch Specifications
Switch Name EPOMAKER MagneX Switch
Switch Type Magnetic Hall Effect Switch
Initial Force 30gf Min
Trigger Force 37±5gf
Bottom-out Force 45gf Max
Trigger Travel Adjustable per 0.02mm in EPOMAKER Web Driver
Total Travel 3.4±0.1mm
Initial Magnetic Flux (if PCB is 1.6mm thick) 90±10Gs
End Magnetic Flux (if PCB is 1.6mm thick) 550±55Gs
Material of Top Cover PC
Material of Bottom Base PC
Material of Stem POM
Spring Length 18mm
Lubed or Not Lubed in Factory
Life spans 1,000,000,000
