Description

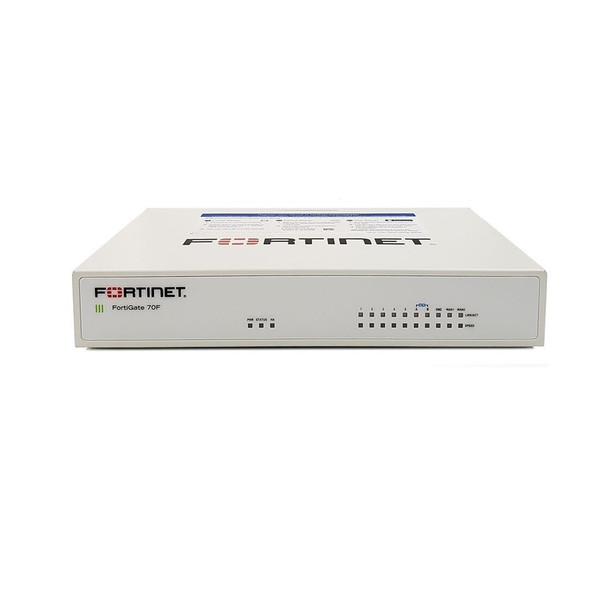

Fortinet FG-70F 10xGE RJ45/7xInternal/2xWAN Firewall
Welcome to the world of advanced networking with the FG-70F. This high-performance device is designed to meet the demands of modern businesses, providing seamless connectivity and robust security features. With 10 GE RJ45 ports, including 7 internal ports, 2 WAN ports, and 1 DMZ port, the FG-70F offers versatile connectivity options to support your network infrastructure.
Product Features
● Robust security features to protect your network from advanced threats
●High-performance throughput for fast and reliable data transmission
●Easy management through a user-friendly web-based GUI
●Flexible connectivity options with 10 GE RJ45 ports
●Supports advanced networking protocols for seamless integration
Product Applications●Small and medium-sized businesses
●Branch offices
●Remote sites
FG-70F Specifications | |
Hardware Specifications | |
GE RJ45 WAN / DMZ Ports | 2/1 |
GE RJ45 Internal Ports | 5 |
GE RJ45 FortiLink Ports (Default) | 2 |
Wireless Interface | — |
USB Ports | 1 |
Console (RJ45) | 1 |
Internal Storage | — |
Trusted Platform Module (TPM) | — |
Bluetooth Low Energy (BLE) | — |
Signed Firmware Hardware Switch | — |
System Performance* — Enterprise Traffic Mix | |
IPS Throughput | 1.4 Gbps |
NGFW Throughput | 1 Gbps |
Threat Protection Throughput | 800 Mbps |
System Performance and Capacity | |
Firewall Throughput (1518 / 512 / 64 byte UDP packets) | 10/10/6 Gbps |
Firewall Latency (64 byte UDP packets) | 2.54 ps |
Firewall Throughput (Packets Per Second) | 9 Mpps |
Concurrent Sessions (TCP) | 1.5 M |
New Sessions/Second | 35 000 |
Firewall Policies | 5000 |
IPsec VPN Throughput (512 byte) | 6.1 Gbps |
Gateway-to-Gateway IPsec VPN Tunnels | 200 |
Client-to-Gateway IPsec VPN Tunnels | 500 |
SSL-VPN Throughput | 405 Mbps |
Concurrent SSL-VPN Users (Recommended Maximum, Tunnel Mode) | 200 |
SSL Inspection Throughput (IPS, avg. HTTPS) | 700 Mbps |
SSL Inspection CPS (IPS, avg. HTTPS) | 500 |
SSL Inspectio n Con current Session (IPS, avg. HTTPS) | 100 000 |
Application Control Throughput (HTTP 64K) | 1.8 Gbps |
CAPWAP Throughput (HTTP 64K) | 8.5 Gbps |
Virtual Domains (Default / Maximum) | 10/10 |
Maximum Number of FortiSwitches Supported | 24 |
Maximum Number of FortiAPs (Total / Tunnel Mode) | 64/32 |
Maximum Number of FortiTokens | 500 |
