Description

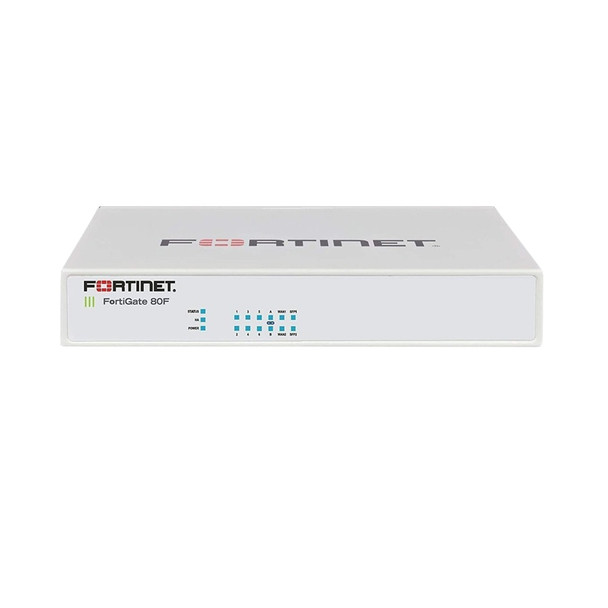

Fortinet FG-80F 8xGE RJ45/2xWAN SFP Firewall
The Fortinet FG-80F is an enterprise firewall engineered for secure branch and mid-sized business networks across Asia, Europe, Africa, and North America. It combines advanced threat protection, high-performance IPv4 firewall throughput, and integrated VPN to safeguard distributed users and cloud workloads. With low latency, strong SSL inspection figures, and support for up to 1.5 million concurrent sessions, this Fortinet firewall suits distributors, SMB integrators, and security-conscious end users building scalable, policy-driven perimeter or SD-WAN edge defenses.
FG-80F Specifications | |
Interfaces and Modules | FG-80F |
GE RJ45/SFP Shared Media Pairs | 2 |
GE RJ45 Internal Ports | 6 |
GE RJ45 FortiLink Ports (Default) | 2 |
GE RJ45 PoE/+ Ports | - |
GE RJ45 PoE/+ FortiLink Ports (Default) | - |
Bypass GE RJ45 Port Pair | - |
Wireless Interface | - |
USB Ports 3.0 | 1 |
Console (RJ45) | 1 |
Internal Storage | - |
Trusted Platform Module (TPM) | Yes |
Bluetooth Low Energy (BLE) | Yes |
Signed Firmware Hardware Switch | - |
System Performance-Enterprise Traffic Mix | |
IPS Throughput 2 | 1 . 4 Gbps |
NGFW Throughput 24 | 1Gbps |
Threat Protection Throughput 2,5 | 900 Mbps |
System Performance and Capacity | |
IPv4 Firewall Throughput(1518 / 512 /64 byte, UDP) | 10 / 10 / 7 Gbps |
Firewall Latency (64 byte, UDP) | 3.23 μs |
Firewall Throughput (Packet per Second) | 10.5 Mpps |
Concurrent Sessions (TCP) | 1.5 Million |
New Sessions/Second (TCP) | 45 000 |
Firewall Policies | 5000 |
IPsec VPN Throughput (512 byte)' | 6.5 Gbps |
Gateway-to-Gateway IPsec VPN Tunnels | 200 |
Client-to-Gateway IPsec VPN Tunnels | 2500 |
SSL-VPN Throughput | 950 Mbps |
Concurrent SSL-VPN Users(Recommended Maximum, Tunnel Mode) | 200 |
SSL Inspection Throughput(IPS,avg HTTPS)3 | 715 Mbps |
SSL Inspection CPS (IPS, avg.HTTPS)3 | 700 |
SSL Inspection Concurrent Session(IPS,avg HTTPS)3 | 100 000 |
Application Control Throughput(HTTP 64K)2 | 1.8 Gbps |
CAPWAP Throughput (HTTP 64K) | 9 Gbps |
