Description

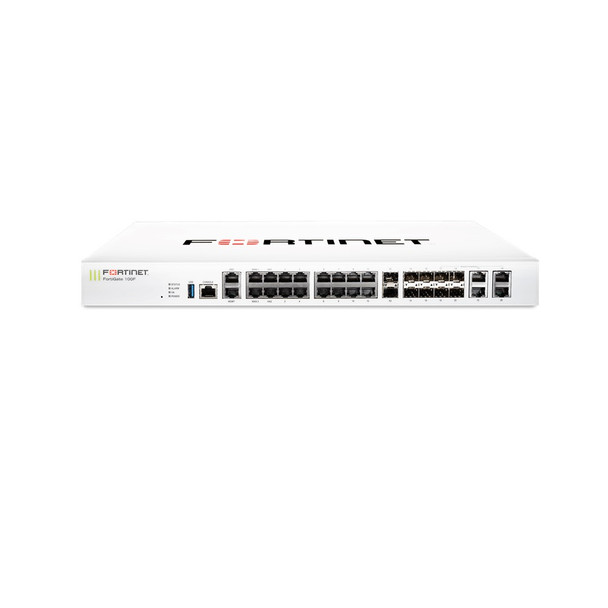

Fortinet FortiGate 100F Firewall 22x GE RJ45 ports (2x WAN, 1x DMZ, 1x Mgmt, 2x HA,16x Switch Ports with 4 SFP Port Shared Media), 4 SFP Ports, 2x 10G SFP+ FortiLinks, Dual Power Supplies Redundancy.
The FortiGate 100F series combines next generation firewall and SD-WAN capabilities for mid-sized to large enterprise distributed locations. Powered by purpose-built Secure SD-WAN ASIC, FortiGate 100F delivers optimal performance for business-critical applications along with best security effectiveness.
Security
- Identifies thousands of applications inside network traffic for deep inspection and granular policy enforcement
- Protects against malware, exploits, and malicious websites in both encrypted and non-encrypted traffic
- Prevent and detect against known and unknown attacks using continuous threat intelligence from AI powered FortiGuard Labs security services
Performance
- Delivers industry's best threat protection performance and ultra-low latency using purpose built-security processor (SPU) technology
- Provides industry-leading performance and protection for SSL encrypted traffic
Certification
- Independently tested and validated best security effectiveness and performance
- Received unparalleled third-party certifications from NSS Labs, ICSA, Virus Bulletin and AV Comparatives
Networking
- Best of Breed SD-WAN capabilities to enable application steering using WAN path control for high quality of experience
- Delivers advanced networking capabilities, high-performance, and scalable IPsec VPN capabilities to consolidate networking and security
Management
- Includes management console that's effective, simple to use, and provides comprehensive network automation & visibility.
- Provides Zero Touch Integration with Security Fabric's Single Pane of Glass Management
- Predefined compliance checklist analyzes the deployment and highlights best practices to improve overall security posture
Security Fabric
- Enables Fortinet and Fabric-ready partners' products to provide broader visibility, integrated end-to-end detection, threat intelligence sharing and automated remediation
- Automatically builds Network Topology visualizations which discover IoT devices and provide complete visibility into Fortinet and Fabric-ready partner product
Deployment - Next Generation Firewall (NGFW)
- Reduce complexity by combining threat protection security capabilities into single high-performance network security appliance
- Identify and stop threats with powerful intrusion prevention beyond port and protocol that examines the actual applications in your network traffic
- Delivers industry's highest SSL inspection performance using industry-mandated ciphers while maximizing ROI
- Proactively blocks newly discovered sophisticated attacks in real-time with advanced threat protection
Secure SD-WAN
- Secure direct Internet access for Cloud applications for improved latency and reduce WAN cost spending
- High-performance and cost-effective threat protection capabilities
- WAN Path Controller and Link Health Monitoring for better application performance
- Security Processor powered industry's best IPsec VPN and SSL Inspection performance
- Simplified Management and Zero-Touch deployment
Interfaces
1. USB Port
2. Console Port
3. 2x GE RJ45 MGMT/DMZ Ports
4. 2x GE RJ45 WAN Ports
5. 2x GE RJ45 HA Ports
6. 12x GE RJ45 Ports
7. 2x 10 GE SFP+ FortiLink Slots
8. 4x GE SFP Slots
9. 4x GE RJ45/SFP Shared Media Pairs
Additional Information
FG-100F Specification | |
Interfaces and Modules | |
Hardware Accelerated GE RJ45 Ports | 12 |
Hardware Accelerated GE RJ45 Management/ HA/ DMZ Ports | 1 / 2 / 1 |
Hardware Accelerated GE SFP Slots | 4 |
Hardware Accelerated 10 GE SFP+ FortiLink Slots (default) | 2 |
GE RJ45 WAN Ports | 2 |
GE RJ45or SFP Shared Ports * | 4 |
USB Port | 1 |
Console Port | 1 |
Onboard Storage | 0 |
Included Transceivers | 0 |
System Performance — Enterprise Traffic Mix | |
IPS Throughput 2 | 2.6 Gbps |
NGFW Throughput 2, 4 | 1.6 Gbps |
Threat Protection Throughput 2, 5 | 1 Gbps |
System Performance and Capacity | |
IPv4 Firewall Throughput (1518 / 512 / 64 byte, UDP) | 20 / 18 / 10 Gbps |
Firewall Latency (64 byte, UDP) | 4.97 μs |
Firewall Throughput (Packet per Second) | 15 Mpps |
Concurrent Sessions (TCP) | 1.5 Million |
New Sessions/Second (TCP) | 56,000 |
Firewall Policies | 10,000 |
IPsec VPN Throughput (512 byte) 1 | 11.5 Gbps |
Gateway-to-Gateway IPsec VPN Tunnels | 2,500 |
Client-to-Gateway IPsec VPN Tunnels | 16,000 |
SSL-VPN Throughput | 1 Gbps |
Concurrent SSL-VPN Users (Recommended Maximum, Tunnel Mode) | 500 |
SSL Inspection Throughput (IPS, avg. HTTPS) 3 | 1 Gbps |
SSL Inspection CPS (IPS, avg. HTTPS) 3 | 1,800 |
SSL Inspection Concurrent Session (IPS, avg. HTTPS) 3 | 135,000 |
Application Control Throughput (HTTP 64K) 2 | 2.2 Gbps |
CAPWAP Throughput (HTTP 64K) | 15 Gbps |
Virtual Domains (Default / Maximum) | 10 / 10 |
Maximum Number of FortiSwitches Supported | 32 |
Maximum Number of FortiAPs (Total / Tunnel) | 128 / 64 |
Maximum Number of FortiTokens | 5,000 |
High Availability Configurations | Active / Active, Active / Passive, Clustering |
Dimensions and Power | |
Height x Width x Length (inches) | 1.73 x 17 x 10 |
Height x Width x Length (mm) | 44 x 432 x 254 |
Weight | 7.25 lbs (3.29 kg) |
Form Factor (supports EIA/non-EIA standards) | Rack Mount, 1 RU |
AC Power Supply | 100–240V AC, 50/60 Hz |
Power Consumption (Average / Maximum) | 35.1 W / 38.7 W |
Current (Maximum) | 100V / 1A, 240V / 0.5A |
Heat Dissipation | 119.77 BTU/h |
Redundant Power Supplies | Yes |
Redundant Power Supplies Yes | |
Operating Temperature | 32–104°F (0–40°C) |
Storage Temperature | -31–158°F (-35–70°C) |
Humidity | 10–90% non-condensing |
Noise Level | 40.4 dBA |
Forced Airflow | Side to Back |
