Description

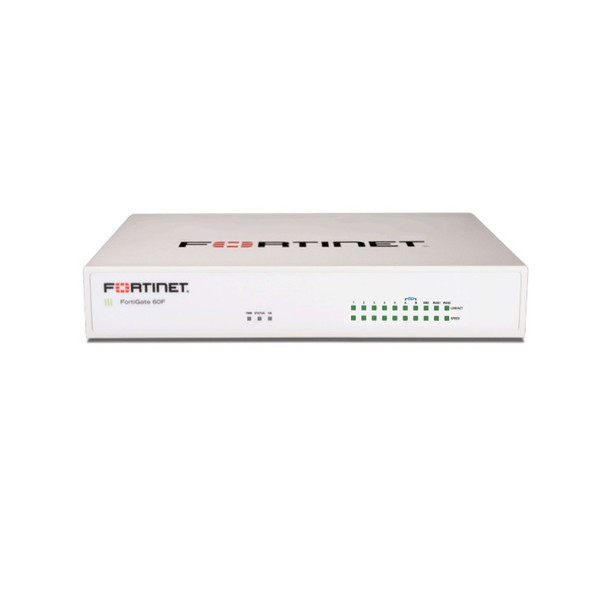

Fortinet FortiGate FG-60F 10 X GE RJ45 PORTS (INCLUDING 7 X INTERNAL PORTS 2 X WAN PORTS 1 X DMZ PORT). MAX MANAGED FORTIAPS (TOTAL / TUNNEL) 30 / 10
The FortiGate/FortiWiFi 60F series provides a fast and secure SD-WAN solution in a compact fanless desktop form factor for enterprise branch offices and mid-sized businesses. Protects against cyber threats with system-on-a-chip acceleration and industry-leading secure SDWAN in a simple, affordable, and easy to deploy solution. Fortinet's Security-Driven Networking approach provides tight integration of the network to the new generation of security.
Security
Identifies thousands of applications inside network traffic for deep inspection and granular policy enforcement.Protects against malware, exploits, and malicious websites in both encrypted and non-encrypted traffic.Prevent and detect against known and unknown attacks using continuous threat intelligence from AI-powered.FortiGuard Labs security services.
Performance
Delivers industry's best threat protection performance and ultra-low latency using purpose-built security processor (SPU) technology.Provides industry-leading performance and protection for SSL encrypted traffic.
Certification
Independently tested and validated for best-in-class security effectiveness and performance.Received unparalleled third-party certifications from NSS Labs
Networking
Delivers advanced networking capabilities that seamlessly integrate with advanced layer 7 security and virtual domains (VDOMs) to offer extensive deployment flexibility, multi-tenancy and effective utilization of
resources.Delivers high-density, flexible combination of various high-speed interfaces to enable best TCO for customers for data center and WAN deployments.
Management
Includes a management console that is effective, simple to use, and provides comprehensive network automation and visibility.Provides Zero Touch Integration with Fortinet's Security.Fabric's Single Pane of Glass Management.Predefined compliance checklist analyzes the deployment and highlights best practices to improve overall security posture.
Security Fabric
Enables Fortinet and Fabric-ready partners' products to provide broader visibility, integrated end-to-end detection, threat intelligence sharing, and automated remediation.
FG-60F Specification | |
Hardware Specifications | |
GE RJ45 WAN / DMZ Ports | 2 / 1 |
GE RJ45 Internal Ports | 5 |
GE RJ45 FortiLink Ports (Default) | 2 |
Wireless Interface | - |
USB Ports | 1 |
Console (RJ45) | 1 |
Internal Storage | - |
System Performance — Enterprise Traffic Mix | |
IPS Throughput 2 | 1.4 Gbps |
NGFW Throughput 2, 4 | 1 Gbps |
Threat Protection Throughput 2, 5 | 700 Mbps |
System Performance | |
Firewall Throughput (1518 / 512 / 64 byte UDP packets) | 10/10/6 Gbps |
Firewall Latency (64 byte UDP packets) | 3.3 μs |
Firewall Throughput (Packets Per Second) | 9 Mpps |
Concurrent Sessions (TCP) | 700,000 |
New Sessions/Second (TCP) | 35,000 |
Firewall Policies | 5,000 |
IPsec VPN Throughput (512 byte) 1 | 6.5 Gbps |
Gateway-to-Gateway IPsec VPN Tunnels | 200 |
Client-to-Gateway IPsec VPN Tunnels | 500 |
SSL-VPN Throughput | 900 Mbps |
Concurrent SSL-VPN Users (Recommended Maximum, Tunnel Mode) | 200 |
SSL Inspection Throughput (IPS, avg. HTTPS) 3 | 630 Mbps |
SSL Inspection CPS (IPS, avg. HTTPS) 3 | 400 |
SSL Inspection Concurrent Session (IPS, avg. HTTPS) 3 | 55,000 |
Application Control Throughput (HTTP 64K) 2 | 1.8 Gbps |
CAPWAP Throughput (HTTP 64K) | 8 Gbps |
Virtual Domains (Default / Maximum) | 10 / 10 |
Maximum Number of FortiSwitches Supported | 16 |
Maximum Number of FortiAPs (Total / Tunnel Mode) | 64 / 32 |
Maximum Number of FortiTokens | 500 |
High Availability Configurations | Active / Active, Active / Passive, Clustering |
Dimensions | |
Height x Width x Length (inches) | 1.5 x 8.5 x 6.3 |
Height x Width x Length (mm) | 38.5 x 216 x 160 mm |
Weight | 2.23 lbs (1.01 kg) |
Form Factor | Desktop |
Radio Specifications | |
Multiple User (MU) MIMO | - |
Maximum Wi-Fi Speeds | - |
Maximum Tx Power | - |
Antenna Gain | - |
Operating Environment and Certifications | |
Power Rating | 12Vdc, 3A |
Power Required | Powered by External DC Power Adapter, 100–240V AC, 50–60 Hz |
Maximum Current | 100Vac/1.0A, 240Vac/0.6A |
Power Consumption (Average / Maximum) | 17.0 W / 18.5 W |
Heat Dissipation | 63.1 BTU/hr |
Operating Temperature | 32–104°F (0–40°C) |
Storage Temperature | -31–158°F (-35–70°C) |
Humidity Humidity | 10–90% non-condensing |
Noise Level | Fanless 0 dBA |
Operating Altitude | Up to 7,400 ft (2,250 m) |
Compliance | FCC, ICES, CE, RCM, VCCI, BSMI, UL/cUL, CB |
Certifications | ICSA Labs: Firewall, IPsec, IPS, Antivirus, SSL-VPN |
Note: All performance values are “up to” and vary depending on system configuration. 1. IPsec VPN performance test uses AES256-SHA256. 2. IPS (Enterprise Mix), Application Control, NGFW and Threat Protection are measured with Logging enabled. 3. SSL Inspection performance values use an average of HTTPS sessions of different cipher suites. 4. NGFW performance is measured with Firewall, IPS and Application Control enabled. 5. Threat Protection performance is measured with Firewall, IPS, Application Control and Malware Protection enabled. |
