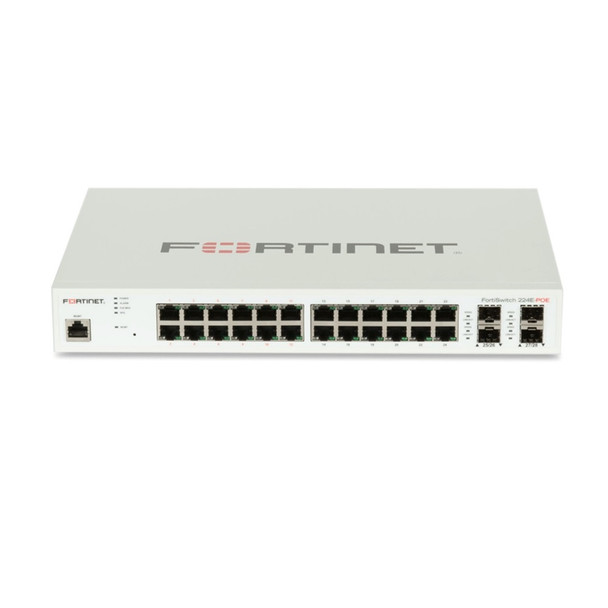

Fortinet FortiSwitch 224E-POE 24 Ports Gigabit Ethernet PoE+ L2 Management Switch


(No reviews yet) Write a Review
SKU:
NETFORFS224EP
MPN:
FS-224E-POE
Auckland Stock:
0
Wellington Stock:
0
Stock at Supplier:
0
$1,509.00

online great rate loans from $500 with

Out of stock

Description

FS-224E-POE deliver a Secure, Simple, Scalable Ethernet solution with outstanding security, performance and manageability for threat conscious small to mid-sized businesses, distributed enterprises and branch offices.

Security Fabric Integration

Reduces complexity and decreases management cost with network security functions managed through a single console via FortiGate. This integration allows all users to be authenticated against the same user database, regardless of whether they connect to the wired or wireless network, including temporary guest users.

In addition, same security policy can apply to a user or device regardless of how or where they connect to the network.

Simplify Network Deployment

The Power over Ethernet (PoE) capability in some models, enables simple installation of wireless Access Points and IP phones in the network.

Highlights

  • ● Secure Access switches suitable for wiringcloset and desktop installations
  • ● Ideal for converged network environments; enabling voice, data and wireless traffic to be delivered across a single network
  • ● Devices are identified and users authenticated prior to being granted access to the network
  • ● Centralized security and access management from FortiGate interface
  • ● Up to 48 ports in a compact 1 RU form factor
  • ● Stackable up to 300 switches per FortiGate depending on model
  • ● Supports Wire-speed switching and Store and Forward forwarding mode

FS-224E-POE specification

Hardware Specifications

Total Network Interfaces

24x GE RJ45 ports and 4x GE SFP ports

Dedicated Management 10/100 Port

1

RJ-45 Serial Console Port

1

Form Factor

1 RU Rack Mount

Power over Ethernet (PoE) Ports

12 (802.3af/802.3at)

PoE Power Budget

180 W

Mean Time Between Failures

> 10 years

System Specifications

Switching Capacity (Duplex)

56 Gbps

Packets Per Second (Duplex)

83 Mpps

MAC Address Storage

16 K

Network Latency

< 1µs

VLANs Supported

4 K

Link Aggregation Group Size

8

Total Link Aggregation Groups

Up to number of ports

Packet Buffers

1.5 MB

DRAM

512 MB

FLASH

128 MB

Dimensions

Height x Depth x Width (inches)

1.73 x 9 x 12.99

Height x Depth x Width (mm)

44 x 230 x 330

Power

Power Required

100–240V AC, 50–60 Hz

Power Supply

AC Built in

Redundant Power

Optional FRPS-740

Power Consumption (Average / Maximum)

220.18 W / 223.57 W

Heat Dissipation

74.29554 BTU/h

Environment

Operating Temperature

32–122°F (0–50°C)

Storage Temperature

-4–158°F (-20–70°C)

Humidity

10–90% non-condensing
