Description

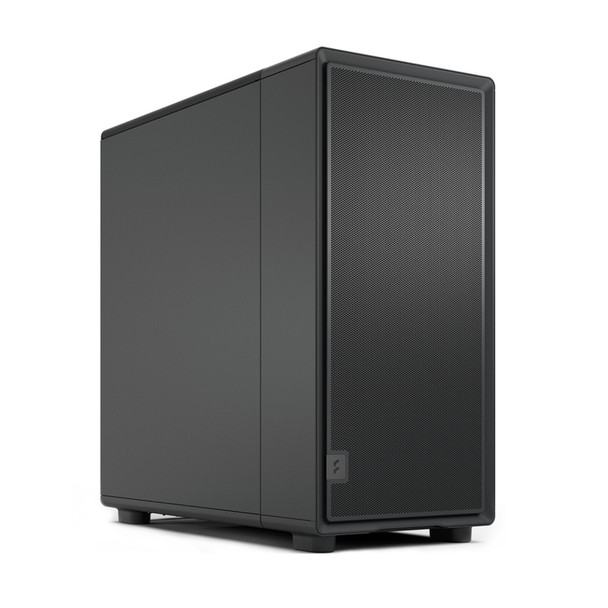

Fractal Design Epoch XL ATX Mid Tower Case Black Solid FD-C-EPO1X-01
Epoch XL delivers refined design and powerful airflow in a spacious format. With three Momentum 14 fans, mesh ventilation, and support for reverse-connector motherboards, it offers high-end cooling and versatile compatibility.
Contemporary design
Integrate your setup seamlessly into your gaming station with clean lines, a tidy interior, and refined details such as a laser-etched aluminum badge.
Generous interior
Create your ideal build with ample space for next-generation components and integrated reverse connector motherboard compatibility.
Powerful fans included
Includes three high-performance Momentum 14 fans, featuring LCP blades and true FDB bearings for improved cooling and quieter operation.
Ventilated airflow
Keep your high-performance components running cool with a clean interior layout and ventilated top and front panels for strong natural airflow.
Ready for gaming
Create a powerful gaming system with space for graphics cards up to 425 mm in length with front-mounted fans, or 395 mm with a front radiator.
Easily accessible
Enjoy a smooth build experience with tool-free access, including a pull-to-remove front panel and a sliding top panel featuring a fabric tab.
Cooler compatible
Cool your build further with compatibility for up to 360 mm radiators in the front and top, with space for a CPU air cooler up to 176 mm in height.
Organized interior
Achieve a neat and tidy look with a clean interior layout, cable routing grommets, and fixed routing straps to help keep your cables organized.
Accessible I/O
Connect your devices easily with a top I/O featuring a 20 Gbps USB Type-C port, two USB-A ports, and a combined audio and microphone jack.
3.5"/2.5" drive mounts
2 (2 included)
Dedicated 2.5" drive mounts
2 (2 included)
5.25" drive mounts
-
Expansion slots
7
Front interface
1x USB Type-C 20 Gbps
2x USB Type-A 5 Gbps
1x Audio/Mic Combo Jack
Total fan mounts
7 x 120 mm or 5 x 140 mm
Front fan (Epoch XL RGB)
3 x 120/140 mm (3 x Momentum 14 RGB included)
Front Fan (Epoch XL)
3 x 120/140 mm (3 x Momentum 14 included)
Top fan
3 x 120, 2 x 140 or 2 x 180 mm
Rear fan
1 x 120 mm
Bottom fan
-
Dust filters
PSU
Cable routing space
37 mm
Cable routing grommets
Yes
Fixed hook-and-loop straps
Yes
Tool-less push-to-lock
Top mesh, Front panel, PSU filter
Captive thumbscrews
HDD brackets, SSD brackets, Side panels, PSU bracket
Left side panel
Steel (Solid version), Tempered Glass (TG & RGB)
Right side panel
Steel
Compatibility
Power supply type
ATX
Motherboard compatibility
Front-facing connectors: E-ATX up to 275 mm/ATX / mATX / ITX
Rear-facing connectors: ATX / mATX
PSU max length
1 HDD Tray: 290 mm max
2 HDD Tray: 175 mm max
GPU max length
425 mm with front fan mounted / 395 mm with front-mounted radiator
CPU cooler max height
176 mm
Front radiator
Up to 280/360 mm
Top radiator
Up to 280/360 mm
Rear radiator
1x 120 mm
Bottom radiator
-
Dimensions
Case dimensions (LxWxH)
503 x 240 x 509 mm
Case dimensions w/o feet/protrusions/screws
490 x 240 x 490 mm
