Description

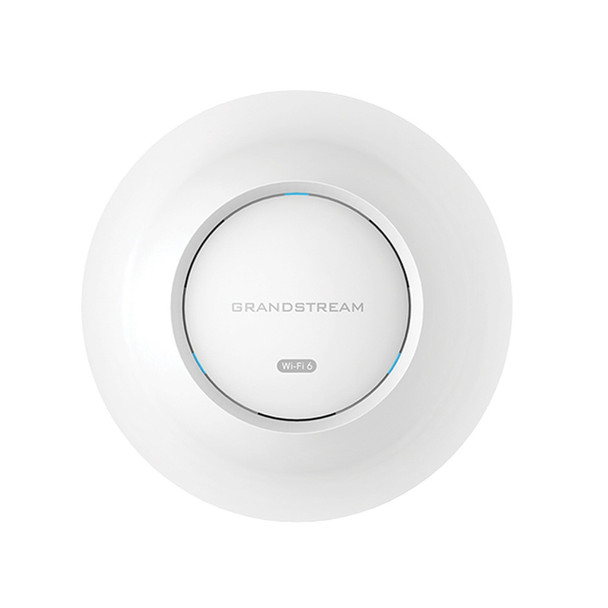

Grandstream GWN7662 (AX5400) Dual-Band 6-Stream Wi-Fi 6 AP with 2.5GbE x1 / 1GbE x1 (PoE+ 16W)
The Grandstream GWN7662 is an 802.11ax Wi-Fi 6 access point ideal for small-to-medium sized businesses, home offices, retail shops, restaurants, hospitality, education and more. It offers 4x 4:4 MU-MIMO technology on the 5G band and 2x2:2 MU-MIMO on the 2.4G band as well as a sophisticated antenna design for maximum network throughput and expanded Wi-Fi coverage range. WiFi 6 technology supports the modern generation of dense environments where many users and many devices require consistent and reliable Wi- Fi connections at higher speeds. To ensure easy installation and management, the GWN7662 uses a controller-less distributed network management design in which the controller is embedded within the product's web user interface.
The GWN7662 is also supported by GWN.Cloud and GWN Manager, Grandstream's free cloud and on-premise Wi-Fi management platform. It is the ideal Wi-Fi AP for voice-over-Wi-Fi deployments and offers a seamless connection with Grandstream's Wi-Fi capable IP phones. With support for advanced QoS, low-latency real-time applications, mesh networks, captive portals, 256 concurrent clients per AP and dual Gigabit network ports with PoE/PoE+, the GWN7662 is the ideal Wi-Fi access point for medium wireless network deployments with medium user density.
- 5.38 Gbps wireless throughput and 3.5 Gigabit wireline ports
- 5GHz 4×4:4 MU-MIMO with DL/UL OFDMA technology
- Up to 175-meter coverage range
- Supports 256 concurrent Wi-Fi client devices
- Advanced QoS to ensure real-time performance of low-latency applications
- Anti-hacking secure boot and critical data/control lockdown via digital signatures, unique security certificate/random default password per device
- Self power adaptation upon auto detection of PoE or PoE+
- Embedded controller can manage up to 50 local GWN series APs; GDMS Networking offers unlimited AP management; GWN Manager offers premise based software controller
Product Type
Access Point
Brand
Grandstream
Manufacturer Part Number
GWN7662
Client Devices
Up to 256
2.4G Throughput
573.5Mbps (2x2:2 MIMO)
5G Throughput
4804Mbps (4x4:4 MU-MIMO)
6G Throughput
N/A
Range
Up to 175 Meters
Network Interfaces
1x autosensing 10/100/1000 Base-T Ethernet Port, 1x autosensing 10/100/1000/2500 Base-T Ethernet Port
PoE/PoE+
Supports 802.3az; PoE 802.3af/ 802.3at; Maximum Power Consumption: 16W
Wi-Fi Standards
IEEE 802.11 a/b/g/n/ac(Wave-2)/ax
SSIDs
32 SSIDs total, 16 per radio (2.4GHz & 5GHz)
Antennas
6 single frequency internal antennas
Wi-Fi and Security Systems
WEP, WPA/WPA2-PSK, WPA/WPA2 Enterprise (TKIP/AES); WPA3, anti-hacking secure boot and critical data/ control lockdown via digital signatures
Dimensions
205.3mmx205.3mmx45.9mm
Mounting
Indoor wall mount or ceiling mount
