Description

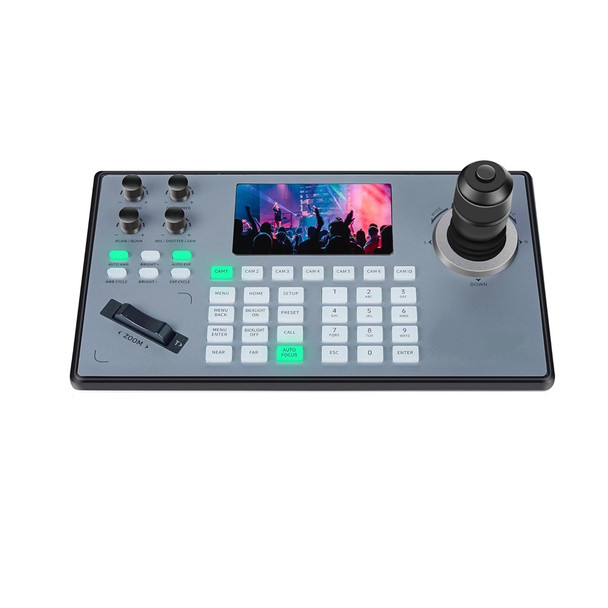

HAPINYUXV SG-KC31N Multifunctional PTZ Camera Controller
SG-KC31N PTZ camera controller is made for broadcast, professional video conferencing and live streaming. It can control up to 255 PTZ cameras via LAN port or serial interfaces. Multi-function joystick and intuitive buttons ensure fast and precise real-time adjustment. The controller enables you to remotely control pan/tilt/zoom/speed and incorporates a LCD screen, displaying real-time status of PTZ cameras. KB200 Pro supports 12V DC power supply and Power-over-Ethernet (PoE).
5 inch LCD Screen, Supporting Real-Time Monitoring and Image Decoding
The PTZ camera controller has a 5 inch LCD screen to monitor real-time video, supporting image decoding with a crisp resolution of 720*1280 pixels. Ideal for applications requiring compact displays with high-quality visuals.
Low Latency Controller
Responsive PTZ joystick with 8-direction movements at variable speed provides full control and low latency over pan-tilt-zoom. The PTZ camera joystick is built with full metal and scratch-resistant surface protector. It has simple elegant appearance with ergonomics design.
Single Cable Simplicity - PoE support
SG-KC31N supports Power Over Ethernet (PoE). Take control of cameras all across your network with a single Ethernet cable. Use PoE network switch to simplify your Joystick setup.
Multiple Control and Network Protocols
The joystick controller supports multiple control protocols: VISCA, Pelco via serial RS232 and RS422/RS485, ONVIF, NDI and Visca over IP. Visca is fully compatible.
Multiple Use Scenes with PTZ Cameras
SG-KC31N video conference PTZ camera control keyboard is designed for simple, quick and accurate control of PTZ cameras and can be used in various important conferencing venues, such as government and telecommunications departments, public security, procuratorates, courts, banks, securities, insurance, education, taxation
Specifications
Model: No: SG-KC31N
CHIP: HIS3536DV100
SYSTEM: Linux
Max equipment: 999
Decoding: H.265, H.264
RESOLUTION: MAX 1080P for 1 channel:1920*1080@30fps
PROTOCOL: VISCA over IP, NDI Control, Pelco-P, Pelco-D, Sony VISCA Compatible, ONVIF
Camera Control:
Exposure Selection: YES
White Balance: YES
Backlight Control: YES
Display status of WB, Iris, Gain, Shutter, Focus: YES
Focus Model Selection: YES
Auto Focus/Manual Focus: YES
User Interfaces:
Display: LED
Speed Control: YES
Zoom Rocker: Yes
Joystick Zoom Ring: Yes
Programmable function buttons: 6
Joystick: 4D
Output: RS422(Reserved), RS232(Development port), RJ45
Accessories: Knob, Silicone button
Beep: On/off
Display: TFT LCD 720*1280
Max camera control: Max 255 with multiple protocols including NDI/IP
Power consumption: ≤5W
POWER: DC12V-2A POE
Work temperature: -10°C~55°C / 14°F~131°F
Work humidity: 20%~80%frostless
Storage temperature: -10°C~60°C / 14°F~140°F
Storage humidity: 0~90%frostless
Product Size: 321181116mm/354221135mm (before/after packing)
Product Weight: 1.83kg/2.45kg( (net / gross weight))
