Description

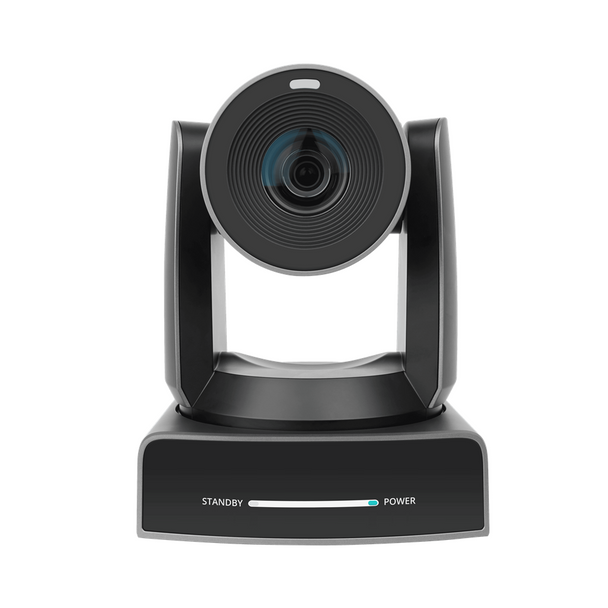

HAPINYUXV SG-VX630A-4K 4K60P Professional PTZ Camera
Designed for ProAV market, equipped with 30X large optical zoom, coupled with robust and reliable Pan/Tilt mechanical, achieve a smooth and precise tracking. Best choice for broadcasting, live streaming, stadiums and other scenarios need large optical zoom
4K60P
Use a high -quality 1/1.8 inches UHD CMOS sensor with 8.42 million pixels. Support max 4K60fps image output and multiple lower resolutions like 1080p/720p.
30x Optical Zoom + 59 ° Wide-angle Lens
4K optical lens, support max 30× optical zoom(50× lossless in 1080P) and 59° horizontal field of view, can cover the demand of Extra-large conferencing room and other scenarios need larger optical zoom.
AI Smart Tracking
With the built-in AI capability and algorithms, camera can support multiple tracking modes,including body tracking, hybrid tracking and etc
Remote Control
Support multiple ways of control, like RS232, RS485, Network and USB.
Non-compressed video stream
HDMI2.0 and 3G-SDI I/O, can output non-compressed video stream.
Low Illumination
The new generation high performance CMOS image sensor can significantly reduce the image noise in low illumination. With the 3D noise reduction algorithms, even in an ultra-low illumination environment,camera can still deliver a sharp and clean image with more than 55dB S/N ratio.
Gravity Sensor 1
Support image flipping, apply to head-up/head-down installation.
NDI®|HX2 1
Support low-latency NDI®|HX2 protocol, plug to play, minimalconfiguration and easy for deployment.
Multiple Interfaces
HDMI2.0, USB2.0/3.0, 3G-SDI(Up to 150meters transmission with 1080P30), LAN. Support HDMI/3G-SDI, USB, LAN streaming simultaneously.
Remark:
1. This function is optional.

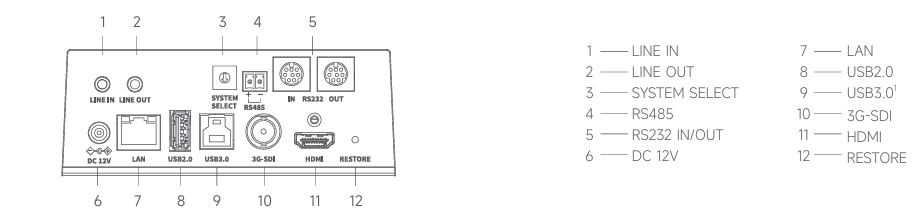

Interface Diagram
Product Specifications
Main Features
Signal System
HDMI:4K60P, 4K59.94P, 4K50P, 4K30P, 4K29.97P, 4K25P, 1080P60, 1080P59.94, 1080P50, 1080P30, 1080P29.97, 1080I60, 1080I59.94, 1080I50, 720P60, 720P59.94;
3G-SDI:1080P60,1080P59.94,1080P50, 1080P30, 1080P29.97, 1080P25;1080I60, 1080I59.94, 1080I50;720P60, 720P59.94;
Sensor
1/1.8 inches, CMOS, Effective Pixels: 8.42 Megapixels
Scanning Mode
Progressive
Lens
30x, f=7.1mm ~ 210mm, F1.61 ~ F5.19
Minimum Illumination
0.5Lux @ (F1.8, AGC ON)
Shutter
1/30s ~ 1/10000s
White Balance
Auto, Indoor, Outdoor, One Push, Manual, VAR
Backlight Compensation
Support
Digital Noise Reduction
3D Digital Noise Reduction
SNR
≥55dB
Horizontal FOV
59.2° ~ 2.5°
Vertical FOV
34.6° ~ 1.4°
Pan Angle
±170°
Tilt Angle
-30° ~ +90°
Pan Speed
1.7° ~ 100° /s
Tilt Speed
1.7° ~ 69.9° /s
Image Flip
Support
Image Freeze
Support
Preset Position
255
