Description

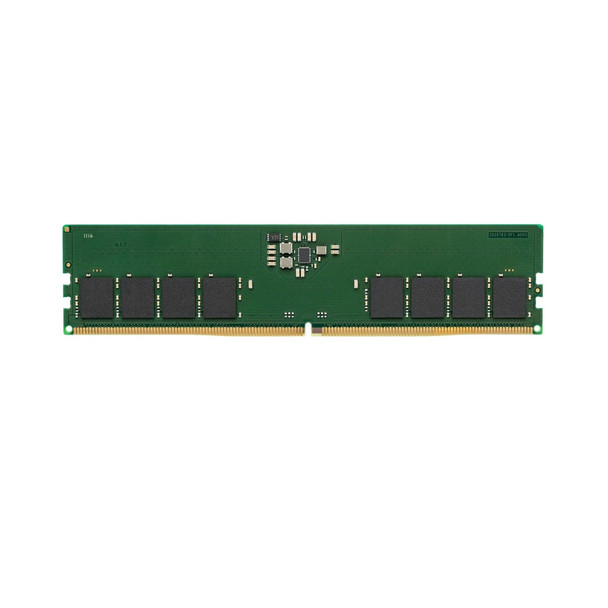

Kingston 32GB (1x 32GB) DDR5 5600Mhz Non-ECC Desktop UDIMM RAM KVR56U46BD8-32
This document describes ValueRAM's KVR56U46BD8-32 is a 4G x 64-bit (32GB) DDR5-5600 CL46 SDRAM (Synchronous DRAM), 2Rx8, memory module, based on sixteen 2G x 8-bit FBGA components. The SPD is programmed to JEDEC standard latency DDR5-5600 timing of 46-45-45 at 1.1V. Each 288-pin DIMM uses gold contact fingers. The electrical and mechanical specifications are as follows:
- Power Supply: VDD = 1.1V Typical
- VDDQ = 1.1V Typical
- VPP = 1.8V Typical
- VDDSPD = 1.8V to 2.0V
- On-Die ECC
- PCB: Height 1.23" (31.25mm)
- RoHS Compliant and Halogen-Free
Part Number
KVR56U46BD8-32
Capacity
32GB
Kit
Single Module
Chip Organisation
X8
Ranking
2R
DRAM Density
16Gbit
Speed
DDR5-5600
Timing
46-45-45 at 1.1V
