Description

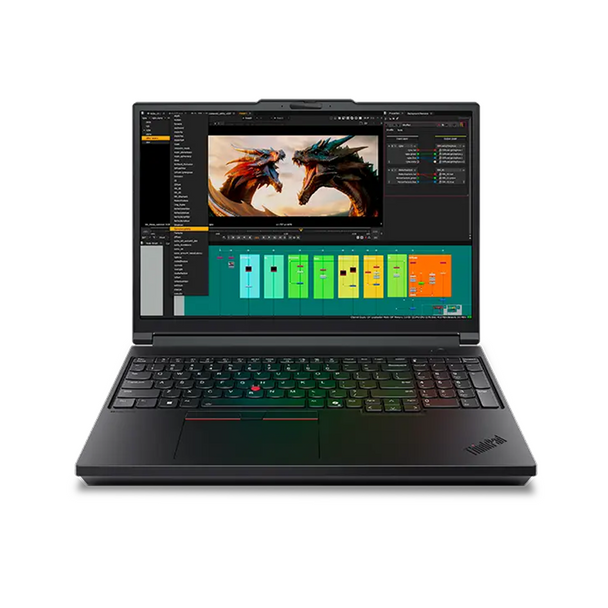

Lenovo ThinkPad T16g G3 U9-275HX 64GB 2TB RTX 5080 Laptop 21V5002FAU
- Intel Core Ultra 9 275HX, 24C (8P + 16E) / 24T, Max Turbo up to 5.4GHz, 36MB Intel Smart Cache
- 2x 32GB SODIMM DDR5-5600 Non-ECC
- 2TB SSD M.2 2280 PCIe 5.0x4 Performance NVMe Opal 2.0
- NVIDIA GeForce RTX 5080 16GB GDDR7 Laptop GPU
- Windows 11 Pro, English (US) / English (UK)
- Case color - Black
PERFORMANCE
Processor
Intel Core™ Ultra 9 275HX, 24C (8P + 16E) / 24T, Max Turbo up to 5.4GHz, 36MB Intel® Smart Cache
AI PC Category
AI PC
NPU
Integrated Intel® AI Boost, up to 13 TOPS
Graphics
NVIDIA GeForce RTX™ 5080 16GB GDDR7 Laptop GPU
Chipset
Intel® WM880 Chipset
Memory
2x 32GB SODIMM DDR5-5600 Non-ECC
Memory Slots
Four DDR5 SODIMM slots, dual-channel capable
Max Memory
Models with ECC memory: Up to 128GB (4x 32GB SODIMM DDR5-5600 ECC)
Models with Non-ECC memory: Up to 192GB (4x 48GB SODIMM DDR5-5600 Non-ECC)
Storage
2TB SSD M.2 2280 PCIe® 5.0x4 Performance NVMe® Opal 2.0
Storage Slot
Three M.2 slots
• One M.2 2280 PCIe® 5.0 x4 slot
• Two M.2 2280 PCIe® 4.0 x4 slots
Max Storage Support
Up to three M.2 2280 Gen 5 Performance SSD; up to 12TB, 4TB each
RAID Preset
None
Card Reader
SD Express 8.0 Card Reader
Audio Chip
SoundWire®, Cirrus Logic® CS42L43 codec
Speakers
Stereo speakers, 2W x2, Dolby Atmos®
Microphone
2x, Array
Camera
5.0MP + IR with Privacy Shutter and Computer Vision Human Presence Detection on ISP
Battery
99.9Wh
Power Adapter
180W USB-C® GaN (3-pin)
DESIGN
Display
16" 3.2K (3200x2000) Tandem OLED 600nits Anti-glare / Anti-reflection / Anti-smudge, 100% DCI-P3, 40-120Hz, DisplayHDR™ 600, Dolby Vision®, Eyesafe®, TÜV Low Blue Light, Touch
Touchscreen
Add-on Film Touch, 10-point Multi-touch
Screen-to-Body Ratio
82%
Color Calibration
X-Rite® Factory Color Calibration
Pen
Pen Upgradable (Purchase Separately)
Keyboard
Backlit, English
Dimensions (WxDxH)
362 x 252 x 15.8 / 20.9 (front / rear), 29.8 (maximum) mm
14.25 x 9.92 x 0.62 / 0.82 (front / rear), 1.17 (maximum) inches
Weight
Starting at 2.54 kg (5.6 lbs)
Case Color
Black
Case Material
Aluminium (Top), Aluminium (Bottom)
SOFTWARE
Operating System
Windows® 11 Pro, English (US) / English (UK)
Bundled Software
Lenovo® AI Now
CONNECTIVITY
WLAN + Bluetooth
Intel® Wi-Fi® 7 BE200, 802.11be 2x2 + BT5.4
WWAN
WWAN Not Supported
SIM Card
No physical SIM card inbox
Ethernet
1x 2.5GbE RJ-45
NFC
No NFC
Standard Ports
1x USB-A (USB 10Gbps / USB 3.2 Gen 2), Always On
1x USB-A (USB 10Gbps / USB 3.2 Gen 2)
2x Thunderbolt™ 5, with DisplayPort™ 2.1 and USB PD 3.1, 180W input / 15W output
1x Thunderbolt™ 4, with DisplayPort™ 2.1 and USB PD 3.1, 180W input / 15W output
1x HDMI® 2.1, up to 8K/60Hz
1x Headphone / microphone combo jack (3.5mm)
1x Ethernet (2.5GbE RJ-45)
1x SD Express 8.0 card reader
1x Kensington Nano Security Slot™
Optional Ports (configured)
None
Docking
Various docking solutions supported via Thunderbolt™ or USB-C®.
For more compatible docking solutions, please visit Docking for ThinkPad® P16 Gen 3 / T16g Gen 3
SECURITY & PRIVACY
Security Chip
Discrete TPM 2.0 Enabled
Physical Locks
Kensington Nano Security Slot™, 2.5 x 6 mm
Smart Card Reader
No Smart Card Reader
Fingerprint Reader
Touch Style, Match-on-Chip, Integrated in Power Button
Other Security
Camera privacy shutter (camera models)
Computer Vision-based User Presence Sensing on Image Signal Processor (ISP)
MANAGEABILITY
System Management
Non-vPro®
SERVICE
Base Warranty
3-year, Courier or Carry-in with 1-year Battery
Included Upgrade
3Y Premier Support Upgrade from 3Y Courier/Carry-in
ACCESSORIES
Bundled Accessories
None
CERTIFICATIONS
Green Certifications
ENERGY STAR® 9.0
EPEAT™ Gold Registered
RoHS compliant
TCO Certified, generation 10
Mil-Spec Test
MIL-STD-810H military test passed
Other Certifications
Eyesafe® Certified 2.0
TÜV Rheinland® Low Blue Light
Additional Information
Screen Size: |
16 Inches |
CPU: |
Intel Ultra 9 |
Memory Size: |
64GB |
GPU Model: |
Nvidia RTX 5080 |
