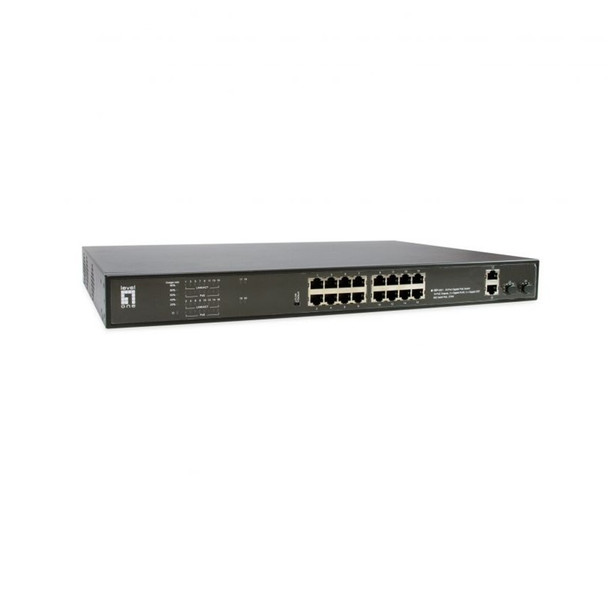

LevelOne GEP-2021 20-Port Gigabit PoE+ Switch

• 16 Gigabit PoE ports, 2 Gigabit ports and 2 Gigabit SFP slots.
• Total PoE power budget: 270W, up to 30W per port.
• IEEE 802.3af/at PoE compliant to simplify deployment and installation.
• Supports DIP switch configuration for VLAN mode and Default mode features.
• Supports port-based VLAN.
• 6KV surge protection, 6KV/8KV ESD protection.

The GEP-2021 is LevelOne latest generation of 20-Port Gigabit Unmanaged PoE Switches, with 2 Gigabit RJ45 and 2 Gigabit SFP Uplink ports.

This switch offers a hardware DIP switch configuration for VLAN / Default mode. It's a switch that gives you a high-performance, low-cost, easy-to-use, seamless upgrade to boost your network to 1000Mbps.

The GEP-2021 PoE-enabled switches features an IEEE 802.3af/at certified, better PoE functionality with 270W PoE power budget and usability. supports up to 16 ports at 15.4W, or 9 ports at 30 W to meet the increasing power demands of users.

Giving you flexibility in power allocation for a variety of powered devices enabling you to scale your operations to meet business growth, operational cost savings, and ease of management.

Backplane (Gbps) 40Gbps
Packet buffer 29.8Mpps
Dip switch VLAN mode, Default mode
Indicators Power, Link/Act, PoE usage rate (20%, 40%, 60%, 80%, 90%)
MAC address table 8K
Flash memory size 4M
Mount 19" rack mount, Desk mount
Pin assignment and polarity 1/2 (+), 3/6 (-)
Power supply AC100-240V, 50/60Hz

Standards

• IEEE 802.3 10-BASE-T (Ethernet)
• IEEE 802.3u 100-BASE-TX (Fast Ethernet)
• IEEE 802.3ab 1000BASE-T (Gigabit Ethernet)
• IEEE 802.3z 1000BASE-X (Gigabit Ethernet)
• IEEE 802.3 af/at

Product weight (kg) 4
Product breadth (mm) 442
Product depth (mm) 285
Product height (mm) 44

Package contents

• GEP-2021
• Power Cord
• 19" Rack Mount Kit
• Quick Installation Guide
