Phoenix Contact FL Switch SFNB 8TX 8 Port Network Unmanaged Ethernet Switch


(No reviews yet) Write a Review
SKU:
NETPHO2891002
MPN:
2891002
Auckland Stock:
0
Wellington Stock:
0
Stock at Supplier:
0
  • Buy the Phoenix Contact FL Switch SFNB 8TX 8 Port Network Unmanaged Ethernet Switch ( 2891002 ). Shop online at Extremepc.co.nz
  • Phoenix Contact FL Switch SFNB 8TX 8 Port Network Unmanaged Ethernet Switch
$184.99

online great rate loans from $500 with

Out of stock

Description

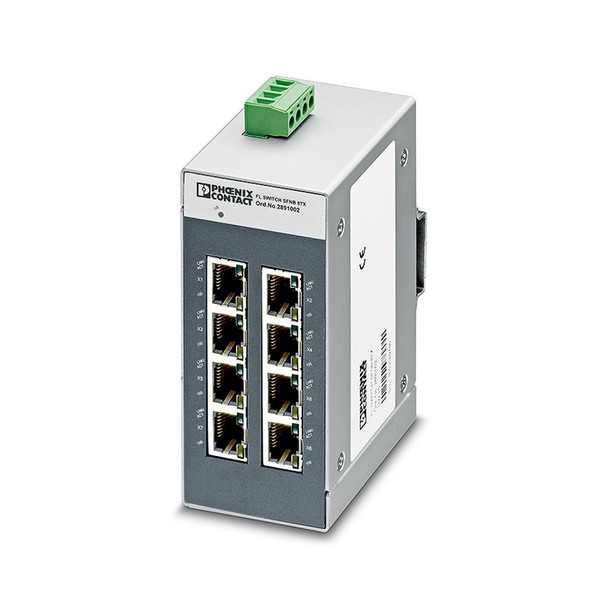

Phoenix Contact FL Switch SFNB 8TX 8 Port Network Unmanaged Ethernet Switch

Ethernet switch, 8 TP RJ45 ports, automatic detection of data transmission speed of 10/100 Mbps (RJ45), autocrossing function

Width50 mm
Height110 mm
Depth70 mm
Note on applicationOnly for industrial use
Housing materialAluminum
Mounting typeDIN rail mounting

Interfaces

Ethernet (RJ45)
Connection methodRJ45
Note on the connection methodAuto negotiation and autocrossing
Transmission speed10/100 Mbps
Transmission physicsEthernet in RJ45 twisted pair
Transmission length100 m (per segment)
Signal LEDsData receive, link status
No. of channels8 (RJ45 ports)
Product typeSwitch
Product familyUnmanaged Switch SFNB
TypeBlock design
MTTF95.6 Years (MIL-HDBK-217F standard, temperature 25°C, operating cycle 100%)
Switch functions
Basic functionsUnmanaged switch / auto negotiation, complies with IEEE 802.3, store and forward switching mode
MAC address table2k
Status and diagnostic indicatorsLEDs: US, link and activity per port
Additional functionsAutonegotiation
Security functions
Basic functionsUnmanaged switch / auto negotiation, complies with IEEE 802.3, store and forward switching mode

Electrical properties

Local diagnosticsUS Supply voltage Green LED
LNK/ACT Link status/data transmission Green LED
100 Data transmission speed Yellow LED
Maximum power dissipation for nominal condition3.36 W
Transmission mediumCopper
Supply
Supply voltage (DC)24 V DC
Supply voltage range9 V DC ... 32 V DC
Power supply connectionVia COMBICON, max. conductor cross section 2.5 mm²
Residual ripple3.6 VPP (within the permitted voltage range)
Max. current consumption380 mA (@9 V DC)
Typical current consumption140 mA (at US = 24 V DC)

Connection data

Connection methodScrew connection
Conductor cross section, rigid0.2 mm² ... 2.5 mm²
Conductor cross section, flexible0.2 mm² ... 2.5 mm²
Conductor cross section AWG30 ... 12
Stripping length7 mm

Enviromrntal and real-life conditions

Ambient conditions
Degree of protectionIP20
