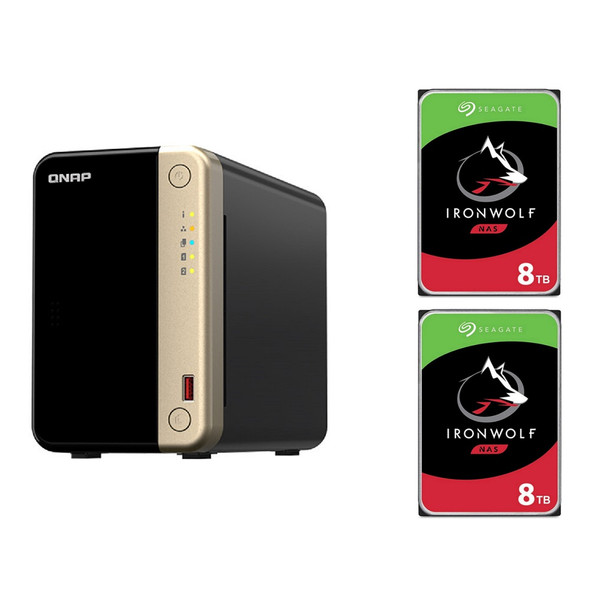

QNAP TS-264-8G 2-Bay Diskless NAS Celeron N5095 2.9GHz 8GB DDR4

QNAP TS-264-8G 2-Bay Diskless NAS Celeron N5095 2.9GHz 8GB DDR4

QNAP TS-264-8G External HDD/SSD Overview

Powered by an Intel Celeron Quad-Core processor, the TS-264 2-Bay NAS Enclosure from QNAP features two 2.5GbE RJ45 ports and Port Trunking for up to 5 Gb/s combined bandwidth. With M.2 PCIe 3.0 and PCIe 3.0 slots, the TS-264 provides flexibility in extending NAS functionality, allowing you to install a QM2 card for M.2 SSD caching, or Edge TPU for AI image recognition and various 10GbE/5GbE network cards. The TS-264 comes with 8GB of DDR4 RAM for running light VMs and Containers, and supports multi-cloud backup, cloud storage gateways, 4K HDMI output and real-time transcoding, alongside expandable storage capacity and feature-rich apps to perform as a cost-efficient, reliable 2.5GbE NAS.

This unit has two SATA III 6 Gb/s drive bays, all of which natively support 3.5" hard drives, as well as 2.5" hard drives and SSDs. Should users need to expand the overall capacity of their TS-264, optional expansion units may be connected.

Also featured are two USB-A 3.2 Gen 2 Type-A ports and two USB-A 2.0 ports, which allow it to be connected to external peripherals. Network connectivity is achieved via the two 2.5 Gigabit Ethernet ports with port trunking failover support, which helps to provide redundancy in the case that a LAN connection malfunction occurs on one port.

The TS-264 runs on the QTS hero 5.0.1 operating system. Supported RAID modes include RAID 0, for performance, and RAID 1, for 1:1 data redundancy. For those who do not require a RAID, JBOD and Single are also available, allowing each drive bay to be individually utilized.

QNAP has engineered the TS-264 to be energy efficient. Not only does it offer a 70mm cooling fan, the server supports numerous scheduled power on / off cycles and hard-drive hibernation to further minimize power consumption and operation expenses. The TS-264 operates using a 65W AC adapter and includes an Ethernet cable, a power cord, six flat head screws for 3.5" HDDs, and six flat head screws for 2.5" HDDs. Protection is provided by a limited 3-year hardware warranty.

Quad-Core High Performance and up to 8GB RAM

The TS-264 is powered by an Intel Celeron Quad-Core processor and supports up to 8GB of DDR4 memory, two 2.5GbE ports, and SATA III 6 Gb/s drives. The integrated Intel AES-NI encryption engine also helps protect confidential data without impacting system performance.

Accelerate AI-Powered Image Recording and Caching with TPU and PCIe Expansion

The TS-264 has two M.2 PCIe Gen3 slots, enabling SSD caching or SSD storage pools for improved performance, or Edge TPU for AI image recognition.

Install M.2 NVMe SSDs for Cache Acceleration or Efficient Tiered Storage
The TS-264 supports SSD caching and features two M.2 slots that support M.2 PCIe NVMe SSDs with 2280 form factors (sold separately) for boosting overall NAS performance. Qtier technology can also be used to empower the TS-264 with auto tiering that helps continuously optimize storage efficiency across all installed storage devices.

Accelerate AI-Powered Image Recognition with TPU
By leveraging a Google Edge TPU to QNAP AI Core (the AI-powered engine for image recognition), the TS-264 can perform high-speed face and object recognition. Google Edge TPU enables QuMagie to quickly process thousands of photos with high-speed AI Image recognition and classification, and QVR Face to analyze real-time video for instant facial recognition.

Note: Purchase this item from Coral website

SSD Caching and Auto Tiering Enable 24/7 Optimized Storage Efficiency

While SSD prices continue to fall, and SSD capacity and performance continue to increase, organizations can easily take advantage of SSD strengths. The TS-264 supports numerous SSD-aware features that significantly maximize NAS performance with high cost-effectiveness.

SSD Over-Provisioning
You can add additional SSD over-provisioning (1% ~60%) to avoid write amplification and improve SSD random write speeds and endurance. You can potentially attain enterprise-grade SSD performance levels from affordable consumer SSDs.

SSD Cache Acceleration
Enables SSD caching for increasing IOPS performance and reducing latency for storage volume. This feature is perfect for IOPS-demanding applications including databases and virtualization. The TS-264 also supports write-only cache to boost write-intensive applications.

Qtier for Auto-Tiering
Qtier technology drives auto-tiered storage with continuous data optimization across high-performance SSDs and high-capacity HDDs based on access frequency. I/O-Aware Qtier can reserve a cache-like space in the SSD tiered to handle burst I/O in real time.

Streamline Large File Transfers and Video Editing with 2.5GbE

The TS-264 comes with two 2.5GbE RJ45 (2.5G/1G/100M) LAN ports that allow you to use existing Cat 5e cables to upgrade network speeds from 1 Gigabit to 2.5 Gigabit. The dual 2.5GbE ports also support Port Trunking for up to 5 Gb/s transmission speeds, improving the efficiency of bandwidth-hungry business applications such as large file transfers, fast backup/restore, and multimedia transfer & editing.

Future-Proof Your IT Infrastructure for High-Speed Networks

The TS-264 is ideally matched with QNAP's managed and unmanaged 2.5GbE/10GbE switches to form high-speed, secure, and scalable network environments without going over budget. QNAP also provides 2.5GbE/5GbE/10GbE PCIe cards and USB 5GbE adapters for Windows/Linux workstations, allowing you to easily build a high-speed network environment for productive team collaboration.

Enhance Productivity with Multiple USB Ports

With two USB 3.2 Gen 2 (10 Gb/s) ports and two USB 2.0 (480 Mb/s) ports, you can quickly backup and transfer large files to/from the TS-264. UPS and other compatible USB devices can also be connected for greater functionality and application potential.

Abundant I/O Capabilities with PCIe Expansion

The TS-264 has one PCIe Gen 3 x2 slot that allows for installing various expansion cards for expanding application potential.

2.5/5/10GbE Network Card
Enable lightning-fast throughput for bandwidth-demanding tasks (virtualization, massive data transmission, and fast backup/restore).

QM2 Card
Add M.2 SSD caching, Edge TPU, or 10GbE network connectivity to the NAS to optimize performance and bandwidth.

10 Gb/s USB 3.2 Gen 2 Card
Add extra USB ports to the TS-264.

Wireless Adapter
Install a QXP-W6-AX2000 Wi-Fi 6 wireless adapter to turn the TS-264 into a wireless NAS. Or, make the TS-264 a wireless access point by installing the QWA-AC2600 wireless adapter and the WirelessAP Station app.

Direct 4K HDMI Output for Multimedia and Virtual Machine Display

The TS-264 features Intel UHD Graphics that supports dual-channel hardware decoding and real-time transcoding. The HDMI 2.0 output supports up to 4K, providing great benefits for applications like video production/editing or industrial design that demands high resolution and color realism, as well as intensive media storage, transfer, and display. By connecting the TS-264 to an HDMI display, you can directly watch multimedia content saved on the NAS, or use the TS-264 as a versatile workstation by directly outputting virtual machines from Virtualization Station or Ubuntu Linux Station.

Note: The TS-264's hardware provides hardware decoding, encoding and transcoding capabilities. However, playback quality may vary due to factors including playback software, file formats, system usage, and available bandwidth.

Faster Image Identification with Integrated Intel OpenVINO AI Engine

With integrated Intel OpenVINO AI computing resources, the TS-264 accelerates AI image recognition performance without impacting other applications or services. QNAP AI Core primarily works with the QuMagie application.

QuMagie Photo Management
Easy-to-use photo management solution that integrates AI image recognition and intelligent classification for your collection. With GPU acceleration, performance can be boosted up to 41.7%.

QTS 5 Operating System

The TS-264 comes with the QTS 5 operating system as standard, providing a next-generation usage experience with an updated system kernel, optimized user interface, and advanced security features.

Brighter and Smoother
When navigating QTS 5, you will notice a finer attention to detail for a superior browsing experience. Enjoy a smoother NAS experience, comfortable visual design, and find your favorite apps quicker.

Get Started with the Notice Board
When performing first-time installation, the notice board guides you through the setup process. Simply follow the step-by-step instructions for a quick and easy setup.

Smooth and Reactive User Interface
Whether clicking buttons, switching between apps, or expanding/collapsing windows, every action is much smoother. The search bar in the main menu also assists in quickly finding desired apps.

Comprehensive Backup and Disaster Recovery Solution

The TS-264 supports various apps that cover all your backup needs. Practice safe IT habits by regularly backing up files and device content, allowing them to be easily restored when needed.

PC/Laptop Backup
For Windows, install NetBak Replicator to back up your PC to QNAP NAS. In macOS, just set up the built-in Time Machine to secure your data.

Remote Backup for NAS
Hybrid Backup Sync makes it easy to back up data from a TS-264 to another QNAP NAS or remote server to fulfill your 3-2-1 backup strategy.

VM Backup
Enjoy license-free VMware and Hyper-V VM backup with source-side incremental backup, global deduplication, and recovery compression.

Saas Backup
Safeguard enterprise cloud data by backing up/syncing files, emails, calendars, and contacts from Google Workspace and Microsoft Office 365 to the NAS.

Note: Minimum memory requirements are 2GB available and 4GB installed.

Cloud Backup for NAS
Hybrid Backup Sync supports mainstream cloud storage for NAS data backup. For backup to object cloud storage, VJBOD Cloud is especially useful to reduce bandwidth usage and backup time.

QuDedup Technology
Hybrid Backup Sync eliminates redundant data at the source and then backs up the deduplicated data, helping to save time and storage costs while providing efficient multi-version backups.

Multi-Version Snapshots Mitigate Ransomware Threats

The TS-264 supports block-based snapshots that record the state of the system at any time. It helps protect data, which can be restored back to a specific point of time, greatly helping in mitigating the threat of ransomware.

Volume and LUN Snapshots
Take snapshots in seconds and revert the entire volume/LUN back to a specific point in time to prevent loss of important data.

Instantly Restore Snapshots
Snapshot content can be quickly restored to a local NAS, or restored on a folder/file basis to a local/remote NAS or cloud storage. You can also conveniently view and restore snapshots from the client side.

Back Up Snapshots
Multiply data protection by backing up snapshot files. Replicate volume/LUN snapshots in the TS-264 to a remote NAS (Snapshot Replica) by copying only the changes made. This helps save time and bandwidth, and can be run manually or on a scheduled basis.

All-in-One Solution for Hosting Virtual Machines and Containers

By running multiple virtual machines and containers on the TS-264, you can deploy multi-tenant environments and applications to increase management efficiency and save hardware costs. Coupled with the Network & Virtual Switch app that boosts interoperability between virtual machines, containers, QNAP NAS, and other physical devices on the network, you can flexibly allocate physical and virtual network resources to simplify network deployment.

Virtualization Station
Run multiple Windows, Linux, UNIX, Android, and QuTScloud virtual machines and access them via a web browser or Virtual Network Computing (VNC). Businesses can run virtualized server applications on a single NAS without needing additional physical servers.

Container Station
Experience Docker, LXD, and Kata Containers lightweight virtualization technologies, download apps from the built-in Docker Hub Registry, import/export containers, and create abundant microservices.

Linux Station
Run Linux applications (including apps from the Software Center) directly on the NAS and remotely access the Linux desktop from a web browser. The open-source Linux platform is also ideal for Internet of Things development.

Comprehensive Security and Privilege Settings

The TS-264 is loaded with flexible privilege settings and security measures. Besides IP blocking, 2-step verification, and HTTPS connection, there are more apps that help ensure optimal NAS protection against threats like malware and hackers.

myQNAPcloud Secures Remote Access
myQNAPcloud allows convenient connection to the TS-264 through the internet without any complex DDNS settings. To ensure your remote access service is secure, myQNAPcloud strengthens keys on SSL Certificates to 2048-bits.

Simplified Privilege Settings
The TS-264 supports comprehensive access right settings for shared folders, Azure Active Directory Domain Services (Azure AD DS), LDAP, and Windows ACL to help IT staff efficiently manage user accounts and access rights for multiple NAS systems.

QuFirewall Protection
Supports IPv6, firewall access lists, and GeoIP filtering to restrict access based on geographical locations for higher NAS network security.

Superior Security with QVPN
A virtual private network (VPN) allows secure access to network resources and services across public networks. QVPN supports creating a VPN client, using the TS-264 as a VPN server, and WireGuard VPN service with an easy-to-use interface for setting up a secure connection.

QuQAN SD-WAN
To facilitate digital transformation, multi-site expansion, and remote working, QuWAN SD-WAN helps automatically mesh multi-site VPN. It features IPsec encryption and cloud-centric management, allowing secure multi-site network including QNAP NAS and VMware ESXi platforms.

Security Counselor
A security portal for the TS-264 to check for weaknesses and offer recommendations for enhancing NAS security. It also integrates anti-virus and anti-malware scanning software.

Malware Remover
Regularly scan your TS-264 using the latest malware definitions. If infected files are detected, they will be immediately removed to ensure NAS data security.

File Storage and Collaboration Center

The TS-264 integrates rich apps for storing, managing, synchronizing, searching, and archiving files. It supports SMB/CIFS, AFP, and NFS protocols for streamlined file sharing across Windows, Mac, and Linux/UNIX, and provides the smartest NAS solution for professionally managing your files.

File Station
Manage, access, and share all the files in the TS-264 and view snapshots files - all from your web browser. You can also easily mount remote NAS folders and cloud storage.

Qsync
Make any file uploaded to a TS-264 available to linked devices, such as computers, laptops, and mobile devices. You can sync shared folders and team folders for group file sharing to enhance the flexibility of team projects and collaboration.

Qsirch
QNAP's powerful, Google-like search tool helps you quickly find images, music, videos, documents, and emails by keywords, color, and more search conditions. It also supports Qfiling to perform one-time or automatic archival tasks based on your search criteria.

Qfiling
Automate your file organization - all you need to do is categorize files, set a schedule, and Qfiling will do the rest. Qfiling also enables smart recycling that instantly moves filtered files to the Recycle Bin.
