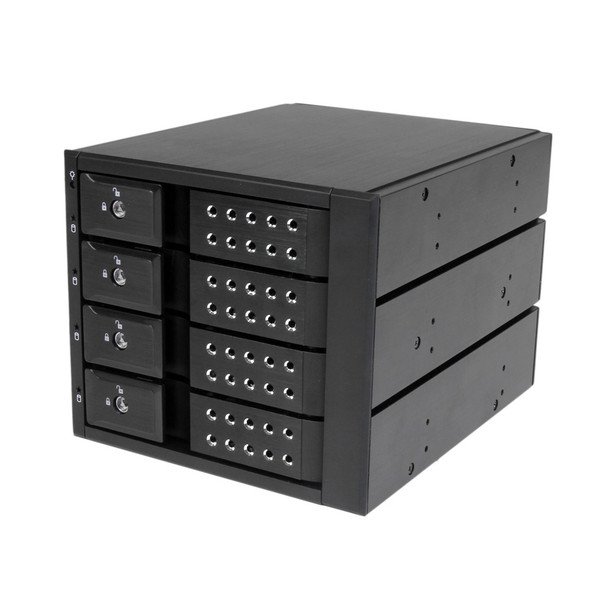

StarTech 4 Bay Trayless Hot Swap 3.5" SATA HDD Mobile Rack Backplane

The HSB4SATSASBA Removable 4-drive Backplane makes inserting and removing drives fast and easy, by turning three 5.25" bays into a hot-swappable interface for up to four 3.5" SATA or SAS hard drives (HDD). For added versatility, the hot swap bay can interface with SATA I/II/III and SAS I/II hard drives -- an ideal solution for enterprise system applications.  For a quick and secure method of installing and removing drives, the backplane features ejection levers and a key-lock design. To help prevent drive failure, the bay provides drive cooling with a built-in fan and excellent heat dissipation with a vented aluminum enclosure. The HSB4SATSASBA is backed by a StarTech.com 2-year warranty and free lifetime technical support.

The StarTech.com Advantage

- Delivers peak drive performance, with support for full SATA III/SAS II data transfer speeds up to 6Gbps
- Flexible drive options with support for both SATA and SAS drive interfaces
- Helps maintain ideal drive operating temperatures by maximizing heat dissipation and expelling built-up heat, with a vented aluminum housing and built-in fan

Compatible Drive Types
SAS & SATA

Drive Installation
Removable

Drive Size
3.5in

Fan Bearing Type
Sleeve Bearing

Fan(s)
Yes

Fans
1 - 70 mm

Interface
SATA
SAS

Key Lock
Yes

Number of Drives
4

Number of internal 3.5 inch bays
4

Max Drive Capacity
Currently tested with up to 6TB 7200 RPM hard drives

Maximum Data Transfer Rate
6 Gbit/s

Drive Connectors
4 - SFF-8482 (29 pin, Data & Power, Internal SAS) Receptacle

Host Connectors
2 - SATA Power (15 pin) Receptacle
4 - SATA (7 pin, Data) Receptacle

OS Compatibility
OS independent; No software or drivers required

System and Cable Requirements
Flammability rating: UL94 - V0

LED Indicators
1 - Power LED
1 - Drive 1 Activity LED
1 - Drive 2 Activity LED
1 - Drive 3 Activity LED
1 - Drive 4 Activity LED

Included in Package
1 - 4 Drive Trayless 3.5in SATA/SAS Mobile Rack
8 - Installation screws
2 - Drive bay keys
4 - SATA cables
1 - Instruction manual
