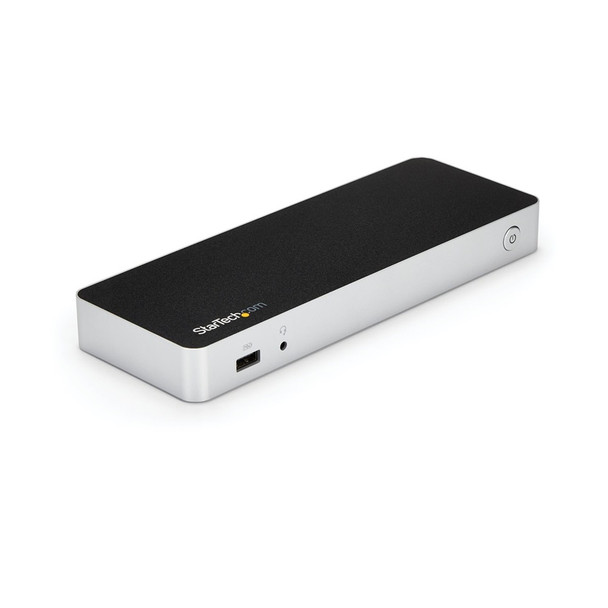

Description
Enhance your productivity by turning your Windows® USB-C™ laptop into a full-scale workstation. This dual-monitor USB-C dock lets you easily connect two HDMI monitors or DVI monitors (with included adapters) using one USB-C cable, with no setup of display drivers required right out of the box. The USB-C dock provides 60W charging power, and five USB 3.0 ports to connect devices. With easy dual-monitor setup, the dock is ideal for wide-scale use in office workstations.
Create a Dual-Monitor Workstation
The USB-C dock lets you connect dual monitors with flexible options. Connect to:
- 2x HDMI?or 2x DVI displays at 1920 x 1200p @ 60Hz
- 1x HDMI + 1x DVI display
You can also connect a single 4K HDMI display.
Connect More Devices
Unlike some USB-C docks that may drop to USB 2.0 and limit Ethernet performance, this USB Type-C™ dock offers full USB 3.0 and network bandwidth. This provides faster data transfer speeds when using your USB 3.0 peripherals and supports true Gigabit Ethernet network throughput. This USB Type-C docking station gives you five USB 3.0 ports (1x USB-C and 4x USB-A including 1x Fast-Charge), a Gigabit Ethernet port (PXE Boot support), plus audio and microphone connections.
60W Charging Power
The USB-C docking station with Power Delivery will power and charge (up to 60W) your laptop, while powering your devices. Fast, Easy Setup The?dock features automatic driver installation for easy setup. It works with Windows based laptops with a USB-C port that supports DP Alt Mode and USB Power Delivery.
The MST30C2HHPD is backed by a StarTech.com 3-year warranty and free lifetime technical support.
Notes:
- Ensure your laptop’s drivers, firmware, and operating system are current prior to using the docking station.
- Video output capabilities depend on the video card and hardware specifications of the connected laptop.
- Not all USB-C ports support the full functionality of the USB Type-C standard. Ensure that your laptop’s USB-C port supports DP Alt Mode and USB Power Delivery for the full functionality of the USB Type-C standard.
- Not all Thunderbolt 3 USB-C ports support the full functionality of the Thunderbolt 3 standard. Ensure that your laptop Thunderbolt 3 port supports USB Power Delivery.
| Connector(s) | |
| Connector Type(s) | 3.5 mm Mini-Jack (4 Position) Female |
| HDMI (19 pin) Female | |
| RJ-45 Female | |
| USB 3.0 A (Fast-Charge, 9 pin, SuperSpeed) Female | |
| USB Type-A (9 pin) USB 3.0 Female | |
| USB Type-C (24 pin) USB 3.0 (5Gbps) Female | |
| Environmental | |
| Humidity | 5%~95% RH (Non-condensing) |
| Operating Temperature | 0°C to 40°C (32°F to 104°F) |
| Storage Temperature | -20°C to 70°C (-4°F to 158°F) |
| Hardware | |
| 4K Support | Yes |
| Bus Type | USB-C |
| Chipset ID | VIA/VLI - VL813 MegaChips - STDP4320 Realtek - RTL8153 C-Media - CM6533 Texas Instruments - TPS65983 |
| Displays Supported | 2 |
| Fast-Charge Port(s) | Yes |
| Industry Standards | USB Power Delivery Specification Rev. 2.0 USB Battery Charging Specification Rev. 1.2 DisplayPort 1.2 with MST IEEE 802.3, IEEE 802.3u, IEEE 802.3ab USB 3.0 - Backward compatible with USB 2.0 and 1.1 |
| Packaging Information | |
| Shipping (Package) Weight | 1.4 kg [3.1 lb] |
| Performance | |
| Auto MDIX | Yes |
| Compatible Networks | 10/100/1000 Mbps |
| Full Duplex Support | Yes |
| Maximum Data Transfer Rate | 5 Gbps (USB 3.0) 2 Gbps (Ethernet; Full-Duplex) |
| Maximum Digital Resolutions | 1920 x 1200p @ 60Hz (HDMI/DVI - Dual Monitors) 4096 x 2160p @ 24Hz (HDMI - Single Monitor) 3840 x 2160p @ 30Hz (HDMI - Single Monitor) 1920 x 1200p @ 60Hz (DVI - Single Monitor) |
| PXE | Yes |
| Type and Rate | USB 3.0 - 5 Gbit/s |
| UASP Support | Yes |
| Physical Characteristics | |
| Color | Black |
| Enclosure Type | Plastic |
| Product Height | 24 mm [0.9 in] |
| Product Length | 220 mm [8.7 in] |
| Product Weight | 258 g [9.1 oz] |
| Product Width | 80 mm [3.1 in] |
| Power | |
| Center Tip Polarity | Positive |
| Input Current | 2 A |
| Input Voltage | 100 ~ 240 AC |
| Output Current | 5 A |
| Output Voltage | 20V DC |
| Plug Type | N |
| Power Consumption (In Watts) | 100 W |
| Power Delivery | 60W |
| Power Source | AC Adapter Included |
| Prominence | |
| Description CDW 75 - 1st Line | StarTech.com Dual Monitor USB-C Dock - Windows - 60W PD - 5x USB 3.0 |
| Software | |
| OS Compatibility | Windows® 7, 8, 8.1, 10 |
| Special Notes / Requirements | |
| Note | A 4K-capable HDMI display is required to achieve 4K resolution |
| Ensure your laptop’s drivers, firmware, and operating system are up to date prior to using the docking station. | |
| For a dual-monitor configuration, the Windows laptop must support MST. | |
| Not all Thunderbolt 3 USB-C ports support the full functionality of the Thunderbolt 3 standard. Ensure that your laptop Thunderbolt 3 port supports USB Power Delivery. | |
| Not all USB-C ports support the full functionality of the USB Type-C standard. Ensure that your laptop USB-C port supports DP Alt Mode, as well as USB Power Delivery. | |
| This docking station provides up to 60W of Power Delivery to charge your laptop. Some laptops may have specific charging requirements such as the full 60W for charging. In the event that your laptop is not charging, simply unplug any peripheral accessories attached to the dock’s USB-C port (on back of dock) and the USB 3.0 (Type-A) charging port (on front of dock) during charging. This will ensure the full 60 W of power is available for charging your laptop. | |
| USB 3.0 is also known as USB 3.1 Gen 1; this connectivity standard offers speeds up to 5Gbps | |
| Video output capabilities are dependent on the video card and hardware specification of your connected laptop. | |
| System and Cable Requirements | A Windows-based laptop with an available USB-C port (to ensure full adapter functionality, the host USB-C port must support USB Power Delivery 2.0 and DP Alt Mode) |
| What's in the Box | |
| Included in Package | 1m USB-C to USB-C cable |
| docking station | |
| HDMI to DVI adapters | |
| quick-start guide | |
| universal power adapter (NA/JP, ANZ) | |
