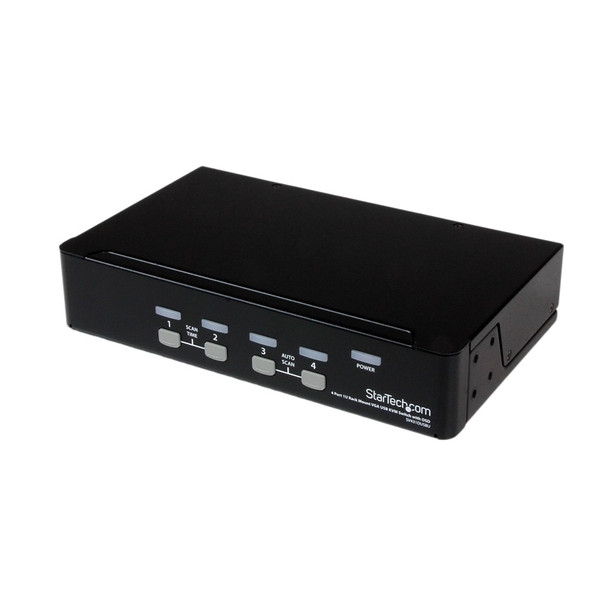

StarTech SV431DUSBU 4 Port 1U Rackmount USB KVM Switch with OSD Control

StarTech 4 Port 1U Rackmount USB KVM Switch with OSD Control

The SV431DUSBU 4 Port 1U Rack Mountable USB KVM Switch with OSD lets you control multiple USB based computers from a single console (USB keyboard, USB mouse, monitor).

Convenient push-button and hot-key controls provide quick, reliable switching between connected computers while manual and auto-scan switching modes and an On Screen Display (OSD) offer additional control options.

Designed to ensure maximum space efficiency, the USB KVM switch features a slim 1U design that fits neatly into a server equipment rack/cabinet (with optional mounting bracket SV431RACK) and offers rear cable connections to eliminate cable tangles and minimize workspace disruption.

This product is TAA compliant and backed by a Startech.com 3-year warranty with free lifetime technical support.

Rackmount your KVM switch

If you'd like to mount this KVM switch to your server rack, StarTech.com offers a 1U Rackmount Bracket (sold separately) that turns this KVM into a rackmountable KVM.

The SV431DUSBU only works with specific 2-in-1 VGA and USB cables (sold separately), a list of StarTech.com approved cables are below:

6 ft Ultra Thin USB VGA 2-in-1 KVM Cable
6 ft Ultra Thin USB VGA 2-in-1 KVM Cable
10 ft Ultra Thin USB VGA 2-in-1 KVM Cable
15 ft Ultra Thin USB VGA 2-in-1 KVM Cable

• OS Independent - No drivers or software required
• Auto-scan function automatically selects computer sequentially
• Front panel push-button and Hotkey switching allow easy computer access
• Identifies and selects computers by the names assigned using the OSD
• USB console connections
• Rename connected computers for easy identification
• OSD security allows each PC to be password protected
• Plug-and-play system configuration
• Supported Wide Screen Resolutions: 1920x1200, 1920x1080, 1680x1050, 1400x1050, 1440x900, 1360x768
• Supported 4 : 3 Resolutions: 1920x1440, 1600x1200, 1280x1024, 1024x768

Audio
No

Cables Included
No

Daisy-Chain
Yes

KVM Ports
4

Number of Monitors Supported
1

PC Interface
USB

PC Video Type
VGA

Rack-Mountable
Optional

DVI Support
No

Hot-Key Selection
Yes

IP Control
No

Maximum Analog Resolutions
1920 x 1440 @ 60Hz (1920 x 1200 @ 60Hz - Wide Screen)

Maximum Number of Users
1

On-Screen Display
Yes

Port Selection Support
Push Button, Hotkeys, and OSD (On Screen Display)

Wide Screen Supported
Yes

Console Interfaces
1 - VGA (15 pin, High Density D-Sub) Female
2 - USB A (4 pin) Female

Host Connectors
4 - VGA (15 pin, High Density D-Sub) Female

OS Compatibility
OS independent; No software or drivers required

LED Indicators
1 - Green - Power
4 - Green - Online PC
4 - Red - Selected PC

Center Tip Polarity
Positive

Input Current
0.2A

Input Voltage
110V-240V AC

Output Current
0.6A

Output Voltage
9 DC

Plug Type
M

Power Consumption (In Watts)
5.4

Power Source
AC Adapter Included

Humidity
80% RH

Operating Temperature
5°C to 40°C (41°F to 104°F)

Storage Temperature
-20°C to 60°C (-4°F to 140°F)

Colour
Black

Enclosure Type
Steel

Dimensions
Depth
5.1 in (130 mm)
Height
1.7 in (43 mm)
Width
8.7 in (220 mm)
