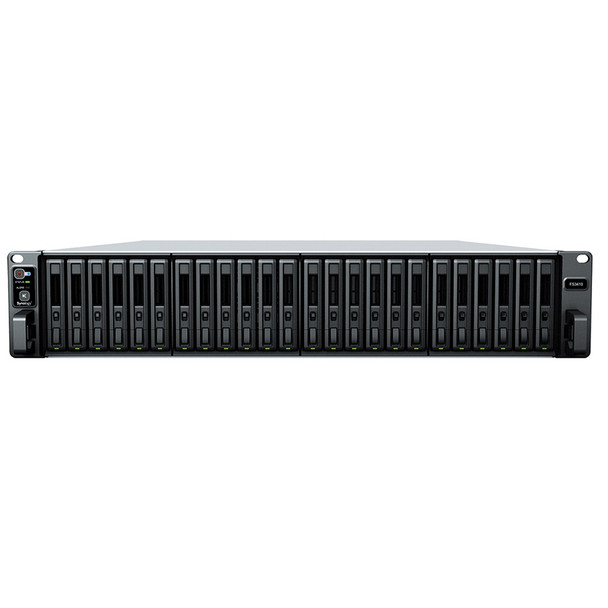

Synology FlashStation FS3410 24-Bay 2U Diskless NAS Xeon CPU 16GB RAM

Synology FlashStation FS3410 24-Bay 2U Diskless NAS Xeon 16GB

Intel Xeob D-1541 8 Core Upto 2.7 GHz, 16GB ECC (128GB Max), 2xPCIe, 4xGbE, 2x 10GbE, 1x Management Lan Port, 2x USB 3.2

Economical, high-performance data management solution for SMBs

- Storage: Supports 24 x 2.5" SATA SSDs
- Throughput: Over 356,500/129,400 iSCSI 4K random read/write IOPS
- Memory: 16 GB DDR4 ECC RDIMM, up to 128 GB
- Expandability: Optional 25/40GbE through PCIe 3.0 expansion

Powerful flash storage server

Combine all-flash performance with Synology systems' ease of use and reliability. The FS3410 is designed to tackle scenarios that require high throughput and low latency.

Built for high reliability

The FS3410 is built to keep mission-critical data and services always accessible, enabling businesses to continue to perform even when disaster strikes.

?Out-of-band (OOB) management

Simplify troubleshooting by managing powered-down devices remotely and accessing critical logs through a dedicated interface.

?Dual power supply

Redundant PSU units reduce the possibility of power disruptions on a single distribution channel or PDU adversely impacting data and service availability.

?Failover cluster

Pair two FS3410 units with Synology High Availability to enable automatic minute-level failover in the event of server failure or to minimize downtime when performing system updates or upgrades.

Powerful networking options

The FS3410 supports a wide range of networking interfaces, protocols, and configurations, whether you need fast sequential transfer, support for simultaneous connections, or high network redundancy.

Built-in fast connectivity
Two 10GbE RJ-45 ports and four Gigabit Ethernet ports allow for rapid transfer speeds right out of the box.

Support for 10/25/40GbE
Add up to 2 x 10/25/40GbE network interface cards using the 2 x PCIe 3.0 slots to enable lightning fast networking in minutes.2

Failover and network balancing
Bond multiple network interfaces with Link Aggregation to enable automatic network failover and load balancing.

Versatile data storage

The FS3410 fits perfectly in file server, block storage, or light application server roles that require high availability, reliability, and leading-edge storage technology.

VM storage & protection

Extremely fast IOPS performance combined with support for common virtualization platforms, iSCSI SAN service management, and extensive VM protection solutions make the FS3410 ideal for supporting and protecting VMs.

Complete SAN VM storage solution

Efficient and reliable SAN VM storage
SAN management is a breeze thanks to SAN Manager, which provides LUN management, global monitoring, iSCSI configuration and disk space optimization from a single, intuitive interface.
Deploy and facilitate storage operations in various virtualization environments with full certification for VMware® vSphere™, Microsoft® Hyper-V®, Citrix® XenServer™, and a Kubernetes CSI driver for integrated volume management.
Synology High Availability provides automatic minute-level failover of stored VMs by pairing up two FS3410 units to create a high-availability cluster.

Maximize space efficiency
VM and container storage on all-flash arrays can take advantage of volume-wide data deduplication, which removes identical data to optimize storage use.

VM backup and protection

Reliable VM backups at no extra cost
Back up unlimited VMware vSphere and Microsoft Hyper-V virtual machines from physical servers using Active Backup for Business. When unexpected interruptions occur or in upgrade testing environments quickly migrate them to Virtual Machine Manager (VMM).4

Block-level LUN snapshots and backups
Leverage Snapshot Replication for point-in-time snapshots of LUNs and shared folders with an RPO as low as 5 minutes. Replications can be managed in vCenter Site Recovery Manager and can be directly recovered via VMware vCenter Server for a simplified recovery process.
Use Hyper Backup for full data LUN and shared folder backups to a local or remote Synology system.

High-performance file serving & syncing

Leverage FS3410's blistering speeds to provide low-latency access to massive files. Enhance the collaborative process with powerful and user friendly cross-site syncing capabilities.

Lightning-fast access to large files

Built to handle demanding workflows
Fast network capability paired with all-flash performance means that the FS3410 is capable of taking on data and network-intensive workloads with multiple users accessing large files via SMB or NFS such as video post-production, BIM, and large-scale CAD projects.

Speedy and efficient collaboration

Secure site-to-site file and folder syncing
Make sure branches have quick access to data teams use to collaborate by syncing folders one or two way using Synology Drive ShareSync.

Efficient cross-site syncing through the cloud
Using Synology Hybrid Share, store large sets of data on the cloud and leverage the powerful bandwidth of our data centers to stream requested files to local NAS deployed at branch offices, no matter their size.5

Frequently used files are kept on the local NAS to provide access at LAN speeds, with the option to pin them manually to prevent removal from the cache.

Business application platform

Host cost-efficient business solutions, either through containers, virtual machines, or Synology DiskStation Manager (DSM)'s own solutions, including a powerful free backup suite, a versatile mail server, and a surveillance VMS with transparent licensing.

Enabling effective collaboration

Synology Drive
Host your own private cloud on the safety of your NAS with 100% data ownership and no subscription fees.

Synology Office
Collaborate in real time on documents, spreadsheets, and slides for greater synergy and productivity.

Synology MailPlus
Set up a private and secure mail server that can be merged with existing IT infrastructure and platforms.

Containerization and virtualization-ready

Docker
Docker on Synology DSM provides a virtualization environment that allows you to implement lightweight containers running thousands of applications.

Synology Virtual Machine Manager
Synology Virtual Machine Manager (VMM) is a hypervisor for Windows® and Linux® VMs or Virtual DSM, a virtualized version of DSM.

CPU

CPU Model

Intel Xeon D-1541

CPU Quantity

1

CPU Core

8

CPU Architecture

64-bit

CPU Frequency

2.1 (base) / 2.7 (turbo) GHz

Hardware Encryption Engine

Yes

Memory

System Memory

16 GB DDR4 ECC RDIMM

Memory Module Pre-installed

16 GB (16 GB x 1)

Total Memory Slots

4

Maximum Memory Capacity

128 GB (32 GB x 4)

Storage
