Description

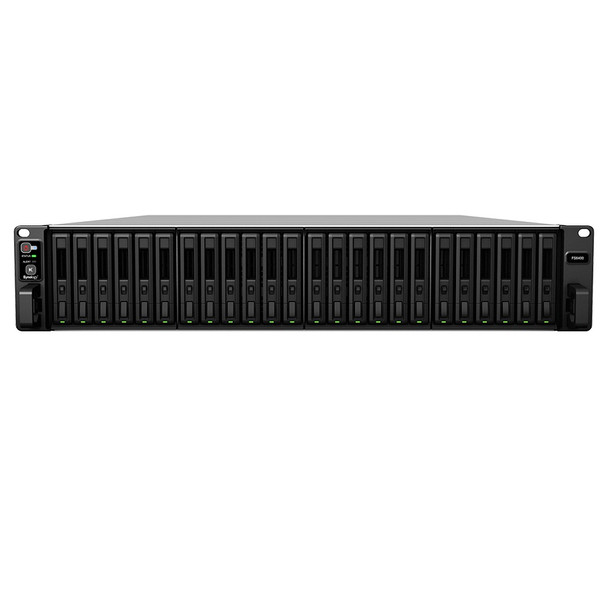

Synology FS6400 FlashStation NAS 2x Xeon Silver 4110 32GB
Synology FlashStation FS6400 is a 2U rackmount server designed for I/O-intensive and latency-sensitive tasks, ideal for multimedia post-production, virtual machines, online transaction processing, or database applications.
- CPU: Dual Intel® Xeon® Silver 8-core with NUMA
- Memory: DDR4 ECC RDIMM, up to 512GB
- High Performance: Over 240,000 iSCSI 4K random write IOPS
- Scalability: Up to 72 drives with FX2421
Fast and reliable networking
With multi-LAN design, FS6400 is capable of performing Link Aggregation and failover. For environments requiring a higher speed, two optional Ethernet add-in cards can be installed on PCIe 3.0 slots to provide fast data transmission.
Complete iSCSI and virtualization solutions
Synology iSCSI storage supports most virtualization solutions such as VMware vSphere, Microsoft Hyper-V, Citrix Xen Server, and OpenStack Cinder to enhance work efficiency. You can run and manage multiple virtual machines on Windows, Linux, or DSM using Virtual Machine Manager.
Next-generation file system for better data protection
The Btrfs file system introduces advanced storage technologies and optimized snapshots to prevent data corruption and reduce maintenance overheads. It offers flexible, efficient data protection and recovery tools while ensuring high-level data integrity.
- Flexible Shared Folder/User Quota System provides comprehensive quota control on all user accounts and shared folders
- Snapshot Replication provides schedulable and storage capacity-saving data protection with 1,024 shared folder backups and 65,000 system-wide snapshots
- File- or folder-level data restoration accelerates data recovery and provides more flexibility for businesses
- Automatic file self-healing detects and recovers corrupted files without user intervention
RAID F1
Due to the peculiarities of SSD and RAID technology, a common challenge lies in how to prevent all of the drives from failing at the same time because of the evenly distributed workload. RAID F1 alleviates this problem with a specially designed algorithm to unevenly distribute workload to drives, enhancing the resilience of the storage pool and ensuring your data remains safe.
Flash volume deduplication
Remove duplicate data on all-flash arrays with volume-wide deduplication to greatly increase storage efficiency. Eliminate redundant data to save up to 65% in storage space use in applications like virtual desktop infrastructure, and virtual machine.
Digital asset protection
Powered by Synology DiskStation Manager (DSM), Synology NAS offers advanced security measures to protect against sudden data loss and potential security holes.
Security Advisor
Analyze system settings, password strength and network preferences, and remove any possible malware.
AppArmor
A kernel-level enhancement that blocks malicious programs from accessing unauthorized system resources.
AES 256-bit encryption
Encrypt shared folders and network data transmission to avoid unauthorized data access.
2-step verification
Prevent others from logging in to your DSM by generating a six-digit one-time password (OTP) on your mobile device.
CPU
CPU Model
Intel Xeon Silver 4110
CPU Quantity
2
CPU Core
8
CPU Architecture
64-bit
CPU Frequency
2.1 (base) / 3.0 (turbo) GHz
Hardware Encryption Engine
Yes
Memory
System Memory
32 GB DDR4 ECC RDIMM
Memory Module Pre-installed
32 GB (16 GB x 2)
Total Memory Slots
16
Maximum Memory Capacity
512 GB (32 GB x 16)
Storage
Drive Bays
24
Maximum Drive Bays with Expansion Unit
72 (FX2421 x 2)
Compatible Drive Type* (See all supported drives)
2.5" SAS HDD
2.5" SAS SSD
2.5" SATA SSD
Hot Swappable Drive*
Yes
Notes
"Compatible drive type" indicates drives that have been tested to be compatible with Synology products. This term does not indicate the maximum connection speed of each drive bay.
External Ports
RJ-45 1GbE LAN Port
2
RJ-45 10GbE LAN Port
2
USB 3.2 Gen 1 Port*
2
Expansion Port
1
Expansion Port Type
Mini-SAS HD
Notes
The USB 3.0 standard was renamed to USB 3.2 Gen 1 by the USB Implementers Forum (USB-IF) in 2019.
PCle
PCIe Expansion
2 x Gen3 x8 slots (x8 link)
Appearance
Form Factor (RU)
2U
Size (Height x Width x Depth)
88 mm x 482 mm x 724 mm
Weight
17.26 kg
Rack Installation Support*
4-post 19" rack (Synology Rail Kit - RKS-02)
