Description

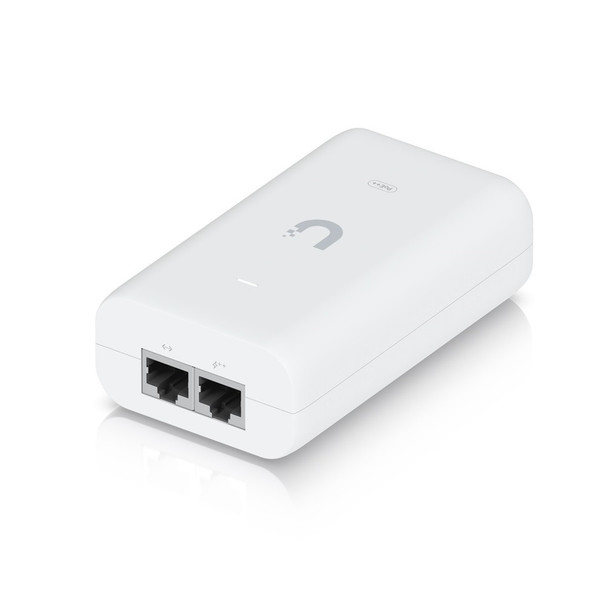

Ubiquiti U-PoE++ 60W PoE Adapter. An adapter that can power UniFi PoE++ devices with wireless mesh applications, or offload PoE switch power dependencies. Capable of delivering 60W of PoE++ power, the U-PoE++ can power the UA Hub, G4 PTZ, and other PoE++ devices, while also protecting against electrical surges.
Features
- Delivers up to 60W of PoE++
- Surge, peak pulse, and overcurrent protection
- Contains RJ45 data input, AC cable with earth ground, and PoE++ output
| Details | |
|---|---|
| Product Code | U-POE++ |
| Dimensions | 106 x 63 x 34 mm |
| Weight | 210g |
| Output Voltage | 48V DC @ 1.25A |
| Rated Voltage | 100-240V AC @ 50/60Hz |
| Input Current | 0.75A @ 230V AC |
| Efficiency | 85+% |
| Switching Frequency | 65kHz |
| 4-Pair Powering | Pins 1, 2, 4, 5 (+) and 3, 6, 7, 8 (-) |
| AC Connector | IEC-320 C6 |
| Data In/PoE | RJ45 Shielded Socket |
| Clamping Protection | 11V data, 60V power |
| Max PoE Wattage | 60W |
| Operating Temperature | 0 to 40° C |
| Storage Temperature | -30 to 70°C |
| Operating Humidity | 10 to 95% noncondensing |
| Certifications | CE, FCC, IC, UL, UKCA, KC, CCC, KC, RoHS |
