Description

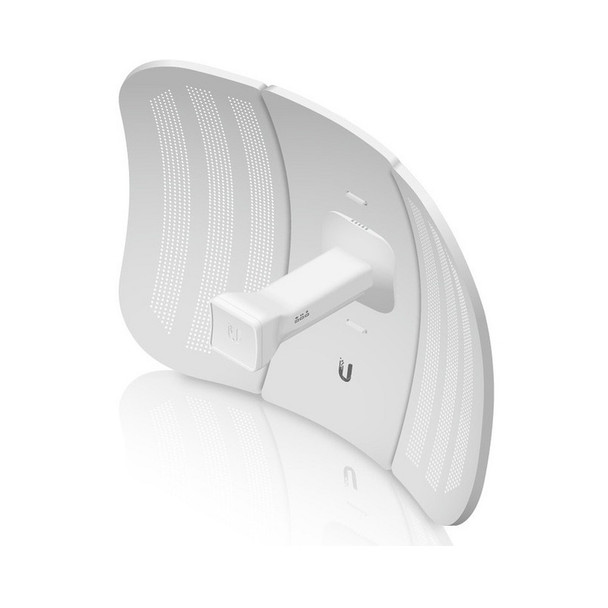

Ubiquiti LBE-M5-23 5GHz 23dBi LiteBeam airMax CPE
High-Gain, Directional Antenna
The LiteBeamM provides 23 dBi of gain for long-distance connectivity and uses a directional antenna pattern for improved noise immunity.
Breakthrough Industrial Design
Featuring the freedom of three-axis alignment, the LiteBeamM fully assembles in seconds - no tools needed. Only a single wrench is required for pole-mounting.
Compact in Size, Light in Weight
A lightweight form factor contained within ultra-compact packaging, the LiteBeamM is ideal for shipping and logistics.
Mechanical | |
---|---|
Hardware | |
Software | |
Dimensions | 362 x 267 x 184 mm (14.25 x 10.51 x 7.24") |
Weight | 750 g (24.11 oz) |
Mounting | Pole mounting (Kit included) |
Networking interface | (1) 10/100 MbE RJ45 port |
Power method | Passive PoE (pairs 4, 5+; 7, 8 return) |
Power supply | 24V, 0.2A PoE adapter (Included) |
Max. power consumption | 4W |
ESD/EMP protection | Air/contact ± 24kV |
ETSI specification | EN 302 326 DN2 |
Shock and vibration | ETSI300-019-1.4 |
RoHS compliance | Yes |
Operating temperature | -40 to 70° C (-40 to 158° F) |
Operating humidity | 5 to 95% noncondensing |
Certifications | FCC, IC, CE |
Operating frequency | Worldwide: 5150 - 5875 MHz USA: 5725 - 5850 MHz |
Output power | 25 dBm |
Gain | 23 dBi |
Max. VSWR | 1.5:1 |
