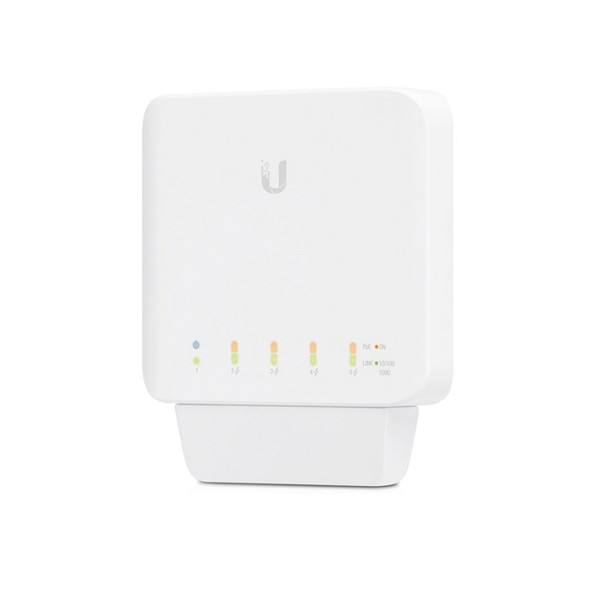

Ubiquiti Unifi Indoor/Outdoor 5-Port PoE Gigabit Switch

Ubiquiti Unifi Indoor/Outdoor 5-Port PoE Gigabit Switch

The UniFi® Switch Flex is a managed, Layer 2 Gigabit switch with auto-sensing 802.3af PoE support.

PoE Flexibility

The USW-Flex supports a maximum PoE output budget of 46W when powered by 60W 802.3bt PoE++. Four ports offer auto-sensing 802.3af PoE output to power multiple devices on the network.

Versatile Mounting

The USW-Flex can be installed horizontally or vertically making it ideal for desktop, magnetic wall-mount, and pole-mount installations.

Indoor/Outdoor Design

The USW-Flex is designed for indoor or outdoor use. With its weatherproof housing and versatile mounting options, the USW-Flex provides both flexibility and durability for environments with extreme temperature variations.

Compatible Products

The USW-Flex powers a variety of products, including the UniFi Video Camera G3 Flex, UniFi Video Camera G4 Pro, and UniFi AC Mesh AP, which use 802.3af PoE. To enable its maximum power budget of 46W, the USW-Flex can be powered by the USW-Industrial, US-XG-6POE, USW-Pro-24-PoE or USW-Pro-48-PoE switches, which provide 60W of 802.3bt PoE++.

Seamless Integration

A single instance of the UniFi Controller running in the cloud can manage multiple UniFi sites within a centralized interface. Each site is logically separated and has its own network monitoring, configuration, maps, statistics, and admin accounts.

USW-FLEX

Weight

230 g
(8.11 oz)

Networking Interfaces

(5) 10/100/1000 Mbps RJ45 Ports

Management Interface

Ethernet In-Band

PoE Out (Ports 2-5)

802.3af (Pins 1, 2+; 3, 6-)

Max Power Consumption (Excluding PoE Output)

5W

Max PoE Wattage Per Port

15.4W

Total PoE Power Budget

Powered by 802.3af: 8W
Powered by 802.3at: 20W
Powered by 802.3bt: 46W
Powered by PoE Adapter (Enabled in Controller): 46W

Voltage Range

802.3af: 44 - 57V
802.3at/bt: 50 - 57V

LEDs

System: Status
RJ45 Data Ports: PoE; Link/Speed/Activity

ESD/EMP Protection

± 16kV Air, ± 16kV Contact

Operating Temperature

46W PoE Output: -40 to 55° C (-40 to 131° F)
25W PoE Output: -40 to 65° C (-40 to 149° F)

Operating Humidity

5 to 95% Noncondensing

Certifications

CE, FCC, IC

POWER METHOD (PORT 1)

PoE Type

Recommended PoE Source

802.3af/at (Pins 1, 2+; 3, 6-)

USW-24-PoE (sold separately)

802.3bt (Pins 1, 2+; 3, 6- and 4, 5+; 7, 8-)

USW-Pro-24-PoE (sold separately)

50V/60W PoE Adapter*

PoE Injector, POE-50-60W-WH or POE-50-60W (sold separately)
* To enable PoE output power, select Power Source > PoE Injector in UniFi Controller.

USW-FLEX-UTILITY 60W POE ADAPTER

Dimensions

118.5 x 63 x 34.7 mm
(4.66 x 2.48 x 1.36")

Weight

206 g
(7.27 oz)

Output Voltage

54V, 1.11A

Rated Voltage

100-240VAC

Input Current

1.5A (Max.)

Efficiency

> 86%

Output Ripple

200mVpp

Line Regulation

< 1%

Load Regulation

< 3%

4-Pair Powering

Pins 1, 2, 4, 5+ and Pins 3, 6, 7, 8-

Operating Temperature

-20 to 60 ° C (-4 to 140 ° F)

Storage Temperature

-30 to 70 ° C (-22 to 158 ° F)

Operating Humidity

5 to 90%, Noncondensing

Surge Immunity

4kV Difference and Common Mode
