Description

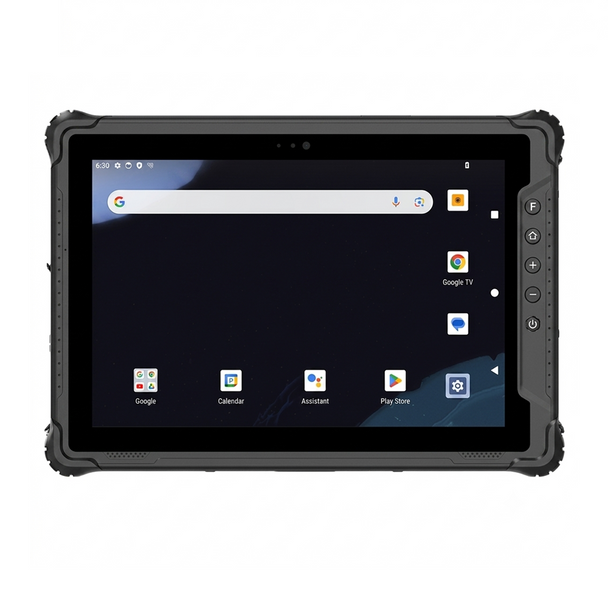

Emdoor EM-Q185M 10.1" 5G 8GB 128GB Storage Android Rugged Tablet
Rugged tablet pc Q185M is a solid, practical, professional and efficient 10.1-inch cost-effective rugged mobile pc, adopting the SM6350 processor and Android 14/GMS operating system, and equipped with high-definition and high-brightness screen.
CPU: SM6350
GPU: Adreno GPU 619
Operating system: Android 14/GMS
Resolution: 1200*1920
Screen size: 10.1 inches
AI-Powered Performance
Featuring a top 5G mobile platform based on 6nm technology, this device is equipped with the Qualcomm Kryo™ 670 CPU and the AI-accelerated Qualcomm Hexagon™ 770 processor. It delivers robust computational power to meet the sophisticated AI functional demands of Industrial IoT (IIoT) applications and diverse professional scenarios.
6nm Process Technology
2.7 GHz Max Clock Speed
14 TOPS Arithmetic Power
8-Core 4x A78 + 4x A55
Seamless Efficiency on Android 14
Powered by Android 14 (GMS certified) and paired with 8GB + 128GB of expansive memory, the EM-Q185M enables seamless performance for diverse, complex tasks. This flagship system architecture ensures long-term smooth operation and intelligent efficiency for modern industrial workflows.
8GB High-Speed RAM
128GB Storage Memory
GMS Google Certified
Elevate with Wi-Fi 6E and BT 5.2
Experience enhanced wireless connectivity with Wi-Fi 6E, leveraging additional 160 MHz channels for accelerated speed, reduced latency, and minimized signal interference. Paired with Bluetooth 5.2, the EM-Q185M enables seamless multi-device connectivity and robust data transmission like never before.
3.6 Gbps Peak Transmission Rate
Tri-Band 2.4GHz / 5GHz / 6GHz
2x2 MU-MIMO Multi-User Efficiency
4K QAM Higher Data Density
Unlock Global 5G Potential
Integrated with a high-performance 5G modem and RF system, the EM-Q185M supports Sub-6 GHz bands, TDD/FDD modes, and both SA and NSA network deployments. Covering nearly all critical regions worldwide, it ensures your operations stay connected across borders.
SA / NSA Dual-Mode Networking
Sub-6 GHz Global Coverage
Dual SIM Dual Standby Capacity
Ultra-Speed Industrial Grade Modem
5G Bands Supported: N1 / N3 / N5 / N7 / N8 / N20 / N28 / N38 / N40 / N41 / N77 / N78 / N79
Exceptional Display Experience
Combining a 10.1-inch FHD screen with a robust body, the EM-Q185M reaches a stunning 1200 x 1920 resolution and an impressive 1000 nits brightness. Constructed with wear-resistant PC/TPU materials and a shock-absorbing architecture, it excels in both visual clarity and rugged durability.
1000 nits Maximum Brightness
1920 * 1200 FHD Resolution
PC / TPU Material High-Strength Build
Tough Design Shock-Absorbing Corners
10000mAh Battery for All-Day Power
Enjoy 6 to 8 hours of uninterrupted productivity with the high-capacity 10000mAh battery. Its professional removable design minimizes downtime and offers maximum freedom in the field. Equipped with an 18W Type-C PD port and a 20W DC interface, it supports dual fast charging to ensure you are always ready for any task.
10000mAh High-Capacity Removable
18W PD / 20W DC Dual Fast Charging
RTC Supported Real-Time Clock Stability
6-8 Hours Active Work Time
Multi-Function Unlimited Possibilities
The EM-Q185M is a versatile powerhouse designed for seamless integration. Featuring a full suite of I/O ports including HDMI, RJ45, and USB Type-C, it connects effortlessly with diverse industrial peripherals. With advanced data capture options and a rich accessory ecosystem, it adapts to every professional challenge.
Full I/O Ports USB / HDMI / RJ45 / DC / Audio
2D Scanning Optional Pro 1D/2D Barcode Module
Dual-Band GNSS L1+L5 GPS / GLONASS / BeiDou
Security Fingerprint Recognition Unlock
Dual Cameras 13MP Rear + 5MP Front Imaging
Rich Ecosystem Docking, Vehicle Mount, Strap
Stay Calm in Harsh Environments
The EM-Q185M is built to withstand the toughest industrial challenges. Certified with IP65 dust and water resistance and rigorously tested to MIL-STD-810H standards, it operates reliably in extreme conditions. Whether facing heavy rain, intense dust, or accidental drops, it ensures stable performance for mission-critical workflows.
IP65 Certified Professional Dust-proof and Waterproof
MIL-STD-810H Rigorous U.S. Military Standard
-20°C to 60°C Extreme Working Temperature
1.22m Drop Shock and Impact Protection
| Basic parameters | Dimensions | 274.9*188.7*22.2mm |
| Machine weight | 1020g | |
| Machine color | Black | |
| Display | 10.1 inch FHD 16:10, 1200×1920, 1000nits | |
| Touch screen | 10-point Capacitive Touchscreen, Tempered Glass, G+G | |
| Camera | Front 5.0MP + Rear 13.0MP Supports autofocus, with flashlight | |
| I/O Interface | USB 3.0 Type-A x 1, Type-C(Data&Charging) x 1, Nano-SIM x 2 / Micro SD Supports up to 512GB x 1, +Nano-SIM x 1 (three-in-one card slot), RJ45 x 1, HDMI x 1, 12PIN Pogo Pin x 1, Φ3.5mm standard earphone jack x 1, DC Supports 5V/4A Charging x 1 | |
| Power adapter | Power Input 100-240VAC 0.5A 50/60Hz, DC Output 5V/4A | |
| Wireless Communications | WIFI | Wi-Fi 6E & DBS, IEEE 802.11a/b/g/n/ac/ax, Wi-Fi 2 x 2 MU-MIMO |
| Bluetooth | BT5.2(BLE) | |
| 2G/3G/4G/5G | 2G/3G/4G/5G | |
| GNSS | Supports: GPS/GLONASS/BDS; Dual-frequency L1 + L5 | |
| Performance parameters | CPU | Octa-core 2.7G QCM6490, 6nm FinFET process |
| GPU | Adreno™ GPU 643 | |
| Operating system | Android 14/GMS | |
| Memory | 8GB | |
| Storage capacity | 128GB | |
| Battery Performance | Battery | 10000mAh/3.8V / Removable Polymer Lithium-ion Battery / 6 hours |
| Data collection | NFC | Yes |
| Fingerprint | YES | |
| Product reliability | Operating temperature | -20°C~60°C |
| Storage temperature | -30°C~70°C | |
| Humidity | 95%, no condensation | |
| Protection level | IP65 certified, MIL-STD-810G certified | |
| Drop height | 1.22m drop resistance |
