Description

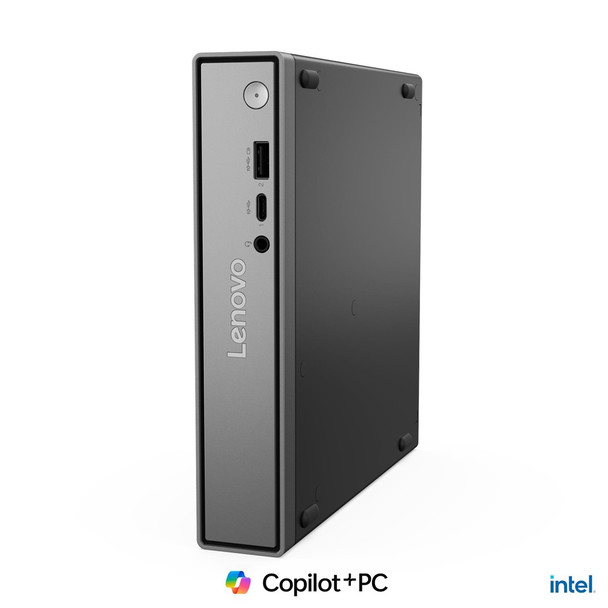

Lenovo ThinkCentre neo 50q G6 U5-226v 16GB 512GB SSD Win11Pro Tiny Business PC 13HR002FAU
Intel Core™ Ultra 5 226V, 8C (4P + 4LPE) / 8T, Max Turbo up to 4.5GHz, 8MB Intel® Smart Cache
16GB Soldered LPDDR5X-8533, MoP Memory
512GB SSD M.2 2280 PCIe® 4.0x4 NVMe® Opal 2.0
Integrated Intel® Arc™ Graphics 130V
Windows® 11 Pro, English
Case color - Black
Model Configurations
PERFORMANCE
Processor
Intel Core™ Ultra 5 226V, 8C (4P + 4LPE) / 8T, Max Turbo up to 4.5GHz, 8MB Intel® Smart Cache
AI PC Category
Copilot+ PC
NPU
Integrated Intel® AI Boost, up to 40 TOPS
Graphics
Integrated Intel® Arc™ Graphics 130V
Chipset
Intel® SoC Platform
Memory
16GB Soldered LPDDR5X-8533, MoP Memory
Memory Slots
Memory soldered to systemboard, no slots
Max Memory
16GB soldered LPDDR5X-8533 MoP, not upgradable
Storage
512GB SSD M.2 2280 PCIe® 4.0x4 NVMe® Opal 2.0
Max Storage Support
One drive, up to 1TB M.2 2280 SSD
Card Reader
No card reader
Optical
None
Audio Chip
High Definition (HD) Audio
Speakers
2Wx1
Power Supply
65W 89% Adapter
DESIGN
Keyboard
USB, Calliope, Black, English (US)
Mouse
USB Calliope Mouse, Black
Expansion Slots
Two M.2 slots (one for WLAN, one for SSD)
Case Color
Black
Stand
None
Adapter Cage
None
Toolless Chassis Screw
None
Mounting
None
Pen
Pen Not Supported
Form Factor
Tiny (1L)
Dimensions (WxDxH)
Tiny only (without rubber feet) | 179 x 182.9 x 34.5 mm (7.05 x 7.2 x 1.36 inches)
Tiny only (with rubber feet) | 179 x 182.9 x 36.5 mm (7.05 x 7.2 x 1.44 inches)
Weight
Around 1.1 kg (2.43 lbs)
CONNECTIVITY
WLAN + Bluetooth
MediaTek Wi-Fi® 7 MT7925, 802.11be 2x2 + BT5.4
WWAN
WWAN Not Supported
Ethernet
Integrated 100/1000M
Front Ports
1x USB-C® (USB 10Gbps / USB 3.2 Gen 2), with data transfer and 5V@3A charging
1x USB-A (USB 10Gbps / USB 3.2 Gen 2), with Always On and [email protected] charging
1x headphone / microphone combo jack (3.5mm)
Rear Ports
2x USB-A (Hi-Speed USB / USB 2.0), one supports Smart Power On
2x USB-A (USB 10Gbps / USB 3.2 Gen 2)
1x HDMI® 2.1 TMDS
1x DisplayPort™ 1.4b
1x Ethernet (GbE RJ-45)
1x Power connector
Optional Rear Ports (configured)
DP 1.2
Monitor Cable
None
SECURITY & PRIVACY
Security Chip
Discrete TPM 2.0, TCG certified, FIPS 140-2 certified
Physical Locks
Kensington Security Slot™, 3 x 7 mm
Kensington Cable Lock
None
Chassis Intrusion Switch
Chassis Intrusion Switch
SERVICE
Base Warranty
1-year, Onsite
Included Upgrade
None
CERTIFICATIONS
Green Certifications
ENERGY STAR® 9.0
RoHS compliant
TCO Certified, generation 10
SOFTWARE
Operating System
Windows® 11 Pro, English
Bundled Software
None
