Description

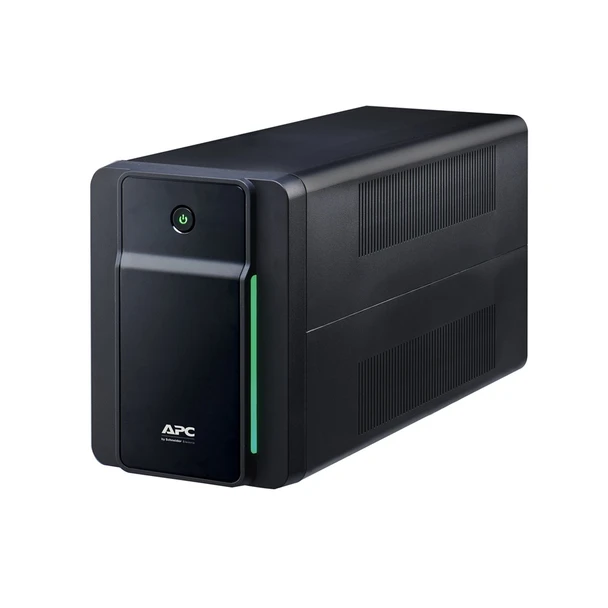

APC Back-UPS BX Series 1200VA (650W) Line Interactive With AVR
APC Back-UPS BX Series 1200VA (650W) Line Interactive with AVR, 230V Input/Output. 4x ANZ Sockets. IEC C14 Plug. 1.2m Power Cord. With Battery Backup & Surge Protector.
- APC Back-UPS 1200VA, 230V, AVR, New Zealand Sockets
- Battery Backup & Surge Protector for Electronics and Computers
- Includes: User manual
Output
Output power capacity
650 Watts/1.2kVA
Max Configurable Power (Watts)
650 Watts/1.2kVA
Nominal Output Voltage
230V
Output Frequency (sync to mains)
50/60Hz +/-1Hz Sync to mains
Topology
Line-interactive
Waveform type
Stepped approximation to a sinewave
Output Connections
(4) Australian
Transfer Time
6 ms typical
10ms maximum
Input
Nominal Input Voltage
230V
Input frequency
50/60Hz +/- 5Hz Auto-sensing
Input Connections
IEC 60320 C14
Cord Length
1.2 meters
Input voltage range for main operations
140V~300V
Number of Power Cords
1
Input Power Factor at Full Load
0.54
Batteries & Runtime
Battery type
Lead-acid battery
Typical recharge time
8 hour(s)
Expected Battery Life (years)
1 - 2
Batteries & Runtime
Battery Volt-Amp-Hour Capacity
108
Communications & Management
Control panel
LED Status display with online: on battery
Audible Alarm
Alarm when on battery: distinctive low battery alarm
Surge Protection and Filtering
Surge energy rating
273 Joules
Data Line Protection
RJ45 10/100/1000 Base-T Ethernet protection
Physical
Maximum Height
190MM, 19.0CM
Maximum Width
140MM, 14.0CM
Maximum Depth
390MM, 39.0CM
Net Weight
7.6KG
Shipping weight
8.6KG
Shipping Height
297MM, 29.7CM
Shipping Width
235MM, 23.5CM
Shipping Depth
495MM, 49.5CM
Colour
Black
SCC Codes
10731304410765
Environmental
Operating Temperature
0°C~40°C
Operating Relative Humidity
0%~95% (Non-condensing)
Operating Elevation
0~3000meters
Storage Temperature
-15°C~40°C
Storage Elevation
0~3000meters
Environmental
Audible noise
at 1 meter from surface of 40.0dBA unit
Protection Class
IP20
Conformance
Approvals
CB , CE, EN/IEC 62040-1, EN/IEC 62040-2
