Description

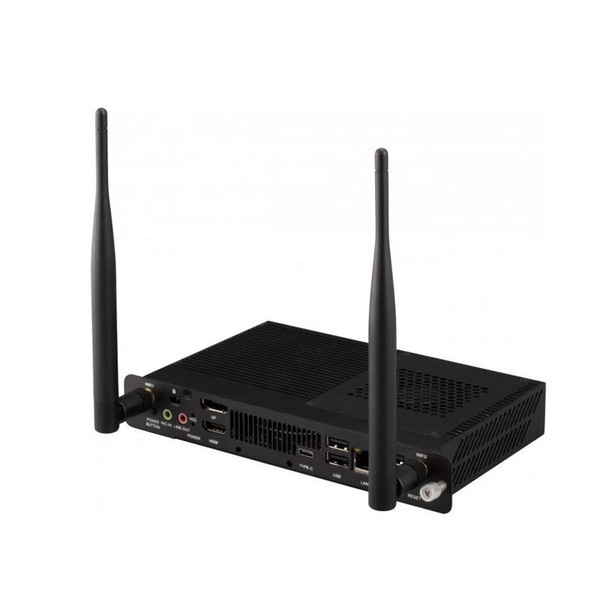

ViewSonic VPC25-W53-O1-1B Slot-In PC for ViewBoard Interactive & Commercial Displays
The VPC25-W53-O1-1B Slot-In PC features an Intel 10th Gen Comet Lake i5-10400T processor and 16GB DDR4 RAM, and is designed to enable you to take full advantage of your ViewSonic ViewBoard interactive and commercial displays. The PC module provides 256GB of SSD storage and offers dual-band Wi-Fi, Bluetooth 5.2, and connections including HDMI, DisplayPort, RJ45, and USB. It runs on Windows and comes bundled with Adobe Reader, myViewBoard, and FinchGuard software.
CPU Processor Type: Intel® Core™ i5-10400T
CPU Processor Speed: Base Frequency: 2.0GHz, Turbo: 3.6GHz
Cache: 12MB
Cores: 6
Threads: 12
Operating System: Windows® 10 Pro
SECURITY: Secure Boot
Media Player Type: Slot-in PC
Graphic Chipset: Intel UHD Graphics 630
RAM: 16GB
Memory Type: DDR4 2666
Ethernet LAN: 10/100/1000 Gigabit Ethernet
Wifi: Wireless AX200 WIFI 6
Bluetooth: Bluetooth 5.2
Storage Capacity: 256GB
Storage Type: M.2 NVMe
HDMI 2.0 Out: 1
Ethernet LAN (RJ45): 1
USB 2.0: 3
USB 3.0: 1
USB Type C: 1
Line Out: 1
3.5mm Mic In: 1
Voltage: DC in +12V ~ +19V @ 3.42A, 65W
Temperature: 23-113°F (-5-45º C)
Humidity (non-condensing): 20-80%
Physical (in.): 8.0 x 4.7 x 1.2
Packaging (in.): 10.0 x 7.7 x 3.0
Physical (mm): 202.0 x 119.0 x 30.0
Packaging (mm): 254.0 x 196.0 x 77.0
Net (lbs): 2.2
Gross (lbs): 2.7
Net (kg): 1.0
Gross (kg): 1.2
Recycle/Disposal: Please dispose of in accordance with local, state or federal laws.
Regulations: cTUVus, FCC-B w/ ICES003, FCC ID+SDOC, CA IC, IC VOC, NOM, COFETEL, CE EMC, CE RED, CE LVD, CB, RoHS, REACH, WEEE, BSMI, NCC, BIS, WPC, RCM, MIC, VCCI, VNTA, CCC, SRRC
Package Contents: VPC25-W53-O1-1B, Quick start guide
Warranty: One-year limited warranty
